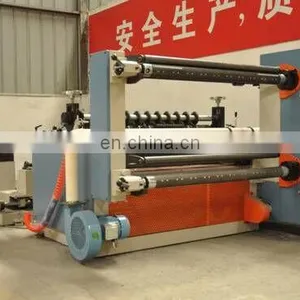

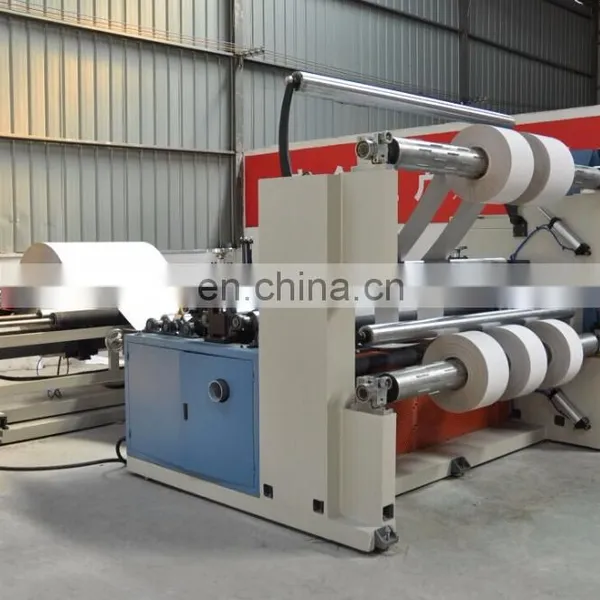

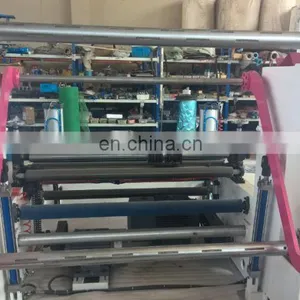

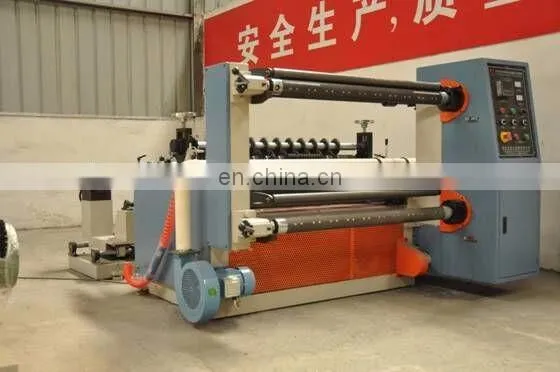

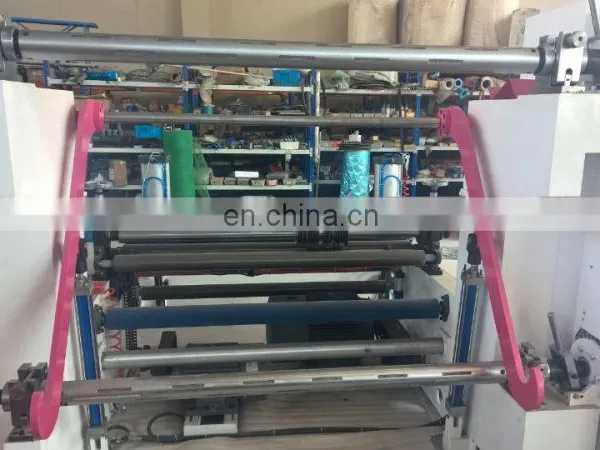

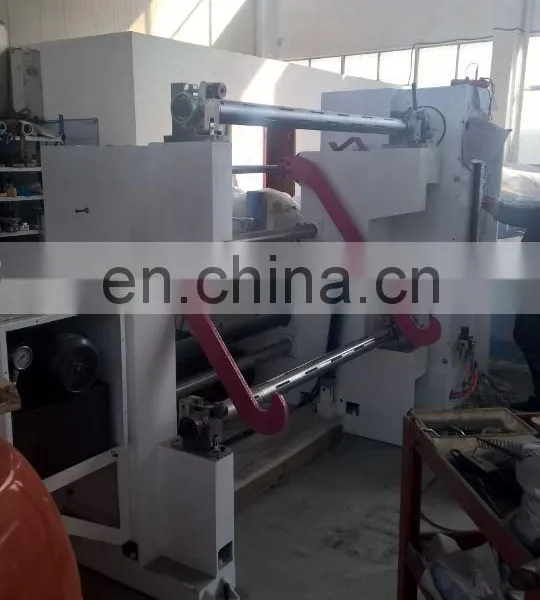

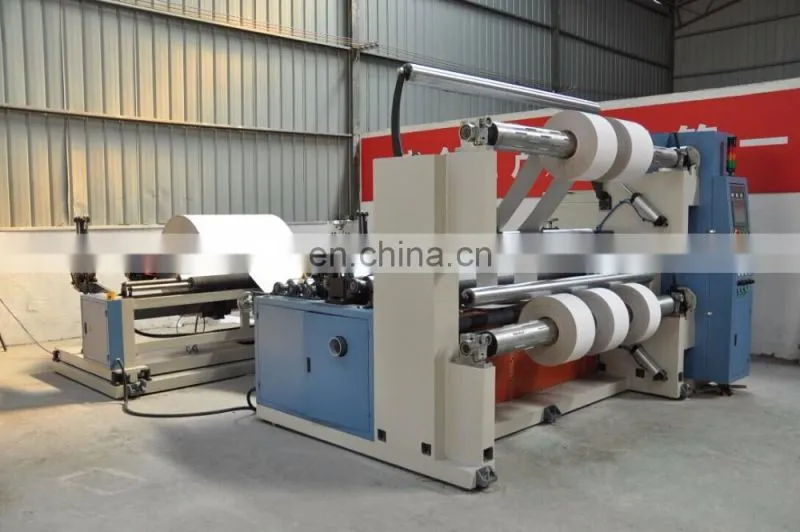

High Equipped PLC Control Slitter Rewinder Machine

High Equipped PLC Control Slitter Rewinder Machine









This slitting machine can slit large format material, widely used to slit paper, film, metal foil, OPP, PP, PE, PVC, fabric, leather, etc. For adhesive material, it can laminate two material firstly, then slit. This is a multifunctional and practical machine.















 There are two models for you to choose:



Model	HX-1300	HX-1600
Max feeding Width	1300mm	1600mm
Main Engineer Power	6kw	6kw
Speed	80m/min	80m/min
Size	2400*2000*1300mm	2400*2300*1600mm
Weight	1200kg	1500kg
Unwinding Diameter	600mm	800mm
Winding Diameter	450mm	450mm
Precision	±0.1mm	±0.1mm
Power	380v 50hz	380v 50hz





Machine Features:



1. Max slitting width: 1300mm;
2. Min slitting width: 8-25mm;
3. Material thickness range: 0.05-3mm;
4. Tolerance: 0.2mm; precision: 0.1mm;

5. This  thermal paper slitting machine is of high precision and sensitivity, with inflatable bearings to feed and rewind material;

6.  An Imported magnetic powder clutch is adopted to control tension;

7. An Improted air sensitive detector is applied to unwinding deviation;

8. Fully automatic hydraulic corrector;

9. This machine can achieve automatic detection, rectification and counting;

10. This machine is accurate and fast, and it is easy to operate and maintain.

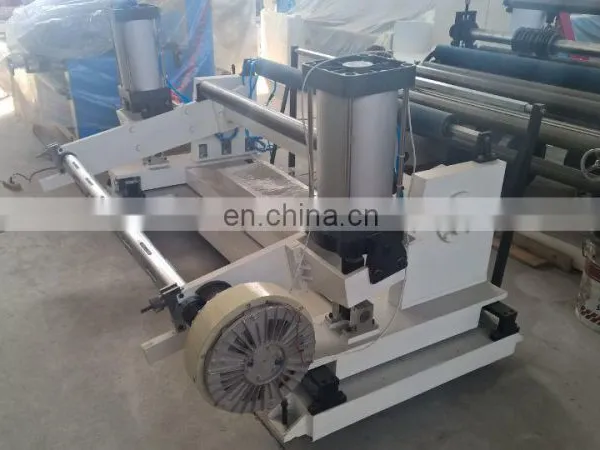

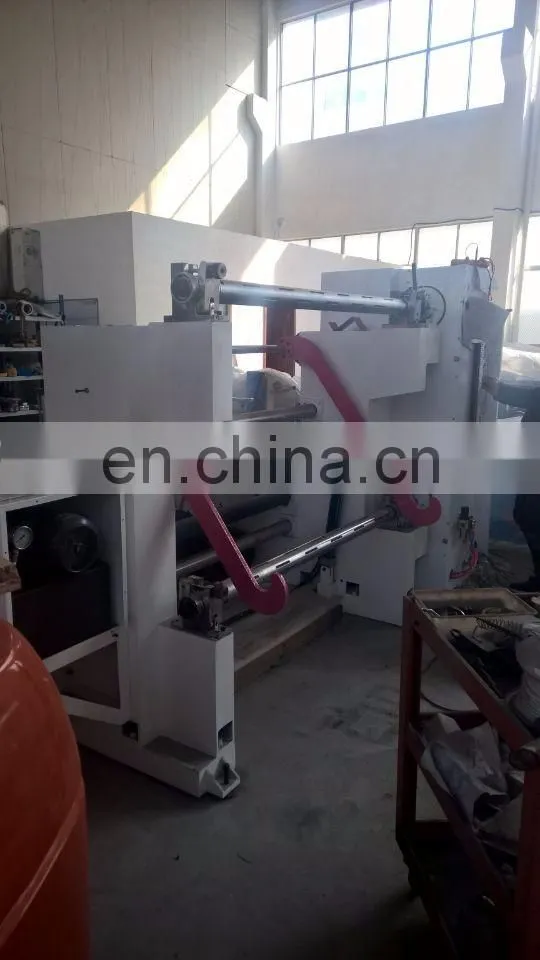

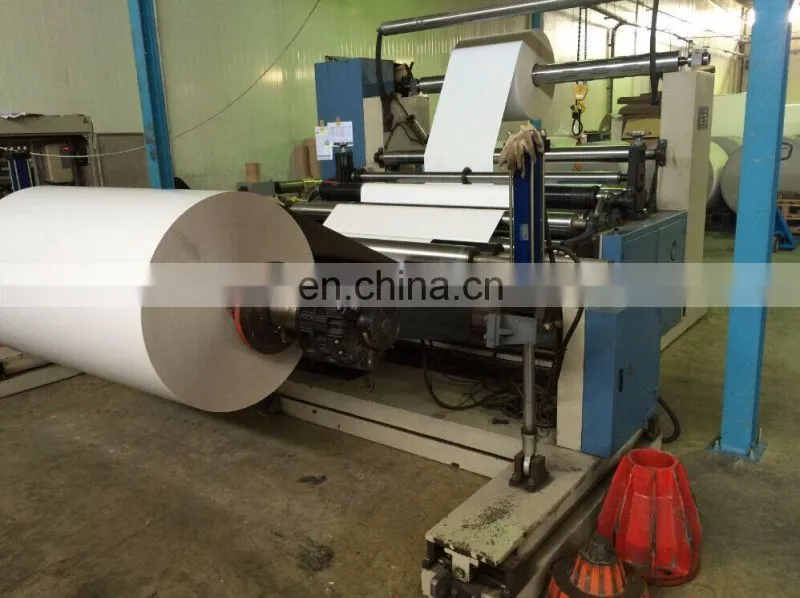

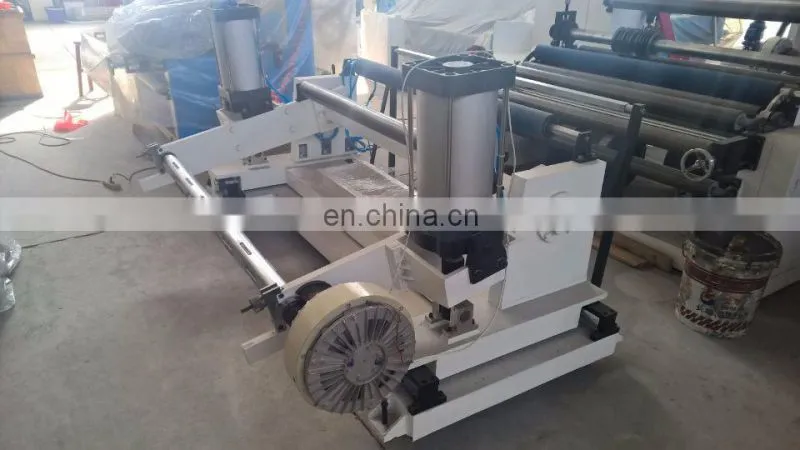

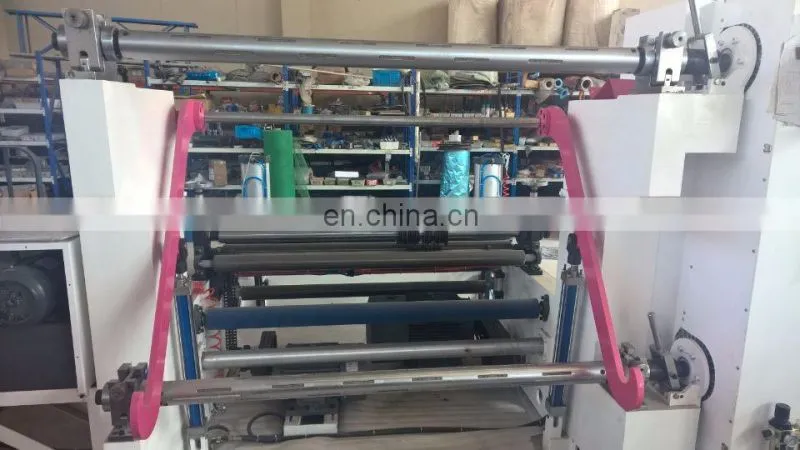

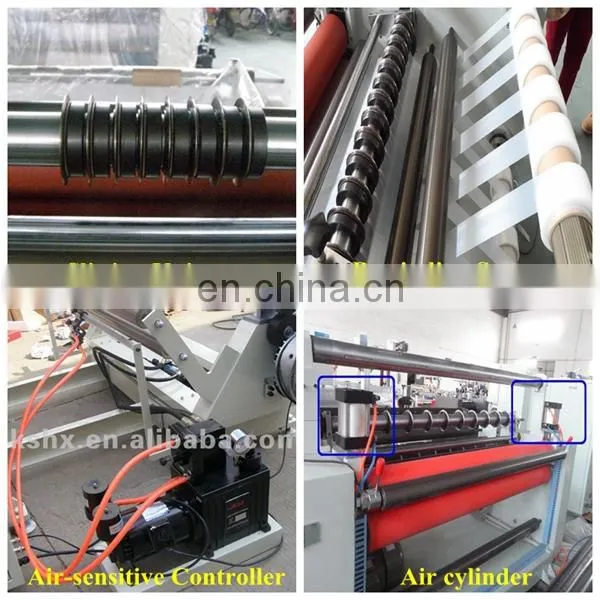

Details of this slitting machine :









Configuration List:







Frequency convertor	DELTA
Unwinding shaft	1piece 3inch inflatable shaft
Unwinding shaft magnetic tension controller	1 set, 10kg magnetic brake
Rectification system	Automatic oil pressure rectification device, made in Taiwan
Laminating roll	2 pieces, pneumatic lifting/ pressing down
Slitting system	8 pairs
Metering device	1piece, photoelectric meter counter
Draining device	1piece, draining device of blower
Rewinding shaft	2 pieces 3inch inflatable shaft
Rewinding shaft magnetic tension controller	2pcs, 5kg magnetic brake







Options:



1. 5mm slitting knives



2. 8mm slitting knives





Packing:











Customers Visit:

5. International certification:







1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer


2. Q: Where is your factory located in ? How can I visit there?
A: Our factory is located in Kunshan which is very near from Shanghai, and our detailed address is: Factory 9, No. 157, Wulian Road, Yushan Town,
 Kunshan, Suzhou, Jiangsu, China. If you fly to Shanghai hongqiao airport or Pudong airport, we can pick you up by car from there. We welcome all our clients, home and abroad, to visit us.


3. Q: what are your main products?
A: Our main products are belt cutting machines, slitting machines, sheeting machines, laminating machines and die cutting machines.

4.Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, die cut raw materials can use our machines.

5.Q: How to control the quality in your factory ?
A: Quality is priority.  We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE & ISO Certification

6. Q:If there are no machines available from your list, could  we customize  non-standard machines  from you ?
A: Yes, we have our own professional design engineers, and can customize products according to your requirements.
