Automatic Plc Control Slitting Rewinding Machine
- 1000 per Month
- T/T Credit Card
- High Equipped PLC Control Slitter Rewinder Machine
- PLC Control 1300MM Width Slitting Rewinding Machine
- Large cores PP Film Slitting Machine
- high speed thermal paper roll cutting machine
- Thermal-POS Thermal Paper Jumbo Roll Rolling Slitting Rewinding Toilet Tissue Paper Cutting Making Machine
- automatic epe eps foam strip cutting machine
Product Description

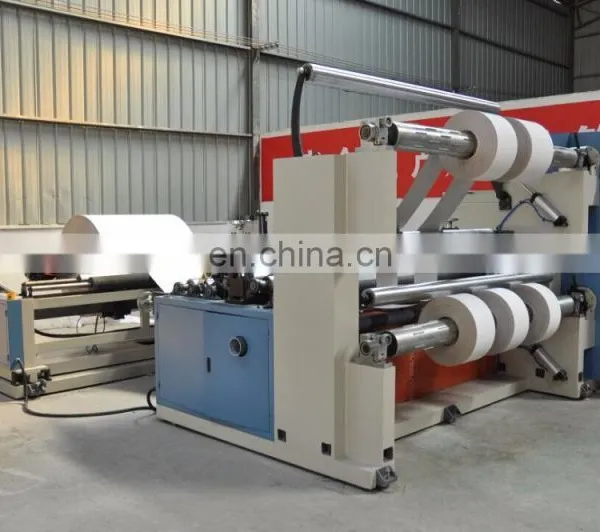

Automatic Plc Control Slitting Rewinding Machine
This slitting machine can slit large format material, widely used to slit paper, film, metal foil, OPP, PP, PE, PVC, fabric, leather, etc. For adhesive material, it can laminate two material firstly, then slit. This is a multifunctional and practical machine.
If you are not sure if your material can be slitted by this machine, plz consult us and provide following information:
There are two models for you to choose:
Model |
HX-1300 |
HX-1600 |
Max feeding Width |
1300mm |
1600mm |
Main Engineer Power |
6kw |
6kw |
Speed |
80m/min |
80m/min |
Size |
2400*2000*1300mm |
2400*2300*1600mm |
Weight |
1200kg |
1500kg |
Unwinding Diameter |
600mm |
800mm |
Winding Diameter |
450mm |
450mm |
Precision |
±0.1mm |
±0.1mm |
Power |
380v 50hz |
380v 50hz |
Machine Features:
1. Max slitting width: 1300mm;
2. Min slitting width: 8-25mm;
3. Material thickness range: 0.05-3mm;
4. Tolerance: 0.2mm; precision: 0.1mm;
5. This thermal paper slitting machine is of high precision and sensitivity, with inflatable bearings to feed and rewind material;
6. An Imported magnetic powder clutch is adopted to control tension;
7. An Improted air sensitive detector is applied to unwinding deviation;
8. Fully automatic hydraulic corrector;
9. This machine can achieve automatic detection, rectification and counting;
10. This machine is accurate and fast, and it is easy to operate and maintain.
Details of this slitting machine :
Configuration List:
Frequency convertor |
DELTA |
Unwinding shaft |
1piece 3inch inflatable shaft |
Unwinding shaft magnetic tension controller |
1 set, 10kg magnetic brake |
Rectification system |
Automatic oil pressure rectification device, made in Taiwan |
Laminating roll |
2 pieces, pneumatic lifting/ pressing down |
Slitting system |
8 pairs |
Metering device |
1piece, photoelectric meter counter |
Draining device |
1piece, draining device of blower |
Rewinding shaft |
2 pieces 3inch inflatable shaft |
Rewinding shaft magnetic tension controller |
2pcs, 5kg magnetic brake |
Options:
1. 5mm slitting knives
2. 8mm slitting knives
1. We are a factory, and the price is favorable.
2. We have strict QC system.
3. We offer a free after-sales service for one year.
4. Our engineers are available to service machinery overseas.
5. Our machines have been sold to over 40 countries.
