White Anti-static Epe Foam Laminating Slitting Rewinding Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Overview

Optical material slitting machine, laminating, slitting and rewinding two materials. With hydraulic loading. Specially used for the slitting of PET, OCA, AB glue, PvC, release film, brightness enhancement film, diffusion film and reflective film. The tension control is uniform and adjustable, which meets the requirements of rewinding and unwinding, ensuring consistent material tightness, frequency conversion speed regulation, maintaining acceleration and smooth operation, good anti-scratch function,ensuring no mechanical scratches designed, automatic correction of ultrasonic servo motor, ensuring There is no left-to-right drift in product receipts.

Features:
◎Laminating function
◎EPC (edge positioning control):Unit: Photo Cell*2pcs
◎Waste discharge function
◎Magnetic brake and clutch
◎Length counting function, automatically stop after it reaches the length you set.
◎2 rewinding inflatable shafts, easy for unload materials.

Model	HX-1300FQ
Maximum feed diameter	800mm
accessories maximum	400mm
slitting width	1mm-1250mm
Maximum cutting diameter	400mm
winding inner diameter	3 inches
Unwinding inner diameter	3 inches/6 inches

Products Description

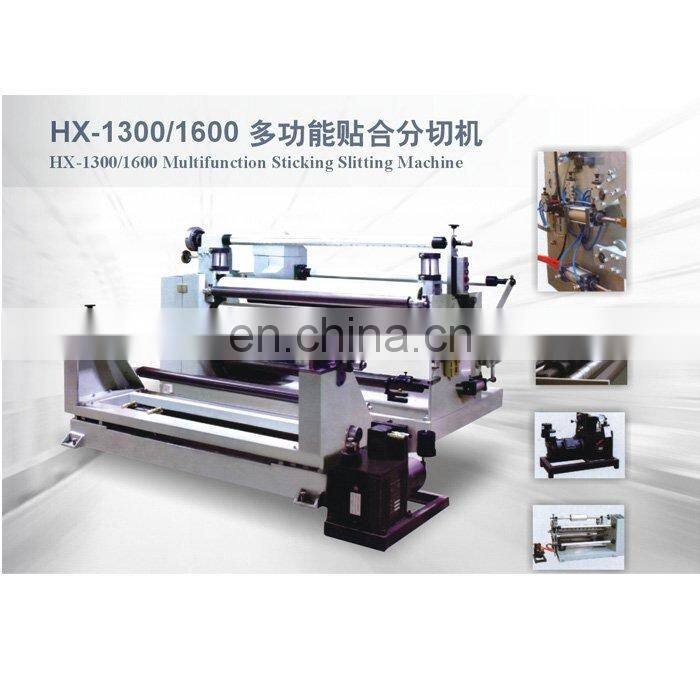

Multifunctional laminating and slitting machine

Factory direct support customization

Six core advantages

Direct deal Time guarantee Experience guarantee

Material guarantee Price guarantee After sale guarantee

Science and technology Manufacturing quality assurance

We strive to develop machinery Only to provide you with high quality products

It's not the most expensive, but it's easy to use

It is suitable for many industries, with wide range of uses, easy to use and customized on demand

Non standard customization

Fast delivery

Exquisite materials

Born for efficiency

Convenient operation and high efficiency

We give you more than just It's a laminating machine

Because quality is more reliable.

The strictness of every detail is for your convenience
01 Scope of application

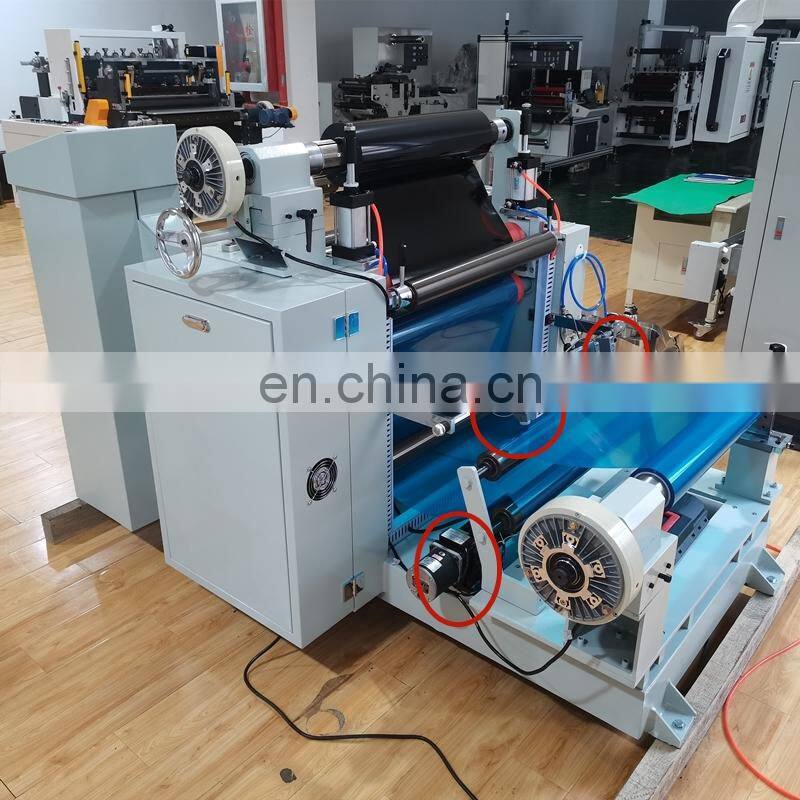

It has photoelectric tracking and rectifying system, and magnetic powder clutch is used to control the tension
02 reasonable design

The design of the machine conforms to the principle of ergonomics

03 Easy to operate

Variable frequency speed regulation of the main machine, the up and down movement of the rubber roller is
controlled by the air cylinder

04 Functional scope

It can be fitted and cut at the same time, or it can be fitted or cut
separately

Product Paramenters

Model	HX-1300FQ
Max Feeding Width	1250mm
Main Engineer Power	6kw
Speed	100m/min
Size	2400x2000x1300mm
Weight	1500kg
Rewinding Diameter	600mm
Winding Diameter	450mm
Precision	±0.1mm
Power	220V 50HZ

1	The max width: 1300mm
2	Tolerence: 0.05mm, Precision: 0.1mm
3	Material thickness: 0.1mm-1mm
4	Kiss cut or cut through available
5	Under CE and ISO Certifications
6	Warranty for machine: 12months
7	Delivery time: 30days
8	Cut through for standard machine
9	Kiss cut is for optional

Product configuration

stainless steel slitting knife

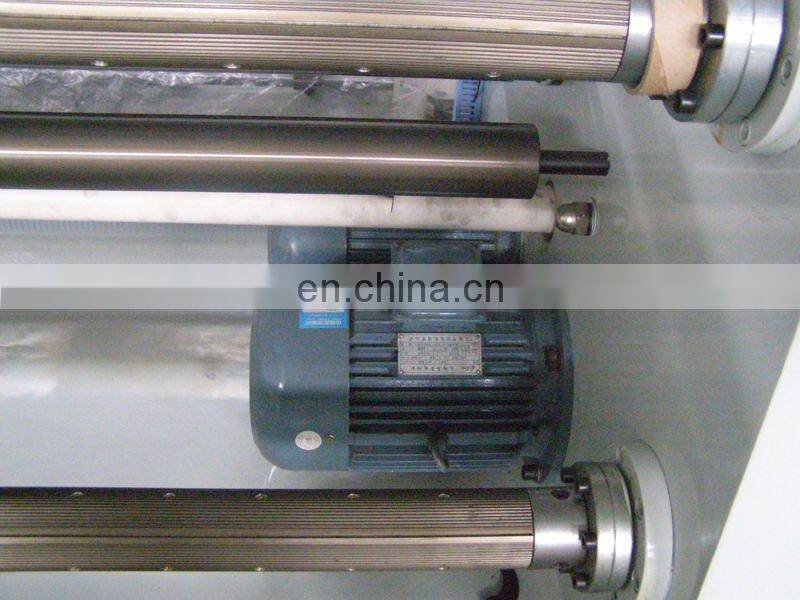

motor

Photoelectric tracking and correcting system

Provide customized service according to demand

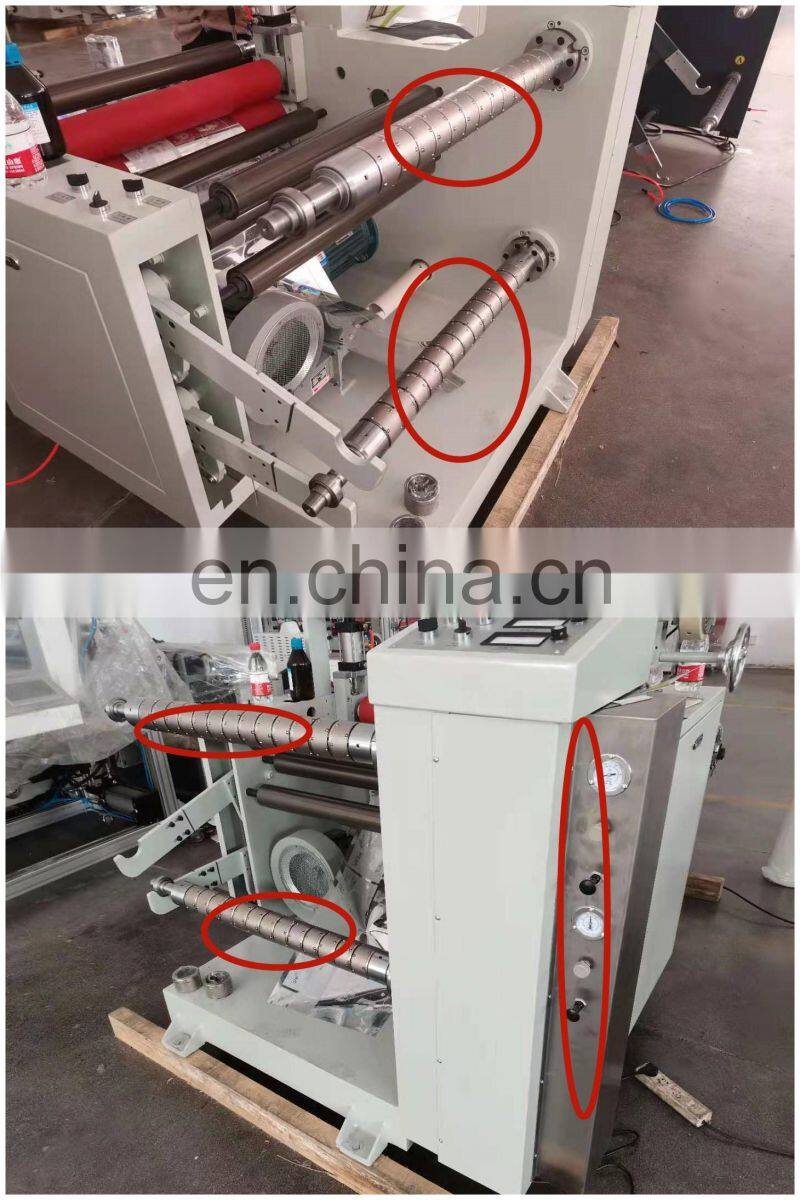

Machine refit slip shaft

Product packaging

Wooden case for export

.You can also choose vacuum packaging

Our company

We are a team of industry professionals with strong backgrounds in cutting, die cutting,slitting, laminating and rolling. Other related machines in our fields can be customized based on your specific requirements.
Kunshan Hexin Precise Machinery is located in Kunshan city,Jiangsu province. We are near Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train. Established in 2007, we have been dedicated on converting machines which are used before and after printing for over 10 years.
Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers reliable products,perfect service.Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials,insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.

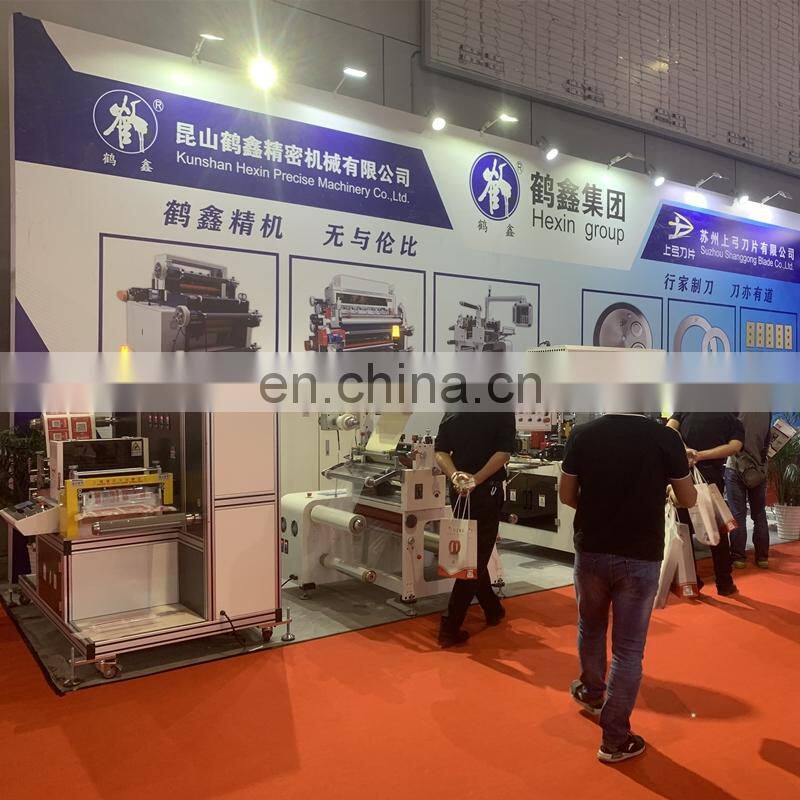

Exhibition

2020 THE 8th ALL IN PRINT CHINA
