Carbide Circular Knife Round Blade for Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1991
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customized Automatic Adhesive Waxed Woven Filter Wool Cutting MachineNegotiableMOQ: 1 -
Automatic Electric Pneumatic Cold Cutting MachineNegotiableMOQ: 1
-
Factory Price Thick Material Nylon Pneumatic Sealing Hot Cutting MachineNegotiableMOQ: 1
-
PLC Control Pneumatic Flexible Flat Cable Cutting MachineNegotiableMOQ: 1
-
Auto Pneumatic Elastic Belt Cutting MachineNegotiableMOQ: 1
Product Overview

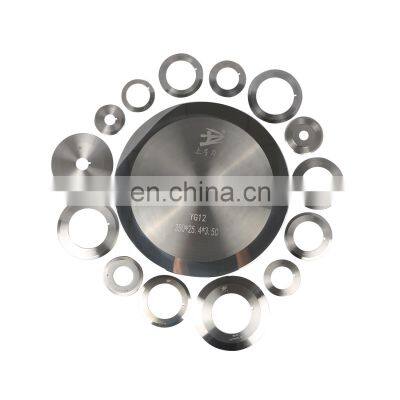

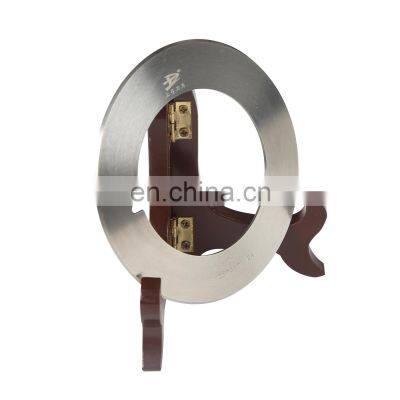

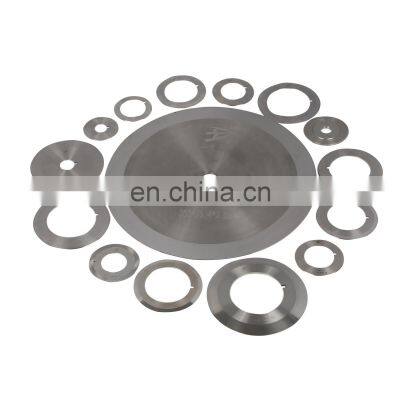

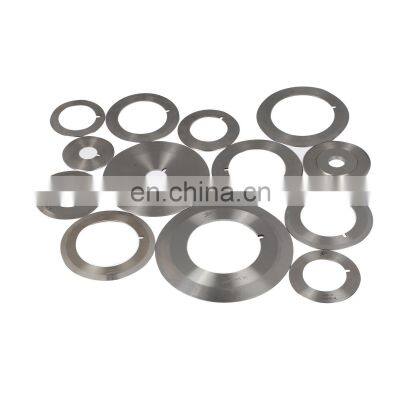

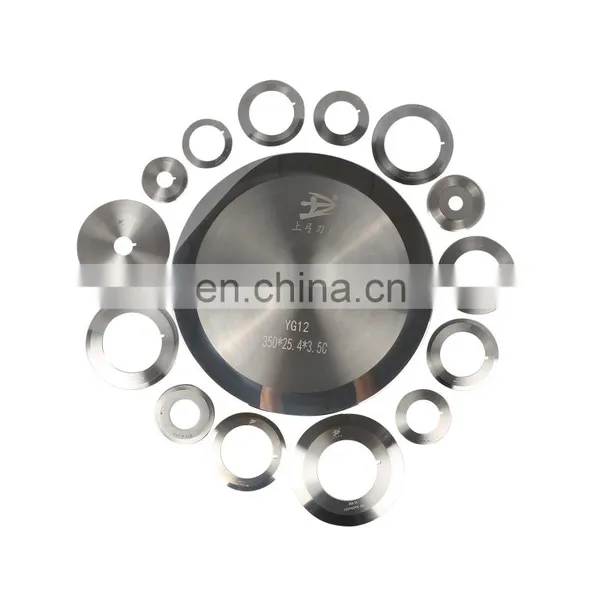

carbide circular knife round blade for cutting machine
Specializing in the production of various types of large round knives, slit cuts, cutters, aluminum foil, non-woven cutting knife, disc flying cut, cutting blade, slitting machine blade, sawtooth knife, flat round The knife, lower knife, knife seats, etc. Products are sold to major China major steel, electronics, plastic, papermaking aluminum foil, medicinal materials, apparel, food, gardens, rubber and plastics, and various packaging industries.
Be The slit cut blade is mainly used in dividing cutting machine production lines. The company has professional production experience, high-quality imported steel, manufacturing, and manufactured by vacuum heat treatment. It has extremely high wear resistance and sizes, cutting strict detection; German vacuum quenching technology, uniform heat treatment, blade hardness in HRC58-65, uses CNC machining equipment to ensure accuracy, and the blade precision is 0.01-0.02 mm. The plane is grinded with super fine grinding machine and is strictly enlarged to ensure that the blade tolerance is within 0.03 mm. Application in various kraft paper, corrugated, rice paper, thermal paper, color spray, decorative original paper, printed original paper, copper foil, aluminum foil, and electrode cutting processing. It has the advantages of neutral and smooth, no wool burrs, small blade replacement, long service life, high cost performance. Be
The blade is manufactured in high-quality imported steel, generally: 65MN, 9CRSI, SKD-11, SKH- 91, SKH-51, CR12MOV, W6MO5CR4V2, SKH-51, W18CR4V, etc. suitable for high-quality steel, long service life, cost performance High, is an ideal blade that companies reducing division costs and high score quality.
Splitting machine standard machine is divided into:
The company is complete, non-standard specifications can be customized and produced according to the paper provided by customers, and can be customized according to the product drawings, samples, specifications and blade materials, HRC values, etc.
Welcome new and old customers to consult and negotiate order!
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Material |
Tungsten Carbide(YG12),SKD-51,W6Mo5Cr4V2,D2 and so on |
Advantage |
Burr-free, Widely Applied |
Thickness |
0.8-1.5mm, Customized thickness available |
Inner diameter |
25.4, 32, 38mm |
Outer diameter |
OD160 - 610mm, customized size is available |
Knife edge |
45 °,could be adjusted according to your requirement |
Design |
single edge and double edge are available |
Appliacation |
Paper, film, foam, rubber,foil, graphite and so on |
Specification |
Outer diameter |
Inner diameter |
Thickness |
Knife edge type |
Material |
180x25.4x2.0 |
Φ180 |
Φ25.4 |
2.0T |
Single side edge |
YG12 |
200x25.4x2.0 |
Φ200 |
Φ25.4 |
2.0T |
Double side edge |
SKH-51 |
250x25.4x2.5 |
Φ250 |
Φ25.4 |
2.5T |
Sliced edge |
W6Mo5Cr4V2 |
250x25.4x3.0 |
Φ250 |
Φ25.4 |
3.0T |
D2 |
|
300x25.4x3.0 |
Φ300 |
Φ25.4 |
3.0T |
||
300x25.4x3.5 |
Φ300 |
Φ25.4 |
3.5T |
||
350x25.4x3.5 |
Φ350 |
Φ25.4 |
3.5T |
||
400x25.4x4.0 |
Φ400 |
Φ25.4 |
4.0T |
||
450x25.4x4.5 |
Φ450 |
Φ25.4 |
4.5T |
||
500x25.4x5.0 |
Φ500 |
Φ25.4 |
5.0T |
