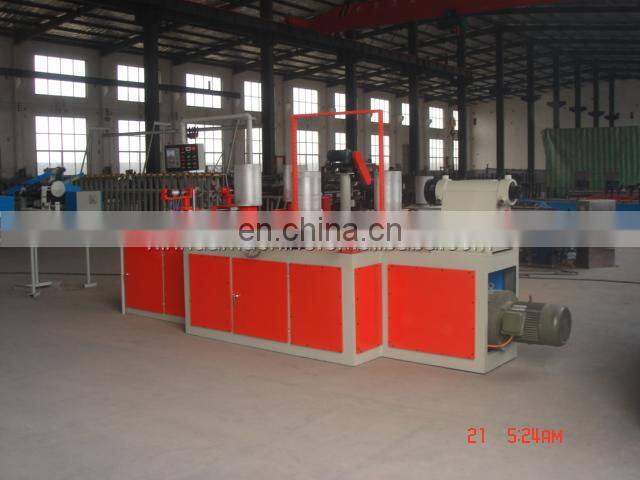

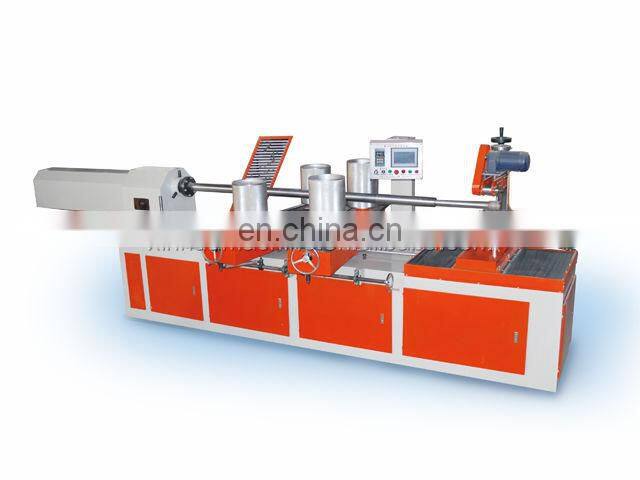

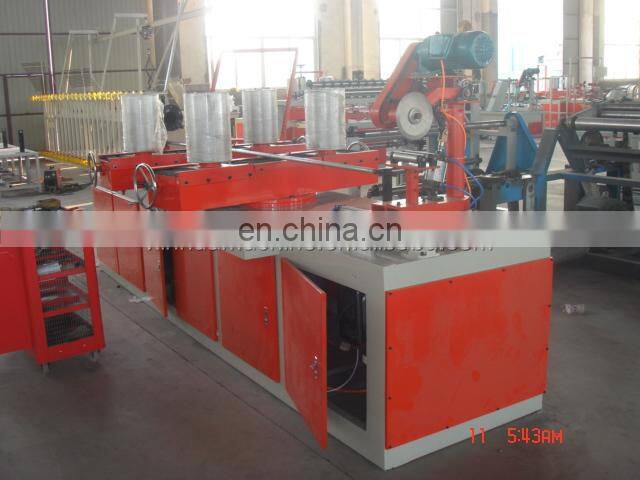

TSG-200 Four noses digital control Automatic Paper Core Making Machine

200 Type Automatic Paper Core Making Machine

Technical parameters(above B grade yarn tube paper)

1 Inside Diameter       Φ50-Φ200

2 Thickness            2-15

3 Speed            15m/min(Due to the difference of paper pipe specifications and paper      quality,Speed is different)

4 Cut pipe length       1-4m

5 Motor power       Main motor 11KW   Cutting 0.75KW

6 Control mode       Frequency adjust speed

7 Drive type         Reducer chain transmission

8 Cut mode         NC automatic tracking cutting

9 Cutting Tolerance        ±2

10 Leather belt         Annular canvas belt(2 sets)

11 Reel pipe axle        Φ76 (1set)

12 Upper glue frame

  spray-type up glue frame(standard

  configuration 25 layers of paper)

  Vapour-pressure type glue frame(add 3000 USD)

13 Upper paper frame

 stationary type hoisting upper paper frame(standard configuration 25 layers of paper)

  movable type hoisting upper paper frame(add 3000 USD)

14 Bottom paper frame

  wheel type bottom paper frame(standard configuration)

  Cloth wax machine type bottom paper frame

  Cloth wax printing type bottom paper frame

15 Electrical System:Main motor is made of shanghai and power is 11 KW,cutting part i  s AnChuan (Japan) servo motor,PLC is Ohm dragon (Japan),touch screen is Whalen  ong (Taiwan),Circuit breaker is shilin brand(Taiwan),relay, button, scram is Schneider    electric (France).

1.     We need to test the machine working condition before delivery to customer country.

2.     If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.

3.     Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee.

If any questions, send me email by 24 hours, we also help you solve these problems.
