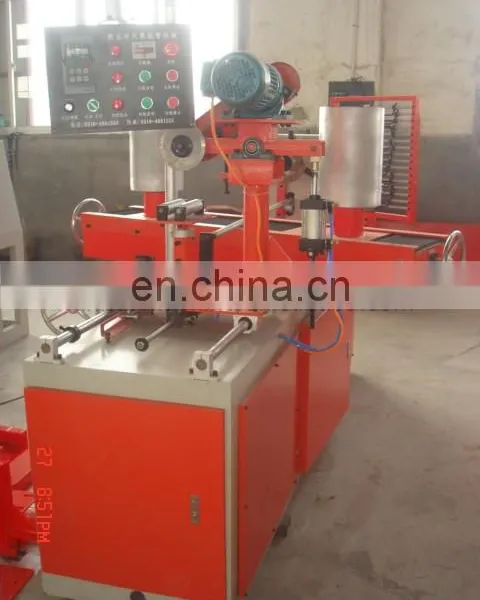

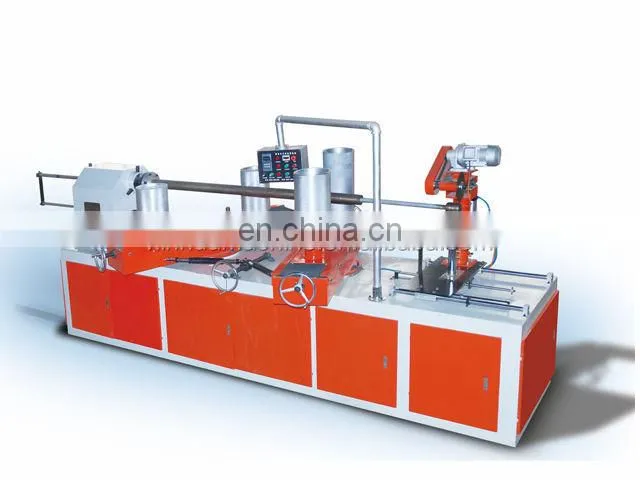

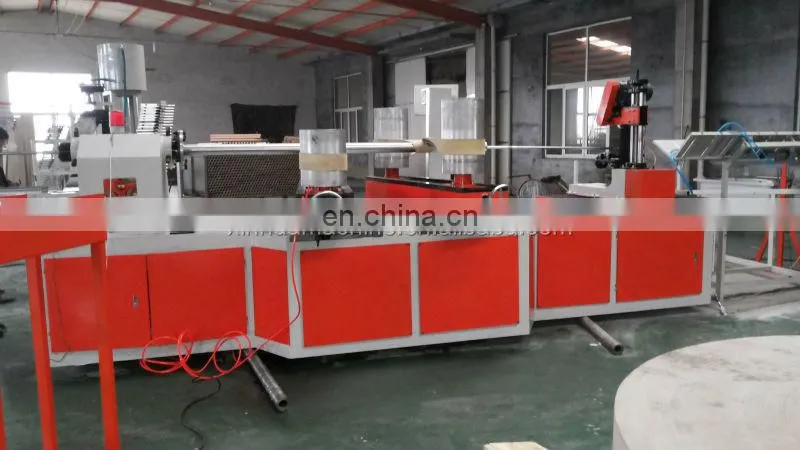

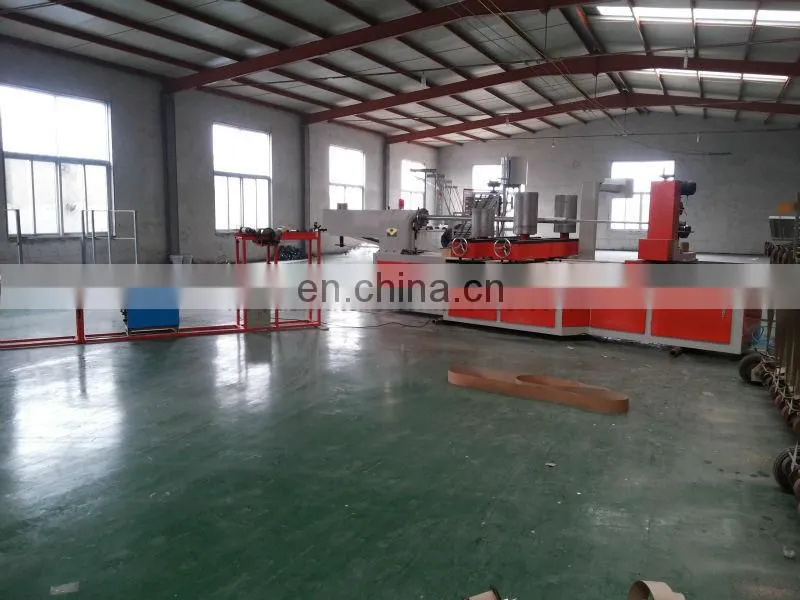

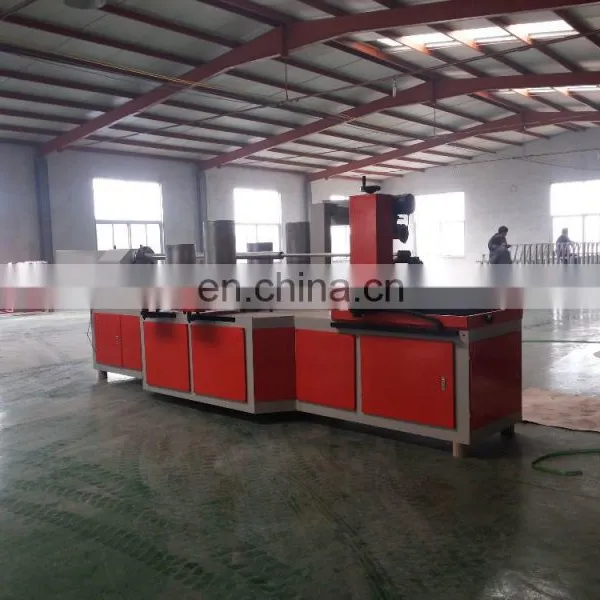

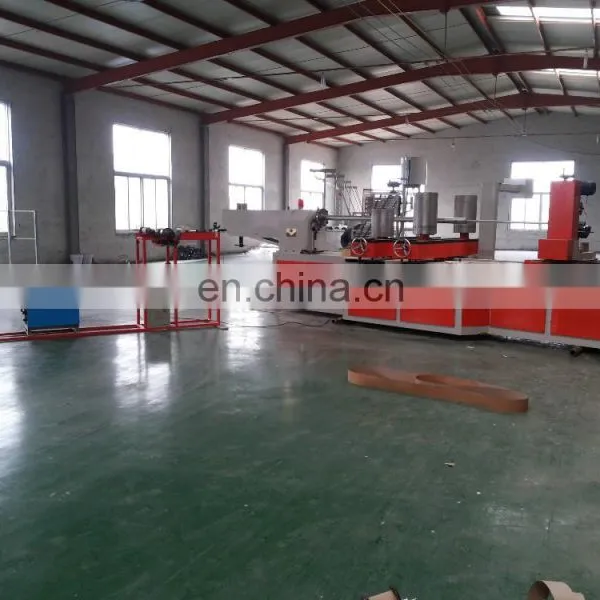

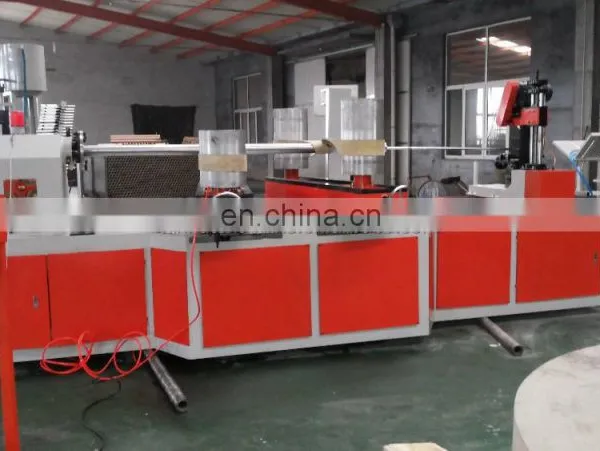

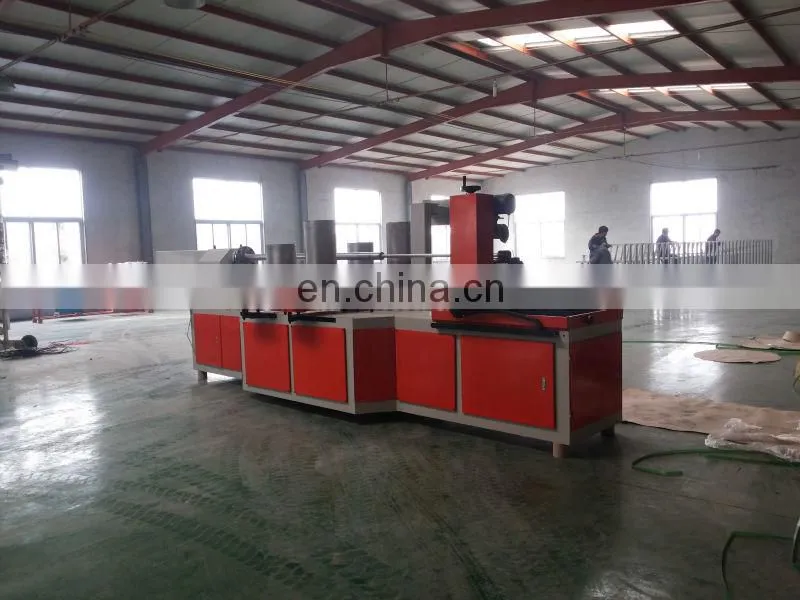

300 Type Automatic Paper Core Making Machine

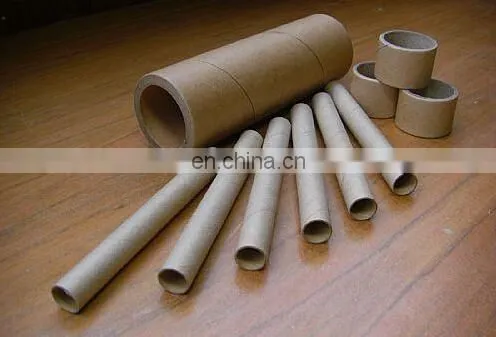

Technical parameters(above B grade yarn tube paper)
1 Inside Diameter Φ50-Φ300
2 Thickness 2-15
3 Speed 15m/min(Due to the difference of paper pipe specifications and paper quality,Speed is different)
4 Cut pipe length 1-4m
5 Motor power Main motor 11KW Cutting 0.75KW
6 Control mode Frequency adjust speed
7 Drive type Reducer chain transmission
8 Cut mode NC automatic tracking cutting
9 Cutting Tolerance ±2
10 Leather belt Annular canvas belt(2 sets)
11 Reel pipe axle Φ76 (1set)
12 Upper glue frame
spray-type up glue frame(standard
configuration 25 layers of paper)
Vapour-pressure type glue frame(add 3000 USD)
13 Upper paper frame
stationary type hoisting upper paper frame(standard configuration 25 layers of paper)
movable type hoisting upper paper frame(add 3000 USD)
14 Bottom paper frame
wheel type bottom paper frame(standard configuration)
Cloth wax machine type bottom paper frame(add 300 USD)
Cloth wax printing type bottom paper frame(add 1000 USD)
15 Electrical System:Main motor is made of shanghai and power is 11 KW,cutting part is AnChuan (Japan) servo motor,PLC is Ohm dragon (Japan),touch screen is Whalen tong (Taiwan),Circuit breaker is shilin brand(Taiwan),relay, button, scram is Schneider electric (France)
LCL : Normal package is wooden box (size : L×W×H). Wooden box will be fumigated . We use strong export stander wooden box pack all machine ,in this case ,machine can be protected very well.
FCL : Machine is to heavy or big , we can choose full container loading . we use PE Film packing then loading to container .
Others : According to customer’s special request .
Q: Are you manufacturer or trading company ? Do you have Import &Export right ?
A: we are manufacturer with more than 30 years experience . we have Imp & Exp license ,we can export machines to you directly .
Q: where is your factory ? How can I visit there ?
A: our factory is located in Dong guang County ,Cang Zhou city , He bei province ,China . It is 2 hours from JINAN international airport by car and 1 hour from Cang Zhou high-speed train station.
Q: what is the payment terms ?
A: (1) TT, 30% as deposit, 70% balance before loading
(2)100% irrevocable L/C at sight .
Q: How about after-sales service process? Can I get spare part easily?
A:when problem occur when machine running , contact our sale manger at once, we will solve problem as soon as possible .we will follow below 3 items.
1. Small parts send by DHL at the top speed. (like thin blade, PLC etc)
2. Middle parts by air at the top speed. (like cut off knife)
3. Big parts by ship at the top speed. (like corrugated roll)
Q: what certificated do you have ?
A: We have CE and ISO certificates .
