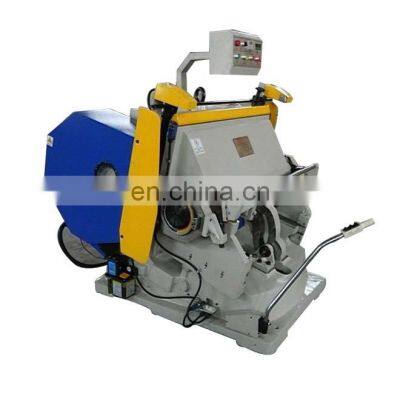

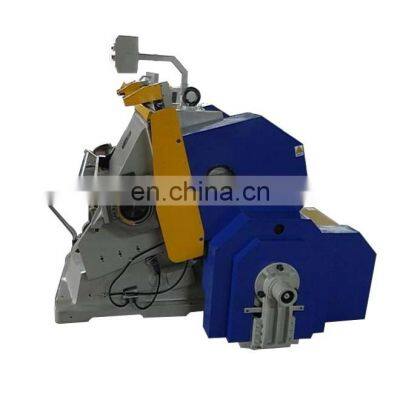

High Quality Corrugated Cardboard Creasing Die Cutting Machine
Use and characteristics:
>Sliding bearing are make of high quality alloy copper , have the effective of anit-friection and shake reducing.
>Fly wheel is with big moment of force , and large pressure.
>High strength due to one piece casting by using top-ranking material for machine body.
>Single plate electromagnetic clutch is sensitive and reliable.
>With the function of single , continuous and opening dwell , and the dwell time is adjustment.
>The safety system is reliable.
|
Model |
Inner chase size |
Speed |
Max.embossing length |
Motor power |
Machine weight |
Overall dimensions |
|
PYG401C |
750*520mm |
28±2 |
<15mm |
2.2kw |
2000kg |
1260*1350*1280mm |
|
PYG203D |
930*670mm |
23±2 |
<25mm |
3.0 kw |
3000kg |
1670*1670*1630mm |
|
ML-1100 |
1100*800mm |
20±2 |
<32mm |
4.0 kw |
4500kg |
2030*1870*1800mm |
|
ML-1200 |
1200*820mm |
15±2 |
<35mm |
5.5 kw |
4800kg |
1920*2140*1920mm |
|
ML-1300 |
1300*920mm |
15±2 |
<45mm |
5.5 kw |
6000kg |
2000*2140*2000mm |
|
ML-1400 |
1400*1000mm |
15±2 |
<45mm |
7.5 kw |
6800kg |
2010*2400*1930mm |
|
ML-1500 |
1500*1050mm |
14±2 |
<45mm |
7.5 kw |
7500kg |
2010*2400*1930mm |
|
ML-1600 |
1600*1250mm |
16±2 |
<50mm |
11 kw |
11000kg |
2170*2560*2230mm |
|
ML-1800 |
1800*1300mm |
16±2 |
<62mm |
15 kw |
13500kg |
2240*2800*2130mm |
