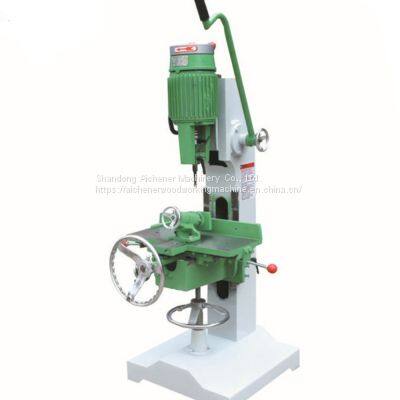

MZ1610 Woodworking Chain Mortiser Machine Square Hole Drilling Machine Chisel Mortising Machine

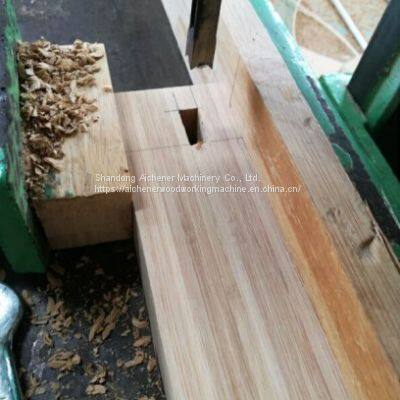

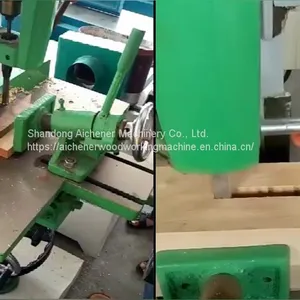

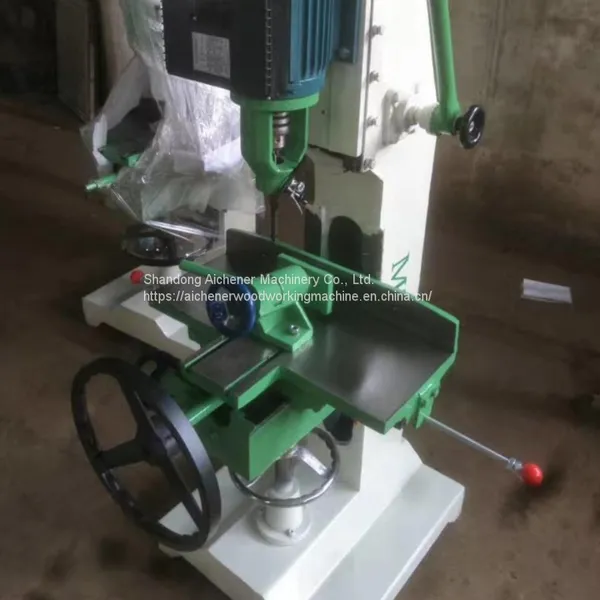

The vertical single-axis mortise machine is mainly used for wood drilling and opening of the eye. It is a woodworking machine that retains the traditional furniture manufacturing process and can be mechanized efficiently. This machine can easily open a variety of round/elliptical/square blinks. It is an indispensable machine for solid wood furniture and classical furniture making.
Parameter of MZ1610 Woodworking Chain Mortiser Machine Square Hole Drilling Machine Chisel Mortising Machine
Product name |
Vertical single axis mortise machine |
Model |
MZ1610 |
Max. Mortise size |
200*25.4mm |
Max. Mortise depth |
100mm |
Max. Mortise width |
6~120mm |
Spindle speed |
2840r/min |
Motor power |
2.2kw |
Table tilt angle |
±30° |
Type |
Manual control |
Worktable lifting stroke |
400~450mm |
Worktable longitudinal stroke |
150mm |
Drill shank diameter |
1~13mm |
Dimension |
600*860*1470mm |
Weight |
260kg |
Feature of MZ1610 Woodworking Chain Mortiser Machine Square Hole Drilling Machine Chisel Mortising Machine

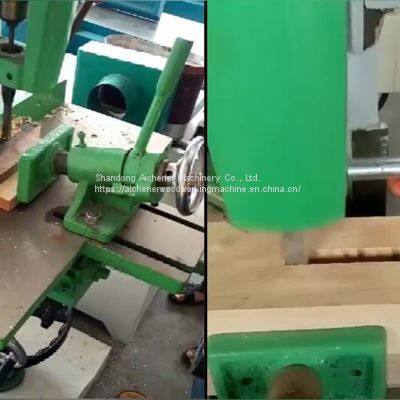

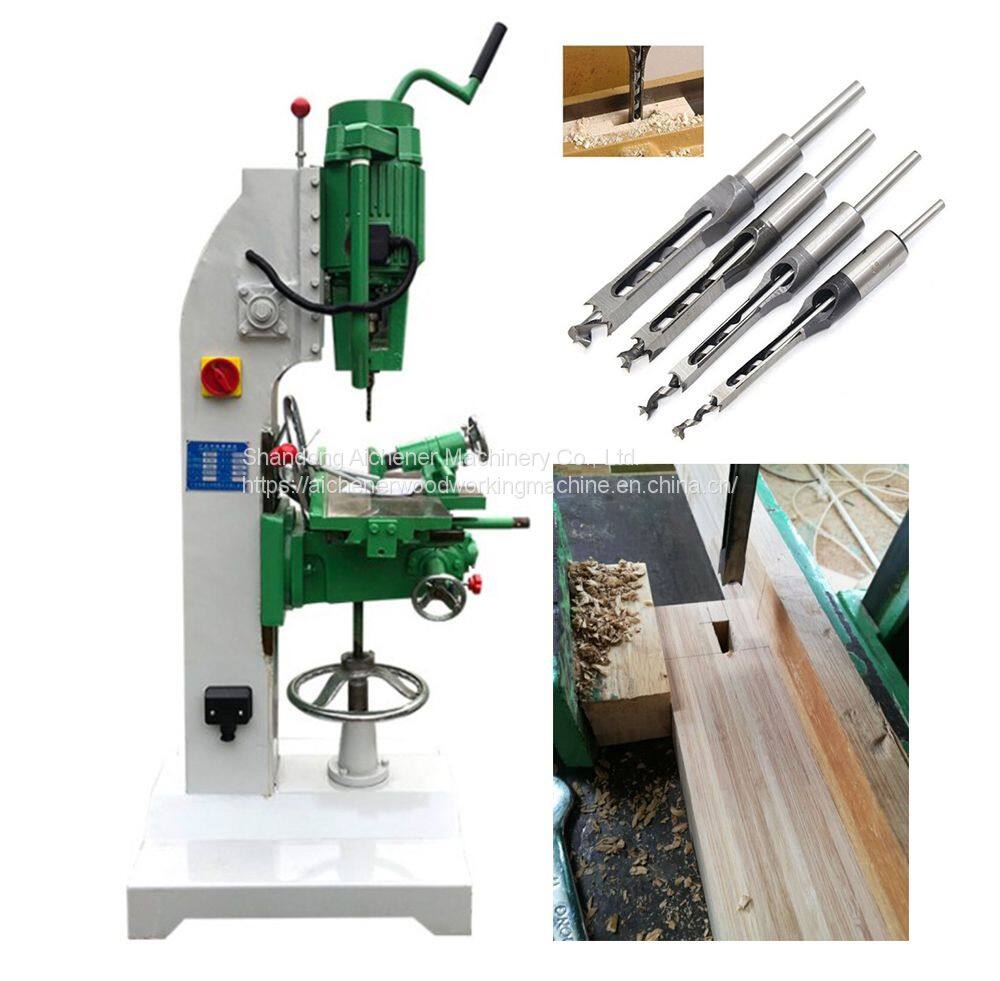

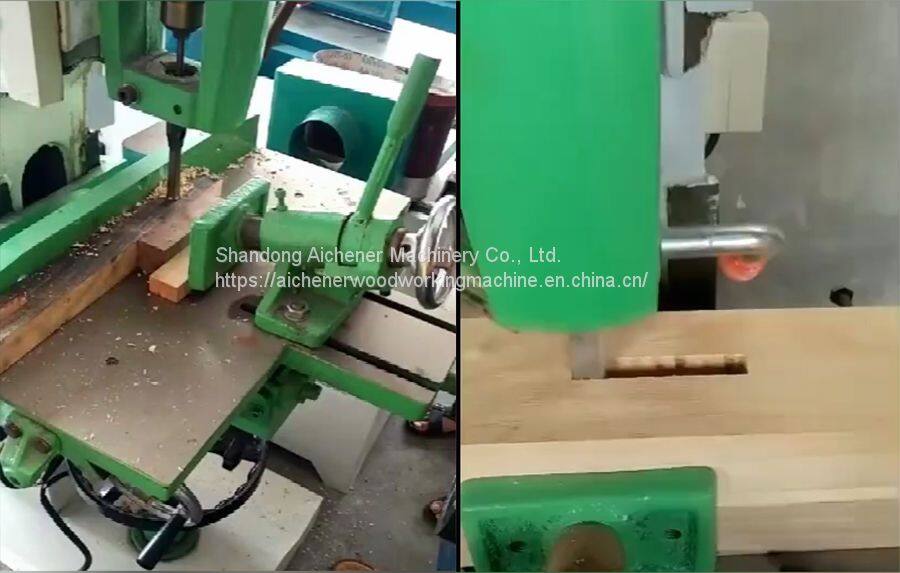

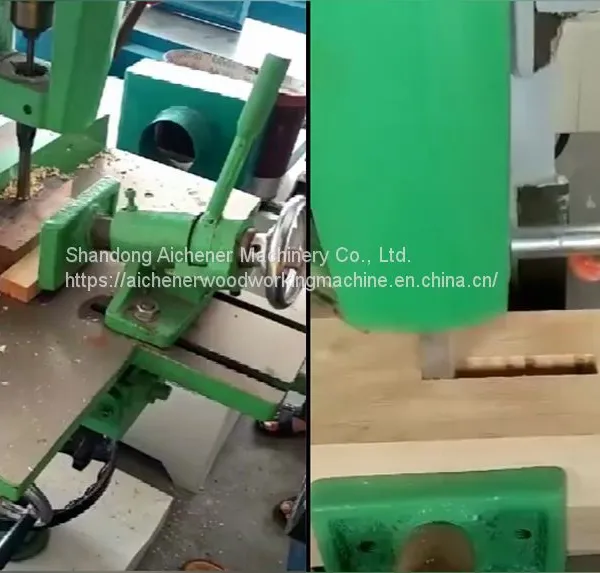

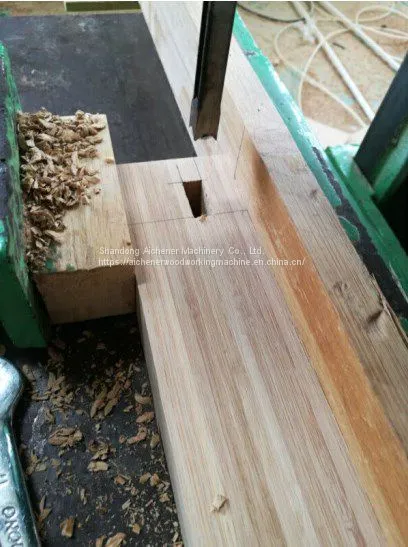

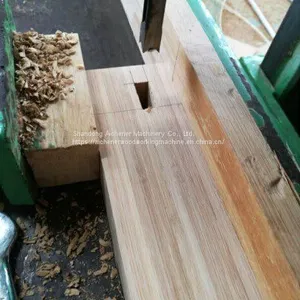

1. Users can replace different types of drill bits according to the needs of work to round the eyes or square eyes.
2. Equipped with a quick-clamping device, which can adjust the tightening device according to the specifications of the wood to facilitate drilling.
3. The design is reasonable, the manufacturing is excellent, the worktable is easy to adjust, the front and rear feed transmission system of the handwheel is flexible and stable, the gear lifting is stable and durable, and can be moved up and down or left and right 30 degrees as needed.
4. The motor has high power and is equipped with automatic air blowing system, which makes the drilling force stronger and the work efficiency is faster.
