Introduction of MX5068 high speed woodworking router spindle shaper moulder machine
MX5068, MX5067, MX5078 woodworking routers can be installed with a variety of milling tools, chamfer polishing, contouring, round holes, irregular holes, and simple milling reliefs, etc. Preferred machine

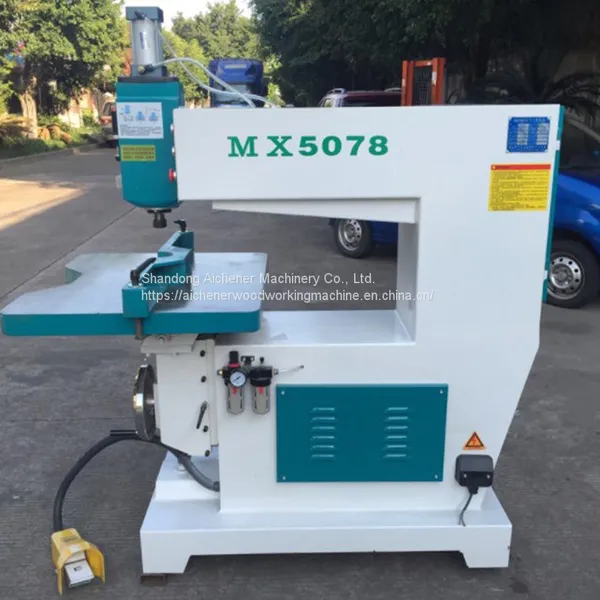

The MX5078 table is upgraded and enlarged with a router. The groove in the middle of the table is more fitted to the shape of the human body, which saves labor and speeds up workers.
Parameter of MX5068 high speed woodworking router spindle shaper moulder machine
Model |
MX5068 |
MX5078 |
MX5067 |
Motor power |
3kw/4kw |
3/4kw |
2.2/3kw |
Working table |
800*700mm |
800*750mm |
700*500mm |
Working table tilting angle |
0~45degree |
||
Working air pressure |
0.6~0.8Mpa |
||
Spindle speed |
18000r/min or 10000/20000r/min |
18000r/min |
|
Working table Lifting stroke |
180mm |
80mm |
|
Max. Processing thickness |
150mm |
130mm |
|
Max.spindle stroke |
65mm |
65mm |
40mm |
Type |
Single speed or double speed type |
Single speed |
|
Spindle clamp diameter |
6.3/12.7mm |
||
Dimension |
1500*900*1700mm |
1650x950x1700mm |
1600*770*1500mm |
Weight |
400kg |
450kg |
260kg |
Feature of MX5068 high speed woodworking router spindle shaper moulder machine
Grooving, milling, polishing, drilling, chamfering, contouring
High precision, both spindle and table can be lifted

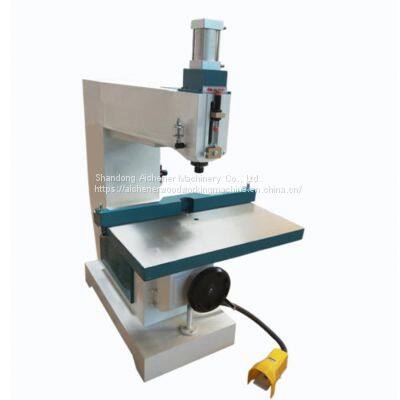

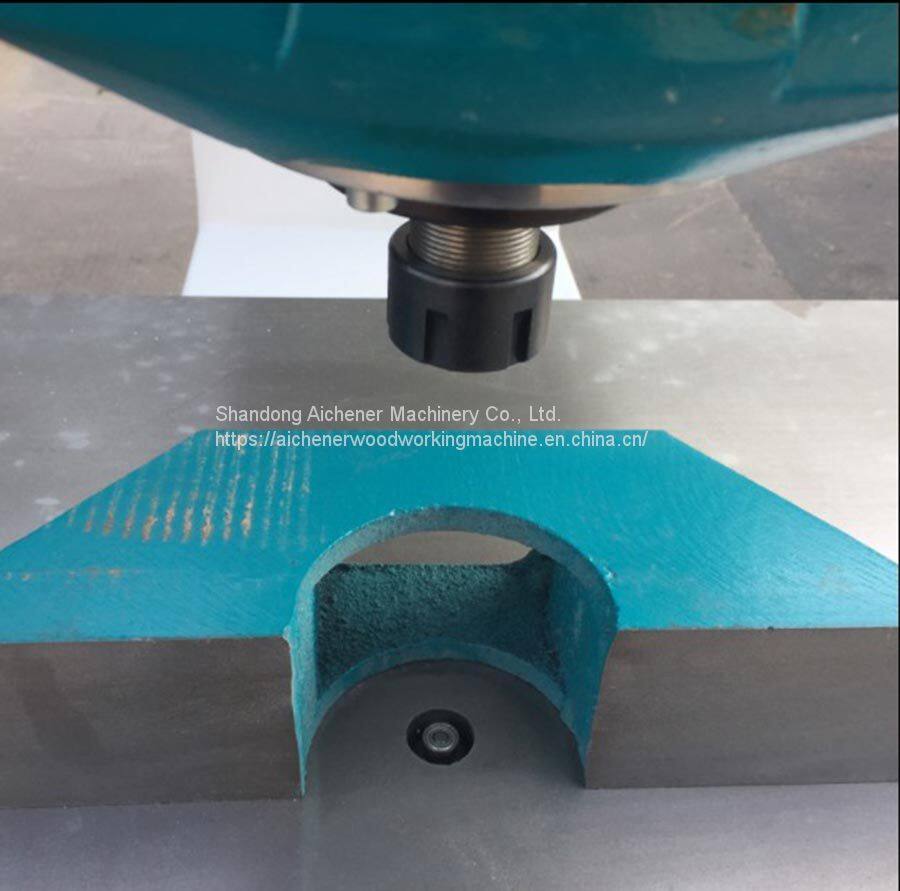

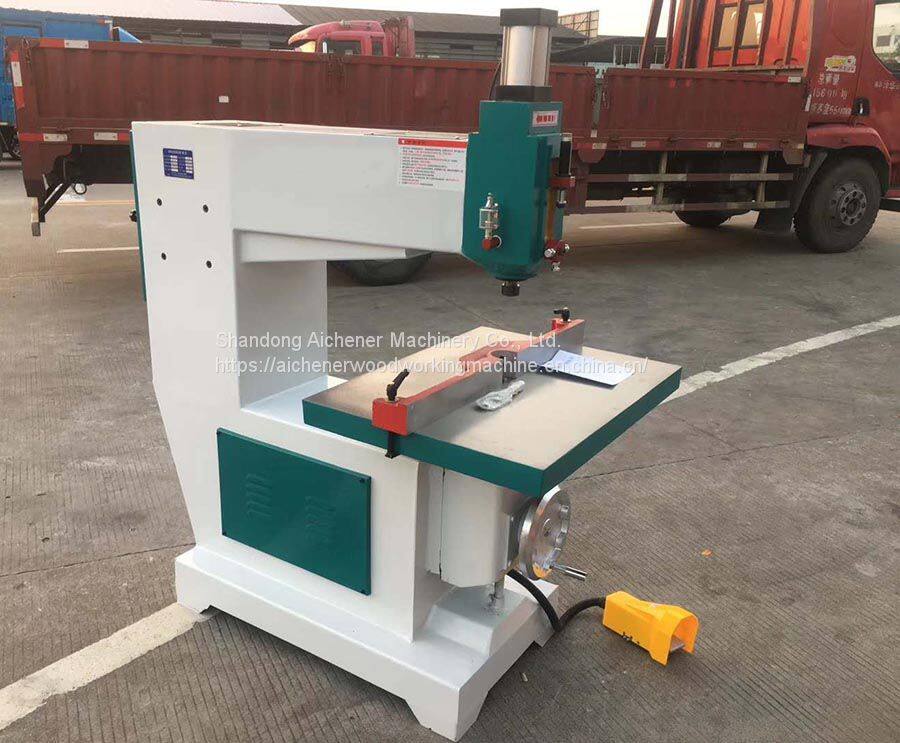

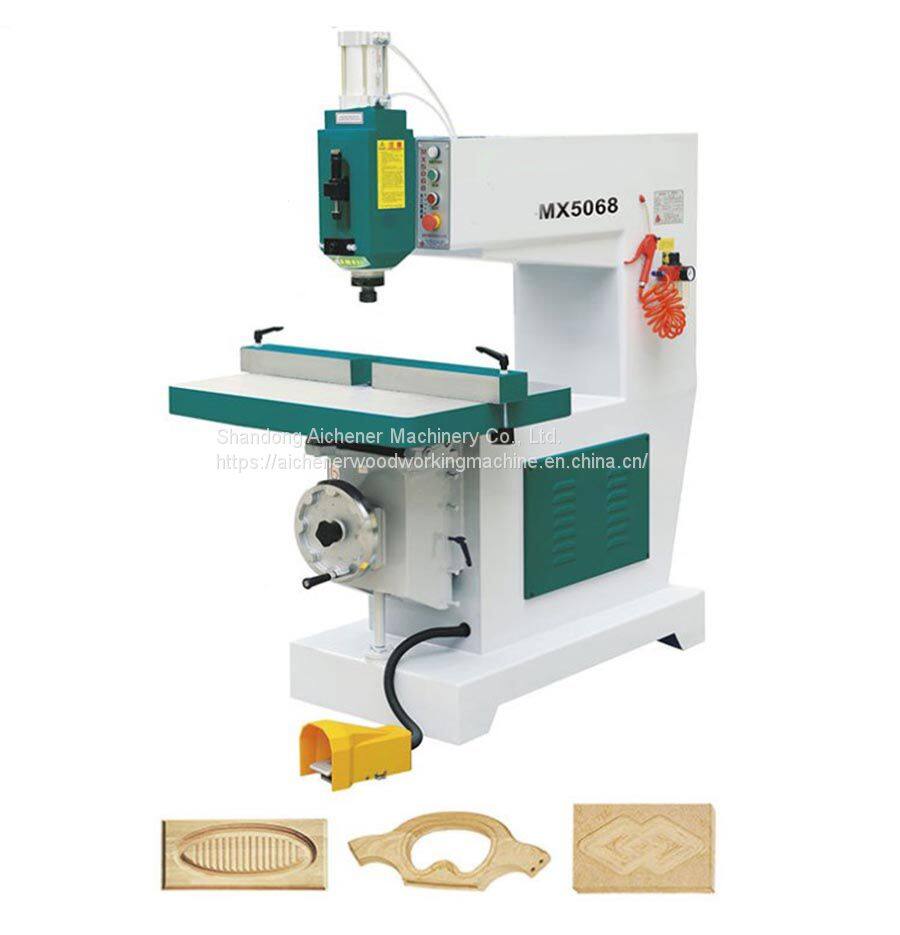

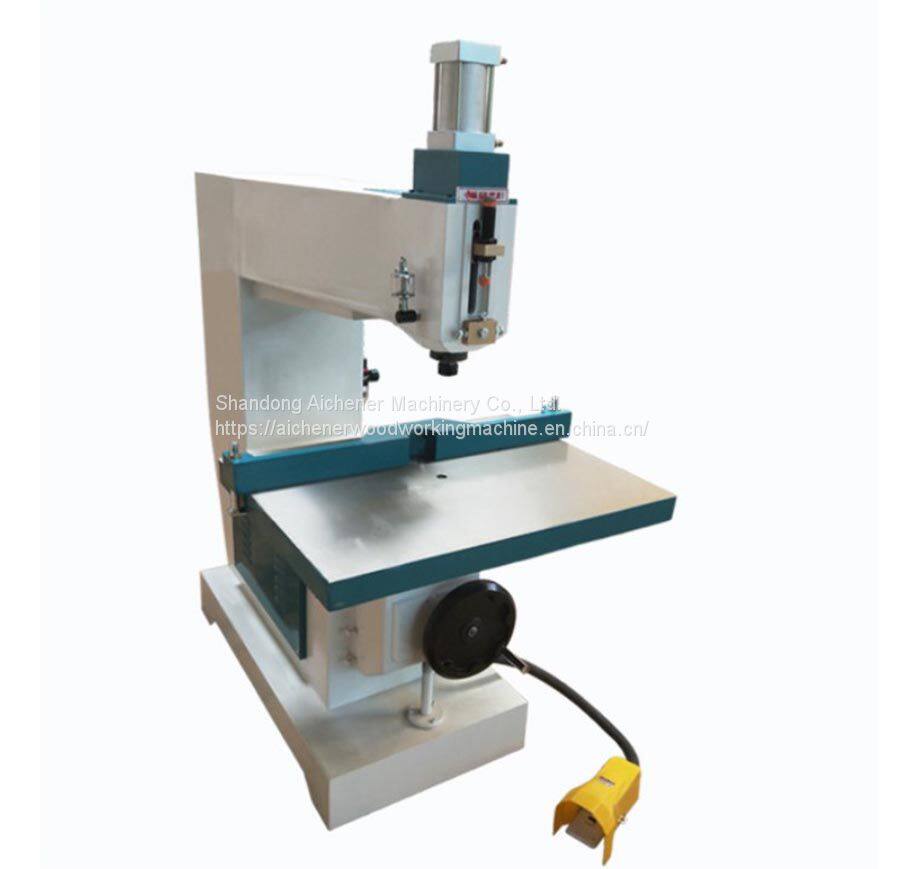

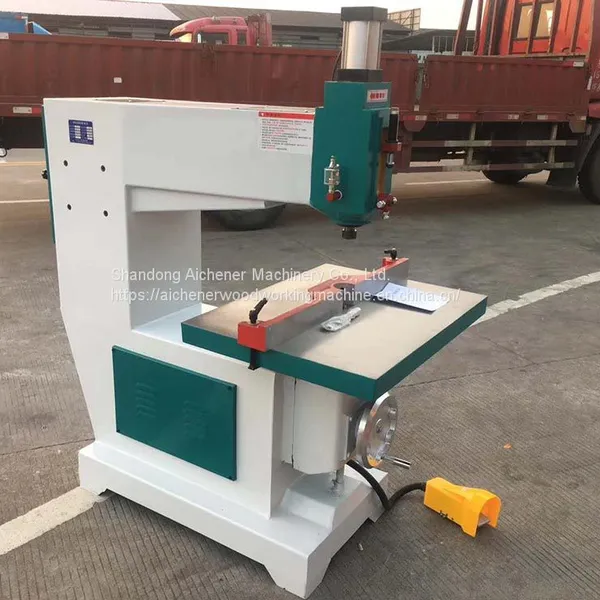

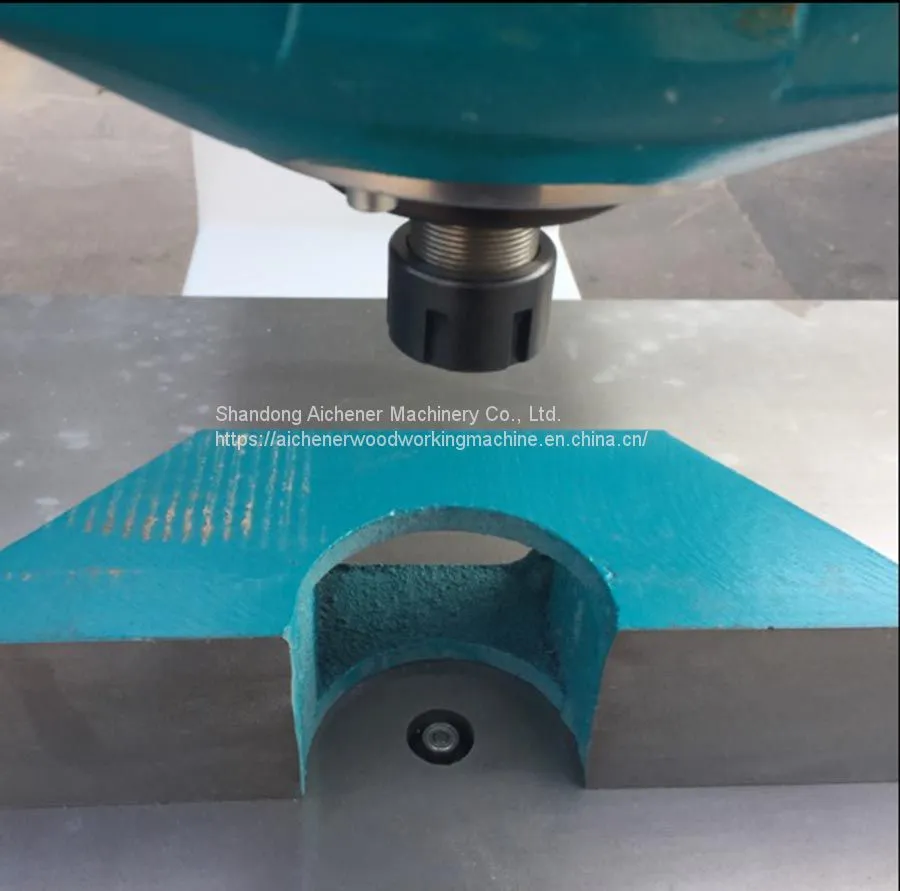

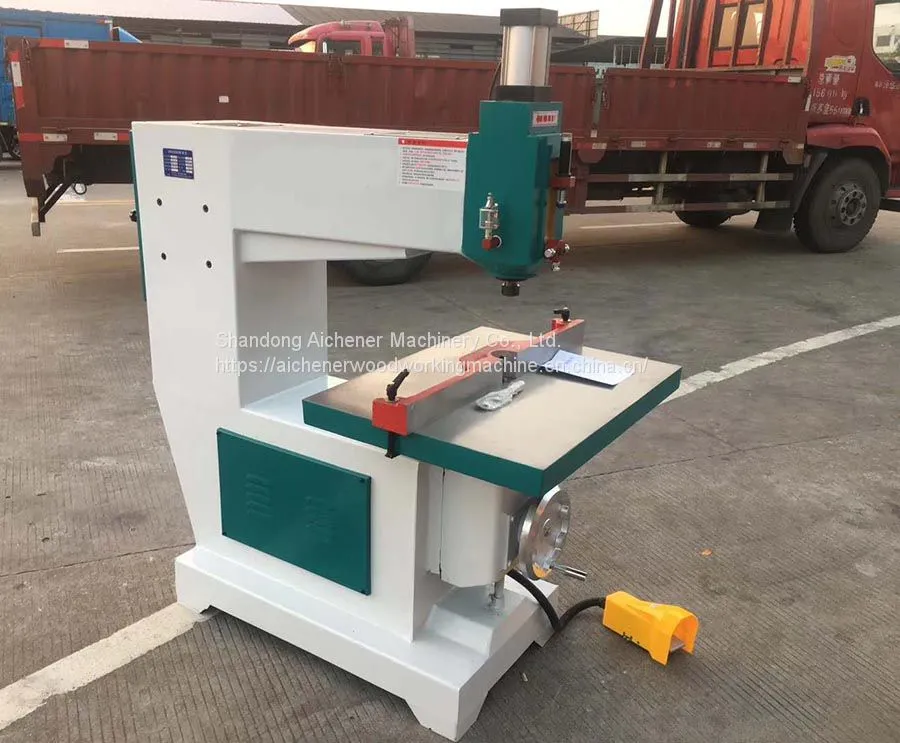

Photo of MX5068 high speed woodworking router spindle shaper moulder machine
