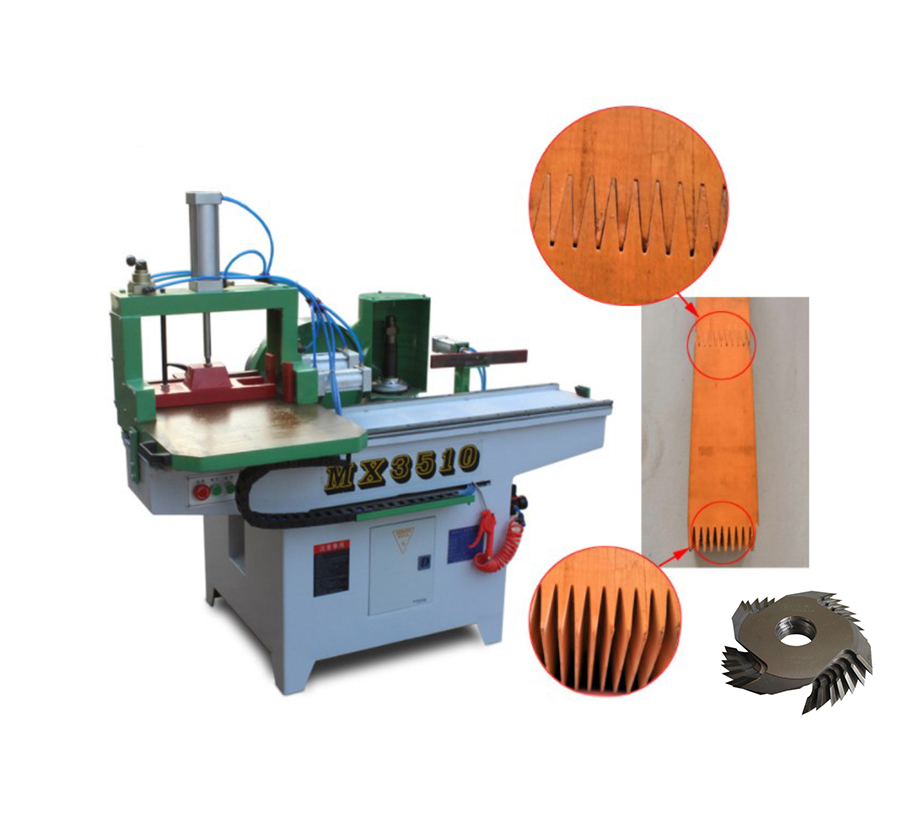

MX3510 Comb finger jointer mortise and tenon machine for sale

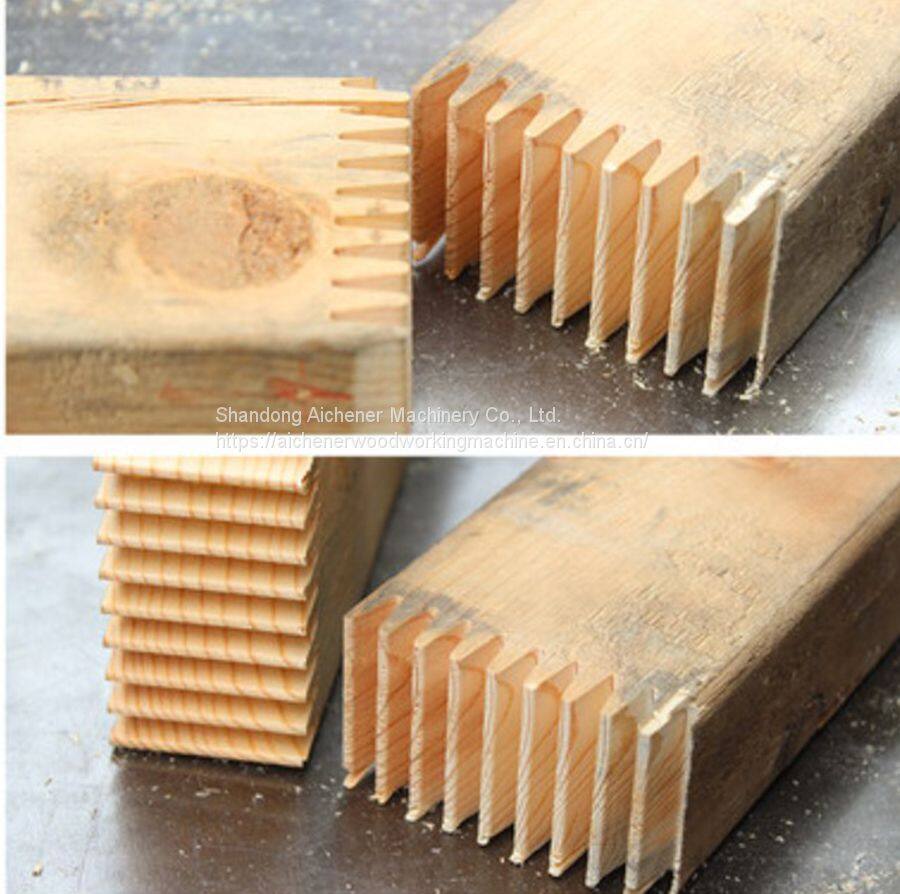

MX3510 is mainly used for making finger shape of wood, smear the glue on the tenon, and then put into the finger jointing machine, the cutting saw cut the wanted length.
It's necessary equipment to make small solid wood assemble to board or other shape.
This finger jointer assemble machine is easy to handle.
1.Equipped with automatic vacuum cleaner in the equipment, the automatic vacuum cleaning efficiency is high after opening the teeth, saving labor force.
2. The operator only needs to control by the button, the wood teeth are opened, and the vacuuming is automatically completed to make.
3. Adopt precision linear guides and bearings to ensure the longitudinal shape of the teeth after the wood is opened
4. The accuracy of the angle. Gas-equipped circular saws can be used to achieve flat-head plus work.
5.This model is used for the processing of square wood, which can improve the efficiency by 3-5 times.
Parameter of MX3510 Comb finger jointer mortise and tenon machine for sale
Model |
MX3510/MX3515 |
Keyword |
FINGER JOINTER Comb Tenoning Machine |
Max. Processing width |
375mm |
cessing thickness |
120mm |
Shaper blade diameter |
160mm |
Tooth tenon length |
6~25mm |
Shaper spindle diameter |
35/40mm |
Saw blade diameter |
305mm |
Trimming head motor power |
2.2kw |
working air pressure |
0.6~0.8Mpa |
Cutter Spindle speed |
5500~6500RPM |
Comb head motor power |
7.5kw |
Total motor |
9.7kw |
Dimension |
1500*1300*1200mm |
Weight |
600kg |

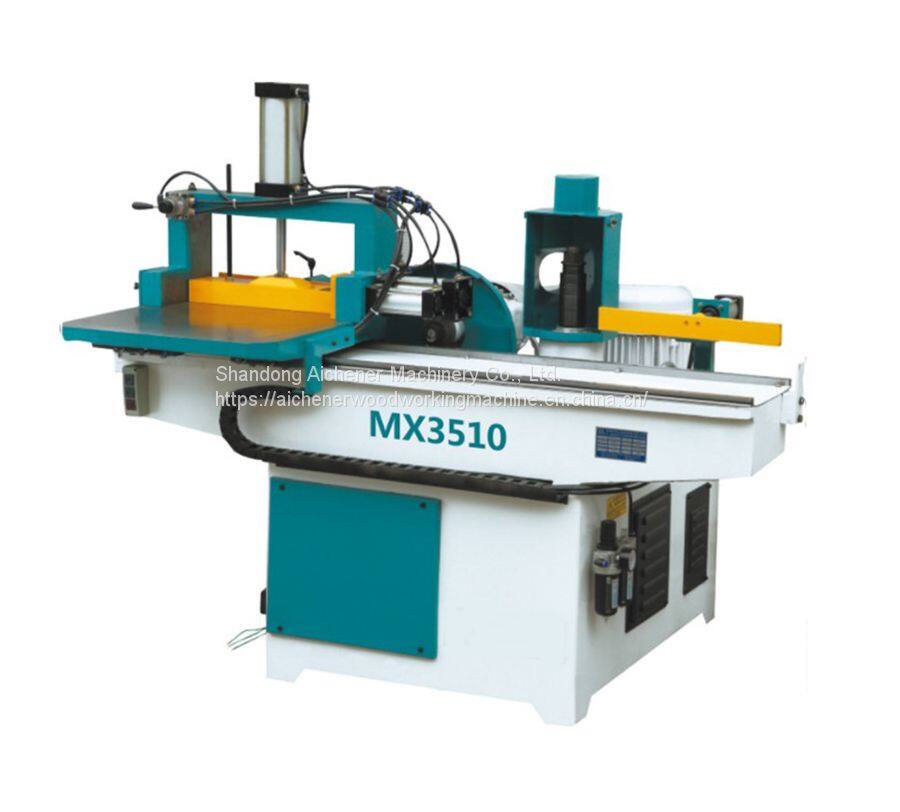

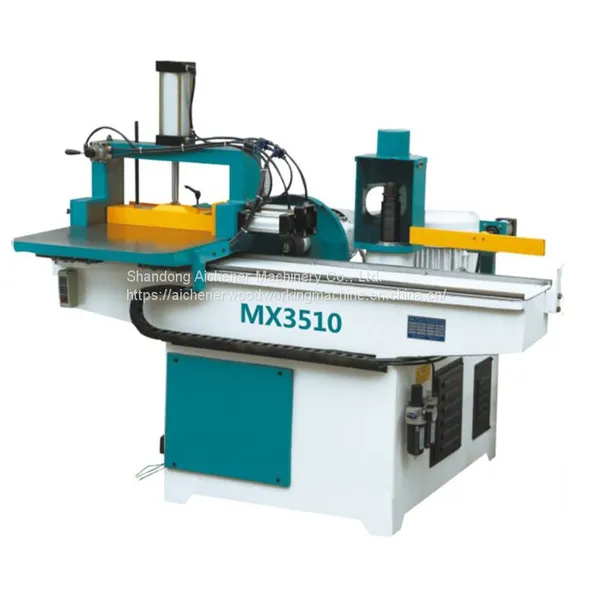

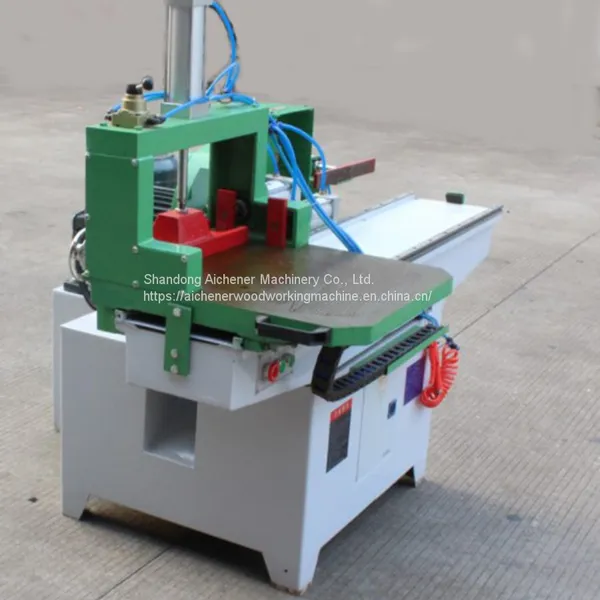

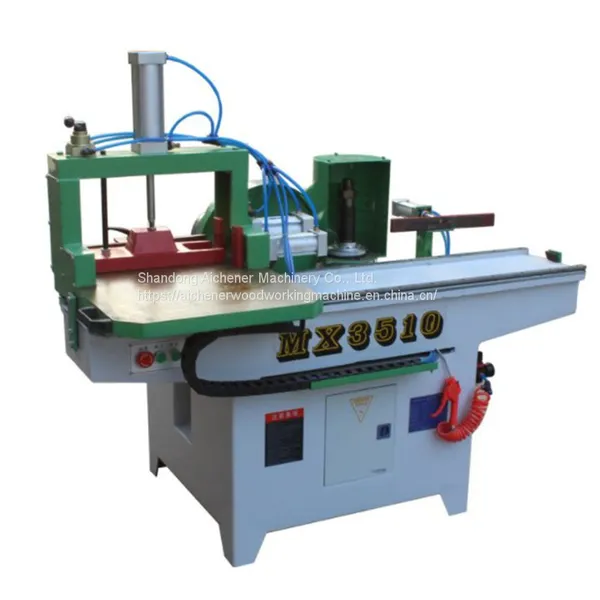

Photo of MX3510 Comb finger jointer mortise and tenon machine for sale
edith sun sales managerShandong Aichener Machinery Co., Ltd.Mobile/Wechat/Whatsapp: +8615684053496TEL: +86 05355552735 E-mail: edithsun@aichener.com Web: /Office: No.1 Haibo Road, High-tech Zone,Yantai City,Shandong Province,China
