High Low Temperature Thermal Shock Charpy Impact Test Cooling Chamber

Introduction:

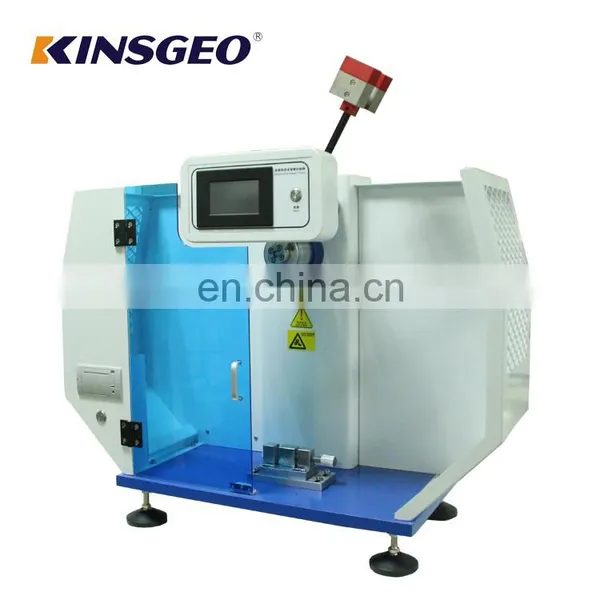

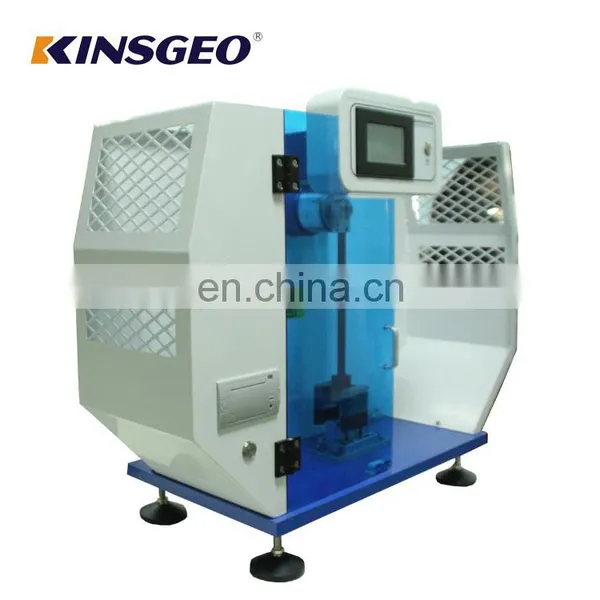

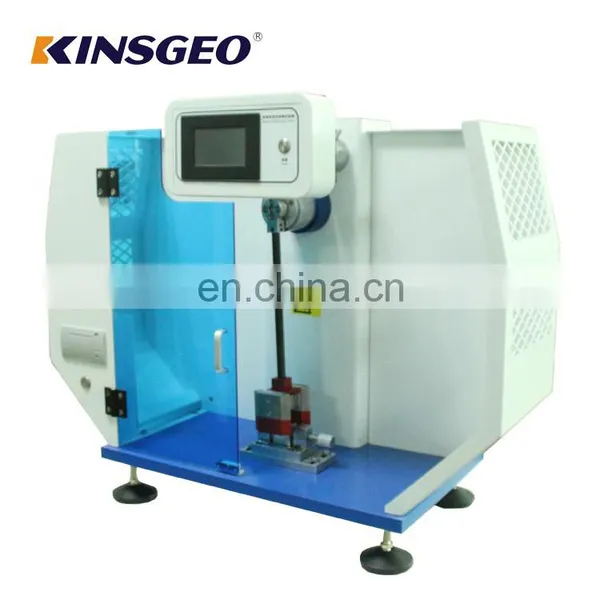

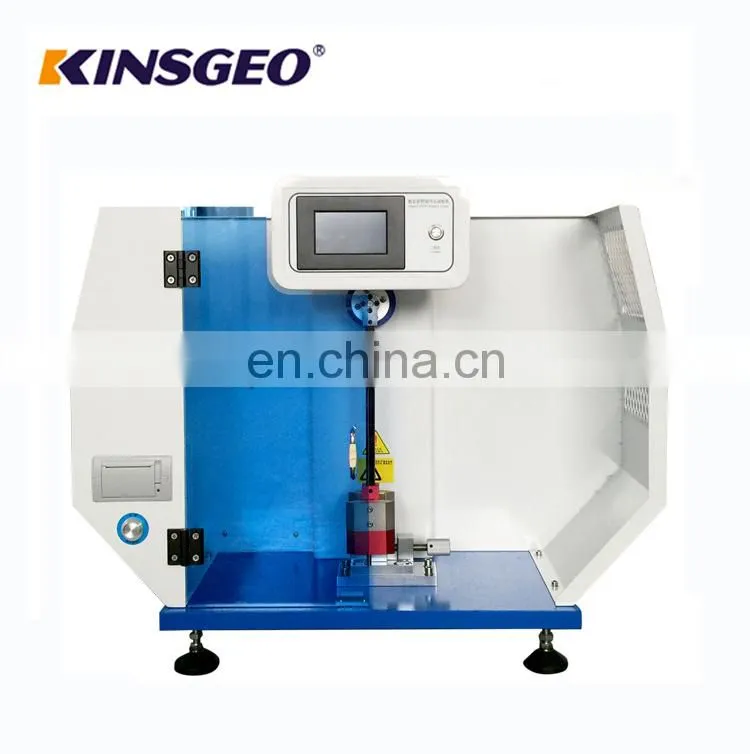

This impact tester is used to test impact toughness of  hard plastic,GFPA,glass fiber reinforced plastics,ceramics,  cast stone,electrical insulating material and other non-metal material.It's a ideal testing equipment in chemical industry,R&D institution,quality controlling dept.

Character:

1,This impact tester adopts mico-computer technology to manufacture,it's a intelligentize and digital impact tester.It can correct automatically energy loss caused by friction and wind drag.(After sample breakage,It's one-time finished for checking pendulum bob surplus energy and correcting the energy loss.)

2,This impact tester is used to electronic display to show the test result, test result output by printer.Reading intuitive,improving the accuracy.

3,Adopts  rotary encoder grating angular technology,high accuracy,good stability,big measurement ranges.Digital showing impact energy,impact strength,Pr-elevation ,lead angle,average value,energy loss ...

4,KJ-3090 is a combined impact tester, cantilever beam impact test and  charpy impact test,designed by IS0 179,GB/T 1043,JB/T 8762 and ASTM D256.

Charpy impact test:

   IZOD impact test:

1,Temperature:(15-35)℃

2,Impact speed:3.5m/s

3,Impact energy:1J,2.75J,5.5J,

4,Impact moment:Pd1=0.535N·M

                                   Pd2.75=1.4737N·M

                                   Pd5.5=2.9474N·M

                                   Pd11=5.8949N·M

                                   Pd22=11.7898N·M

5,Bob angle:150°±1°

6,Impact center distance:335mm

7,Impact blade fillet radius:0.8±0.5mm

8,Distance from impact blade to jaw:22±0.2mm

9,Outside size:560(Length)* 300(Width)* 840(Height)mm

10,Weight:80KGS
