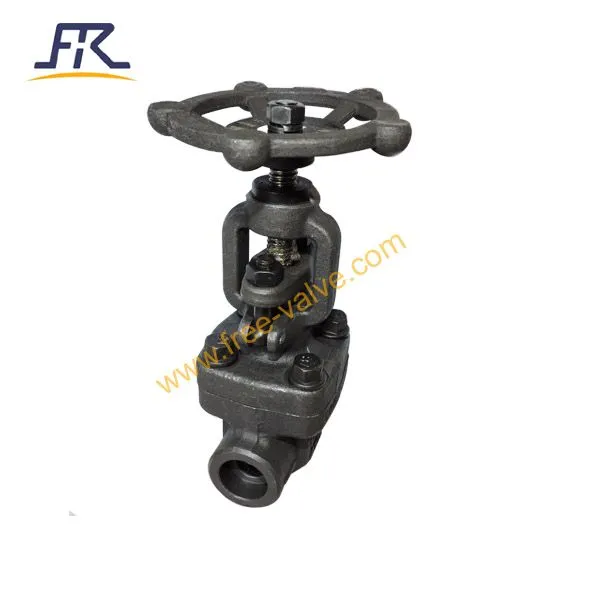

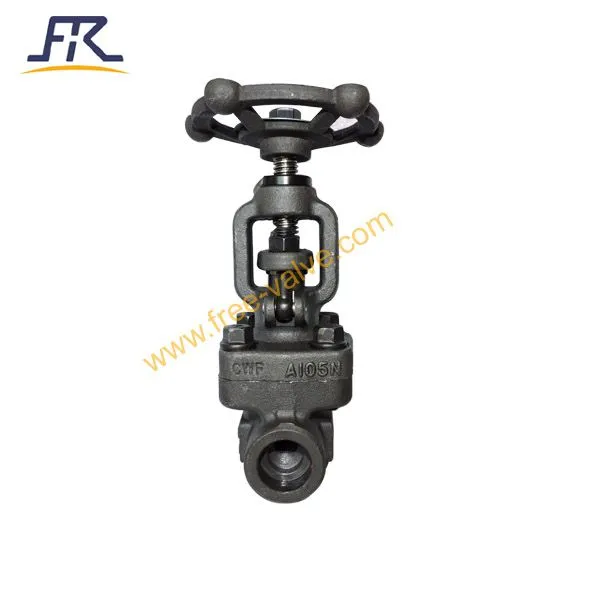

FREE-VALVE’s Socked Welding Type Globe Valve is compact, sturdy and ideal for high pressure applications and consist of a disc and stem connection designed for on-off. Stem seal consists of flexible graphite packing with anti extrusion rings for optimum stem sealing. These valves are outside screw and yoke type (OS & Y) with rising stem and rising hand wheel.
Features
1. Socket Welding type A105 globe valve has the advantages of more uniform structure, greater density, higher strength integrity,so that A105 globe valves are applicable for high pressure working conditions.
2. Efficient packing seal at backseat to ensure no leakage from stem.
3. Outside Screw & Yoke construction facilitate stuffing box maintenance.
4. Straight type passage, small fluid resistance.
5. Fully guided disc ensures accurate alignment of disc and seat and reduces wear on seating surfaces.
6. Sealing surface use STL hard alloy , so it’s wear and erosion resistant, reliably sealed and has long service life.
7. Socket welding connection with the pipe ,avoid any out leakage .
Technical Specification
1. Socket welding connection :GB/T3595-2016
2. Design standard:GB/T122235
3. Pressure Range: Class 800
4. Size Range:DN50-DN350
5. Material:A105
6. Working Temperature ≤425℃
7. Operating Type:Hand wheel
8. Sealing surface material:Hard Alloy
9. Pressure test GB/T13927, API598
10. Face to Face GB/T12221, ASME B16.10
Application
FREE-VALVE’s Socket Welding Type Globe Valve offer high performance, reliability and safety. The Globe Valve are especially suitable for high pressure application in steam, oil and gas processing. You will find Socket welding type globe valve will be install at power industries, chemical and petrochemical industries.
Model:FRJ61Y-800Lb
Price:100-2000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
Wechat:Free_Valve
Email:marketing@free-valve.com
Skype:marketing@free-valve.com
What’s app:+8613460250295
Mobile:+19937155563
