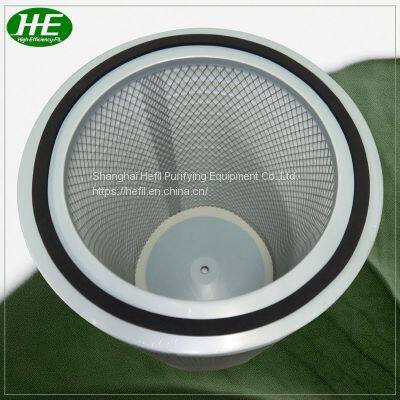

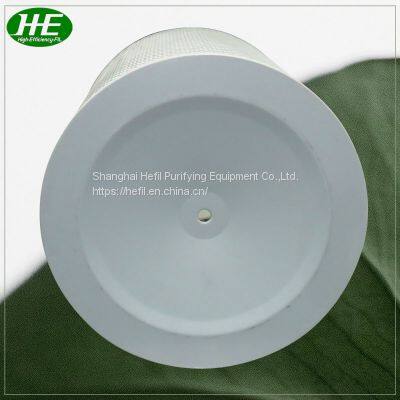

Help CenterIndustrial Air Filter Dust Collector Filter Cartridge
Related Products
-
High Efficiency Hepa Filter Air Dust Filter CartridgeUS$ 10 - 100MOQ: 1 Piece -
Round Hepa Air Filter H14 Cylinder Cartridge for Gas FiltrationUS$ 10 - 100MOQ: 1 Piece
-
High Efficiency Hepa Filter/Powder Coating Cylinder Air Dust Filter CartridgeUS$ 10 - 100MOQ: 1 Piece
-
Industrial Polyester Pleated Air Filter CartridgeUS$ 10 - 100MOQ: 1 Piece
-
Stainless Steel Flame Arrester Oil Water Wire Mesh Square DemisterUS$ 20 - 100MOQ: 1 Piece
Advantages
◆Filter efficiency: 99.99% for the 0.5-20µm particle
Material Instructions
◆Use the excellent polyester, PTFE, wood pulp fiber, ultra-fine fiberglass as filter material, possess the feature of bigger filtering area, low resistance features, etc.
◆The material of ends can be galvanized, stainless steel material.
◆Guard mesh can be galvanized, stainless steel in inner and outer sides.
◆The end are generally one is open, the other is closed or open in two ends.
◆Generally adopts screw connection, convenient in installation.
Application
◆Mainly used as pre-filter for high-efficiency, as well as collecting and filtering dust for gas cleaning system.
Common Specifications
|
Model |
Dimensions (mm) |
Air Flux (m3/min) |
Filter Fineness (μm) |
Filter Efficiency (%) |
Allowable Pressure Differential (MPa) |
Work Temperature (°C) |
Initial Pressure Drop (MPa) |
HCAC200-05 |
Φ202×330 |
10~15 |
5.0~20 |
95~99.9 |
≤0.08 |
≤60 |
0.00016~0.01 |
HCAC200-10 |
Φ202×500 |
15~25 |
|||||
HCAC200-15 |
Φ202×660 |
25~30 |
|||||
HCAC200-20 |
Φ202×1000 |
30~50 |
|||||
HCAC320-05 |
Φ324×330 |
15~20 |
|||||
HCAC320-10 |
Φ324×500 |
20~30 |
|||||
HCAC320-15 |
Φ324×660 |
30~40 |
|||||
HCAC320-20 |
Φ324×1000 |
40~60 |
|||||
HCAC350-05 |
Φ352×330 |
20~30 |
|||||
HCAC350-10 |
Φ352×500 |
30~40 |
|||||
HCAC350-15 |
Φ352×660 |
40~60 |
|||||
HCAC350-20 |
Φ352×1000 |
60~80 |
|||||
HCAC400-05 |
Φ405×330 |
30~40 |
|||||
HCAC400-10 |
Φ405×500 |
40~60 |
|||||
HCAC400-15 |
Φ405×660 |
60~80 |
|||||
HCAC400-20 |
Φ405×1000 |
80~100 |
Note: 1. In case of specifications or structures changes, HEFIL will provide up-to-date data on website: www.hefilter.com.
2. HEFIL makes various of other models’ HCAC filter not listed in above table. Please consult with us if you need.
