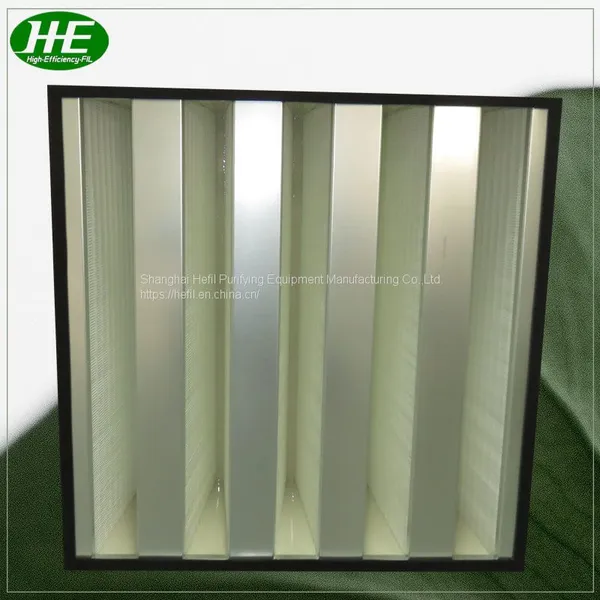

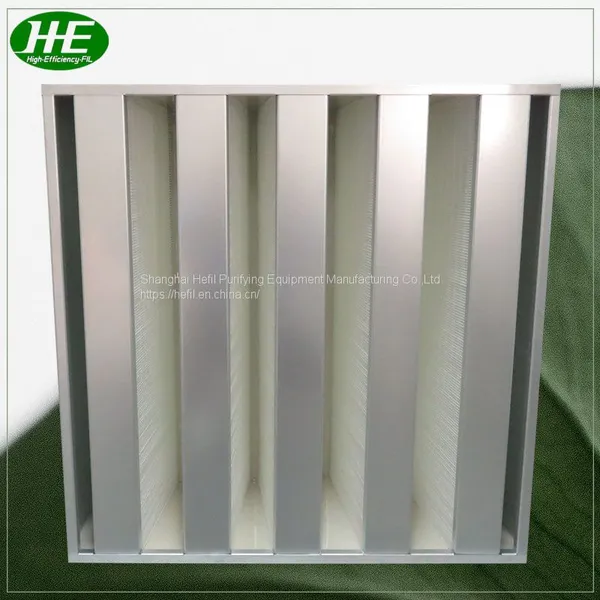

Competitive Price Compact Plastic Frame Glassfiber Mini Pleat Industrial V-Bank Cell Rigid Type H13 HEPA Air Filter

Competitive Price Compact Plastic Frame Glassfiber Mini Pleat Industrial V-Bank Cell Rigid Type H13 HEPA Air Filter thumbnail-1
Competitive Price Compact Plastic Frame Glassfiber Mini Pleat Industrial V-Bank Cell Rigid Type H13 HEPA Air Filter thumbnail-2
Competitive Price Compact Plastic Frame Glassfiber Mini Pleat Industrial V-Bank Cell Rigid Type H13 HEPA Air Filter thumbnail-3
Competitive Price Compact Plastic Frame Glassfiber Mini Pleat Industrial V-Bank Cell Rigid Type H13 HEPA Air Filter photo-1
Competitive Price Compact Plastic Frame Glassfiber Mini Pleat Industrial V-Bank Cell Rigid Type H13 HEPA Air Filter photo-2
Competitive Price Compact Plastic Frame Glassfiber Mini Pleat Industrial V-Bank Cell Rigid Type H13 HEPA Air Filter photo-3
US$ 25 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HEFIL
Place of Origin:
China
Model Number:
HMV
Contact Supplier Request Quote Chat Now
Shanghai Hefil Purifying Equipment Manufacturing Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HEFIL
Place of Origin China
Model Number HMV
After-sales Service Provided Engineers available to service machinery overseas
Dimension(L*W*H) Custom
Condition New
Efficiency M6-U16
Medium Material Fiberglass
Filtration Grade Hepa Filter
Construction Other



Advantages
1.Filter efficiency ranges from E10 to U17.
2.Adopt computer-controlled automatic production line for manufacture of mini pleat filter material, good stability of filtration efficiency.
3.Using special fiberglass paper or PP paper as the filter media, good stability of filtration efficiency.
4.Frame can be made of galvanized steel sheet, stainless steel sheet or ABS plastic.
5.Each filter is tested according to EN1822:2009.

Material Instructions
1.Media: Applies fiberglass or PP filter paper.
2.Frame: Galvanized steel sheet, stainless steel sheet or ABS plastic with V-Bank high capacity.
3.Separator: Hot-melt glue.
4.Sealant: Polyurethane.
5.Temperature: Maximum 90°C in continuous service

Application
Suitable for air conditioning purification equipment needs high ventilation, such as medium filter and terminal filter in air-conditioning systems.

Structure Drawings
V-Bank E10 Standard Capacity HEPA Filter


Common Specifications

Model
Dimensions
Structural Style
Frame
Media Area
(m2)
Rated Air Flow
(m3/h)
Initial Pressure Drop (Pa)
W×H×D (mm) F8 E10 H13 H14
HMV1212-2VF25 287×287×292 287
Header
25mm 		2V
Plastic/Metal 		4.2 800 110 180 260 300
HMV1220-2VF25 287×490×292 7.7 1200
HMV1224-2VF25 287×592×292 9.4 1600
HMV2012-3VF25 490×287×292 490
Header
25mm 		3V
Plastic/Metal 		6.4 1100
HMV2020-3VF25 490×490×292 11.6 1900
HMV2024-3VF25 490×592×292 14.4 2400
HMV2412-3VF20/25 592×287×292 592
Header
20/25mm 		3V
Plastic/Metal 		6.4 1100
HMV2420-3VF20/25 592×490×292 11.6 1900
HMV2424-3VF20/25 592×592×292 14.4 2400
HMV2412-4VF20/25 592×287×292 4V
Plastic/Metal 		8.4 1600
HMV2420-4VF20/25 592×490×292 15.4 2500
HMV2424-4VF20/25 592×592×292 18.8 3200
HMV2412-5VF25 592×287×292 592
Header
25mm 		5V
Plastic/Metal 		10.5 1800
HMV2420-5VF25 592×490×292 19.0 3200
HMV2424-5VF25 592×592×292 23.5 3900
HMV1212-2V 305×305×292 610
Box 		2V
Plastic/Metal 		5.4 850
HMV1224-2V 305×610×292 10.8 1700
HMV2412-4V 610×305×292 4V
Metal 		11 1700
HMV2424-4V 610×610×292 22 3400
HMV2412-5V 610×305×292 5V
Plastic/Metal 		13.5 2100
HMV2424-5V 610×610×292 27 4200
HMV2412-6V 610×305×292 6V
Metal 		16 2500
HMV2424-6V 610×610×292 32 5000.


Note: HEFIL makes various of other models' HMV filter which are not listed in above table. Please consult with us if you need.
The Initial Pressure Drop and Rated Air Flow Performance Curve
V-Bank E10 Standard Capacity HEPA Filter

V-Bank E10 Standard Capacity HEPA Filter

In case of specifications or structures changes, HEFIL will provide up-to-date data on website: .
