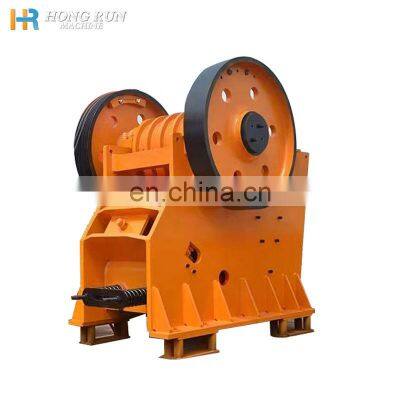

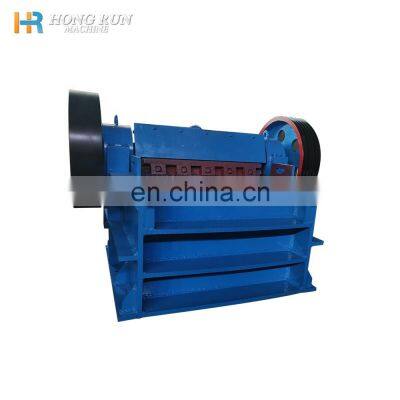

Small Mobile Primary Diesel Engine Ore Jaw Crusher For Sale And Mini Rock Jaw Crusher Machine Stone Crushing Equipment Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2009
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Efficiency Impact Sand Making Machine Sand Maker Used In Sand Production LineNegotiableMOQ: 1 -
Large Capacity Mine Gold Stone Coal Rock Jaw Crusher With Low PriceNegotiableMOQ: 1
-
Widely Used Metal Materials Shredder Scrap Metal Materials Shredder Steel Drum Scrap ShredderNegotiableMOQ: 1
-
2021 Hot Sale Gold Grinder Wet Pan Mill Gold Milling MachineNegotiableMOQ: 1
-
Hot Selling Scrap Metal Materials Shredder Metal Pipe Shredder Metal Scrap Crushing MachineNegotiableMOQ: 1
Small Mobile Primary Diesel Engine Ore Jaw Crusher For Sale And Mini Rock Jaw Crusher Machine Stone Crushing Equipment Price
Product Description
Jaw crusher is mainly used to crush hard and medium hard stones in stone mining, metallurgy industry, building material, highway, railway, stone industry, etc.
Max. anti-pressure strength of material to be crushed is 320MPa.
Features
High ratio of crushing;
Simple structure,Reliable working condition;
Easy maintenance, Low operating cost;
Homogeneous final product size;
Discharge size can be adjusted.
Discharge size can be adjusted.
Application

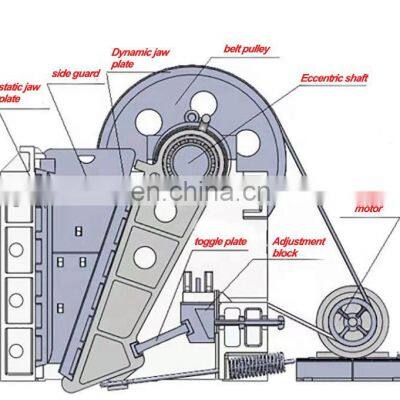

How to work
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.
The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Technical data
| Model | feed inlet size | inlet feeding length(mm) | discharge port size(mm) | capacity(t/h) | power(kw) | weight(t) | dimension(mm) |
| 150*250 | 150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 | 720*660*850 |
| 200*300 | 200*300 | 180 | 15-50 | 2-6 | 7.5 | 1.2 | 910*750*990 |
| 200*350 | 200*350 | 180 | 18-70 | 3-10 | 11 | 1.5 | 1000*870*990 |
| 400*600 | 400*600 | 350 | 40-100 | 15-60 | 30-37 | 7 | 1700*1732*1653 |
| 500*750 | 500*750 | 425 | 50-100 | 40-110 | 45-55 | 12 | 2035*1921*2000 |
| 750*1060 | 750*1060 | 630 | 80-140 | 110-320 | 55-75 | 17 | 2290*2206*2370 |
| 1000*1200 | 1000*1200 | 850 | 200-300 | 280-560 | 110-160 | 69 | 5350*4280*3050 |
| 1500*1800 | 1500*1800 | 1200 | 210-360 | 520-1100 | 280 | 132 | 7460*6235*4249 |
| 1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 160-220 | 100.9 | 6380*5310*3710 |
transport
Can be packed in wooden boxes or according to customer requirements

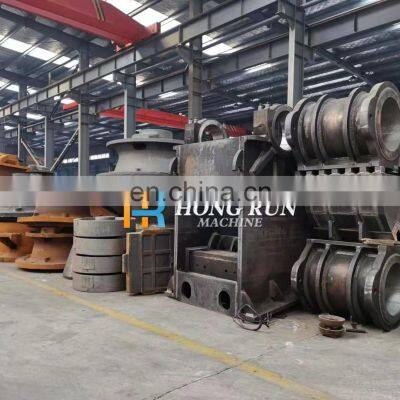

our company
Gongyi hongrun machine was established in 1989,and acquire the CE certificates in 2001.we are Chinese manufacturer & exporter of all kinds of machines.we have over 20 years experience of charcoal making machines,our customers come from different countries and we get the same good evaluation,if you need these kinds of machines,we are the best choice for you!
