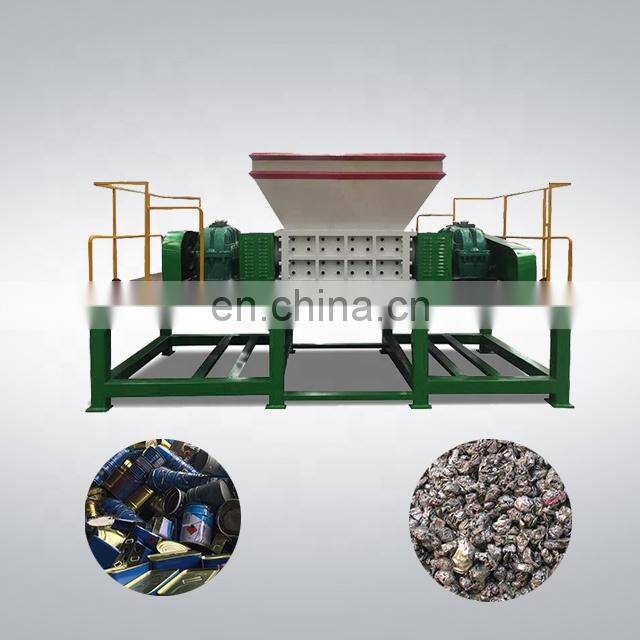

Widely Used Metal Materials Shredder Scrap Metal Materials Shredder Steel Drum Scrap Shredder
All types of metal shredders are made of carbon steel, but for the baldes and axis, it is with different materials.the shredder is composed of body machine,two motors,feeding port,frames,axis and blades.the metal shredder has two shrafts,when we feed into the wastes metal, it can shred them into particles.
Specification:

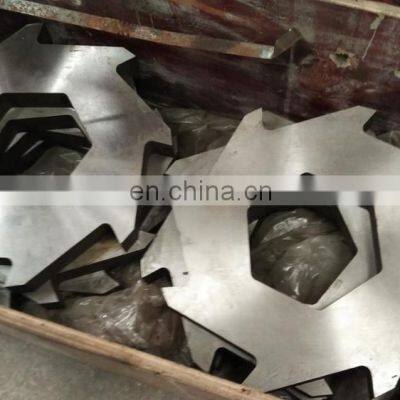

The car shredder choose the mutually combination of stationary knife and moving blade,the stationary knife is fastened to the top of the blades with S shape,when the feedstock goes into the chamber, it can force them feeding and shredding.
|
Hongrun Machinery Metal Shredder Technical Parameters
|
||||
|
Model |
Dimension(m) |
Power(kw) |
Capacity(kg/h) |
Weight(kg) |
|
HR1300 |
2.6*1.8*2.8(M) |
45*2 |
3000 |
3500 |
|
HR1500 |
3.8*2.5*3.0(M) |
75*2 |
5000 |
4500 |
|
HR1800 |
4.6*3.1*3.1(M) |
90*2 |
7000 |
5000 |
The working principles of metal shredder:

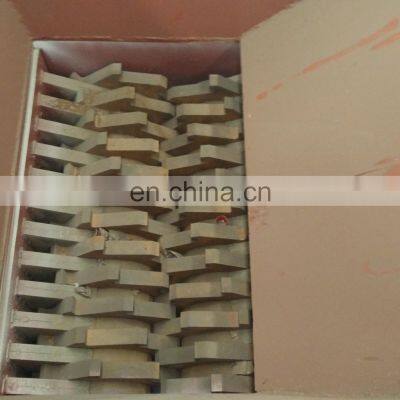

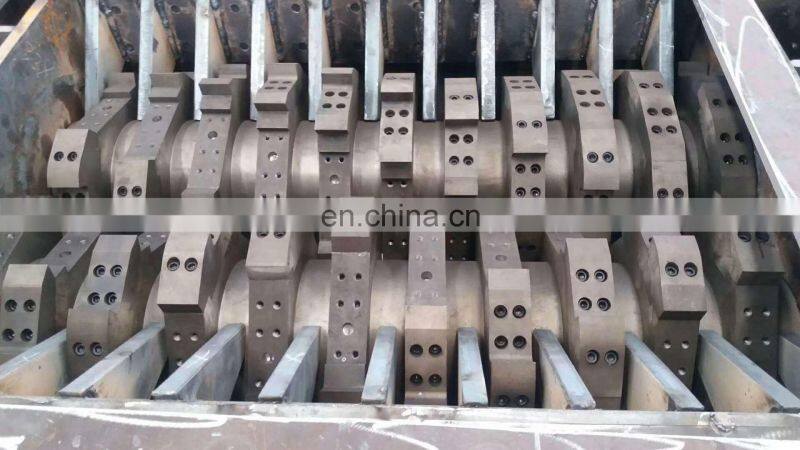

this equipment is composed of feeding port silo,shredding double axis,electrical control systerm, discharging belt conveyor and motors; feeding port silo: holding the materials to be shreded,just in case of wood splashed out and caused an accident when it shreds; shredding double axis:the double axis with Wear-resistant knife, After all the blades are assembled, a spiral cutter is formed,when it is running,ensure every blade is evenly stressed,the double axis through the buckle to ensure the the distance between the blades is not big. shredding the wood by the hooking of the blades and the extrusion between the double axis. Motor systerm: the feeding power use the reducer systerm; discharging belt conveyor: the independent power systerm, whole part is bolted to the body machine, which can be taken out as a whole part, and the repair and replacement parts are flexible and convenient. This type of equipment can directly set the material fed into the feed bin directly through the broken double axis, hook and squeeze, and complete the shredding process.
|
|
|
| VIEW PRODUCT | VIEW PRODUCT |
|
|
|
| VIEW PRODUCT | VIEW PRODUCT |
Packing
Shipping
The machine will be shipped with wooden case which has the plastic film inside, and will be delivered in 15 days after receives the payment.
Gongyi hongrun machine was established in 1989,and acquire the CE certificates in 2001.we are Chinese manufacturer & exporter of all kinds of machines.we have over 20 years experience of charcoal making machines,our customers come from different countries and we get the same good evaluation,if you need these kinds of machines,we are the best choice for you!
