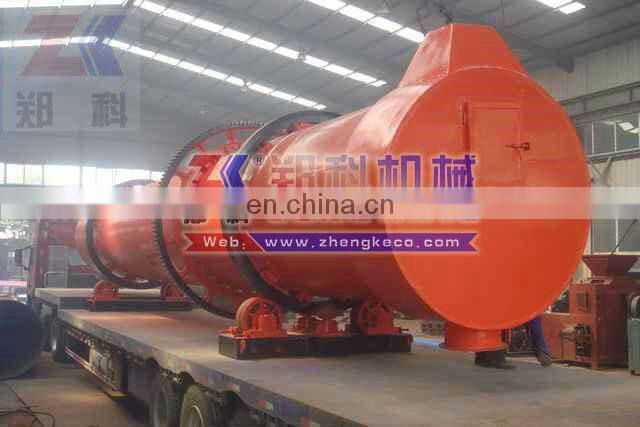

                                 Wood chips sawdust rotary drying equipment

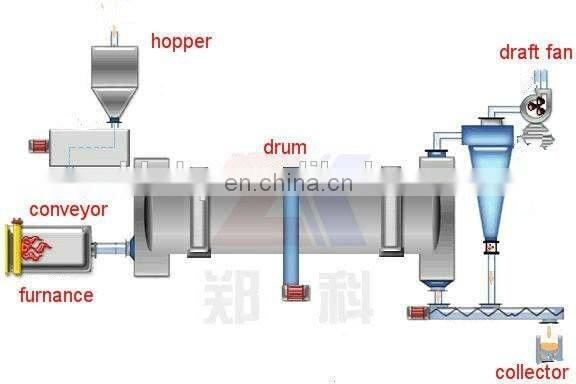

Wood chips sawdust rotary drying equipment mainly consist of drum barrel, roll ring, wheel gear, lifting board, chain, reduction gears and motor etc parts.It is matched with coneyor, dust remover and draught fan etc equipments.

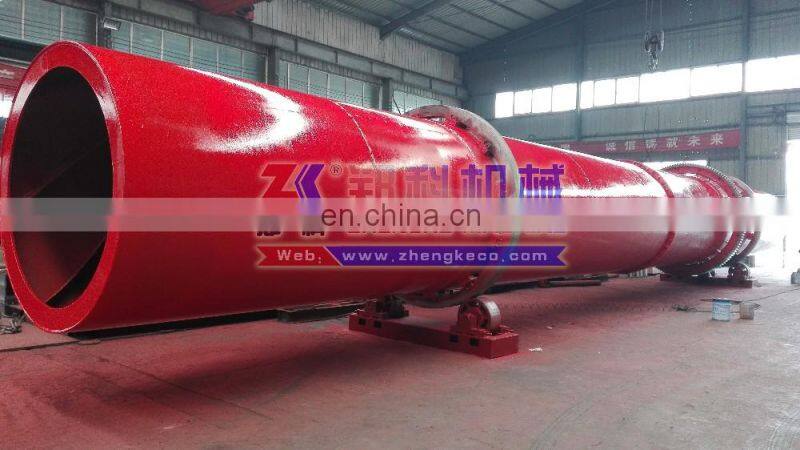

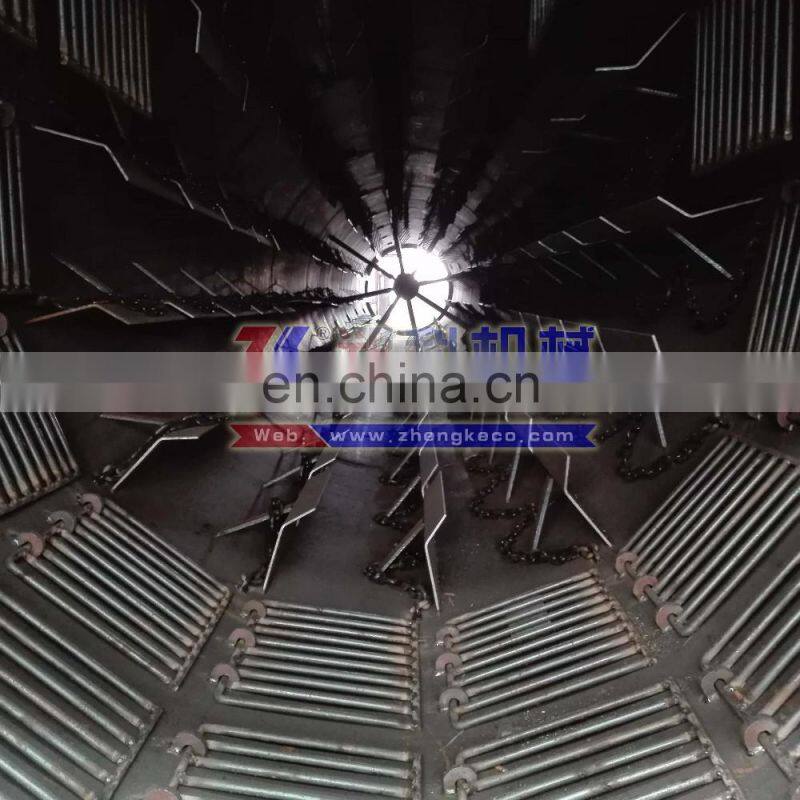

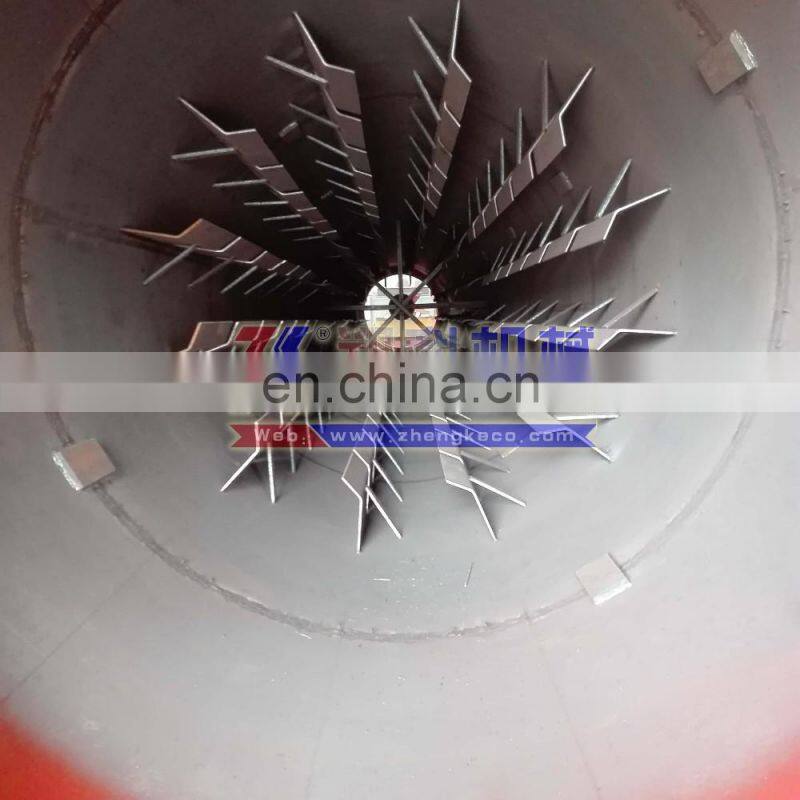

Internal structure of wood chips sawdust rotary drying equipment

Accessory equipment of wood chips sawdust rotary drying equipment

Discharge cover                                                               Feeding cover

Transmission motor

Carrier roller
Raw Material

The raw material of wood chips sawdust rotary drying equipment

Wood chips sawdust rotary drying equipment is a kind of drying equipment used to minimize the moisture content of the material it is processing. Wood chips sawdust rotary drying equipment is used for drying mill scale, brown coal, sand, clay, mineral powder, sawdust, coal, sludge, coal slurry, brown coal, flay ash, gypsum, and other material.

Working Principle

The working principle of Wood chips sawdust rotary drying equipment

Wood chips sawdust rotary drying equipment is rotating cylinder with horizontal line and a slightly sloping. The heat carrier and materials flow into the cylinder. With the rotation of cylinder, the materials move to the drum barrel under the gravity. During the materials move, which directly or indirectly get the heat, so that the wet materials to be dried. Then the dry materials at the discharge will be sent out by the belt mesh.

Product Parameter

The product parameter of Wood chips sawdust rotary drying equipment

Model
(mm)
Gradient
( °)
Speed
(r/m)
Power
(kw)
Capacity
(t/h)
Weight
( t )
ZKRD600×6000
3-5
3-8
3
0.5-1.5
2.9
ZKRD800×8000
3-5
3-8
4
0.8-2.0
3.5
ZKRD800×10000
3-5
3-8
4
0.8-2.5
5.6
ZKRD1000×10000
3-5
3-8
5.5
1.0-3.5
6.7
ZKRD1700×10000
3-5
3-8
7.5
1.8-5
14.5
ZKRD1200×12000
3-5
3-8
11
2-6
14.8
ZKRD1500×12000
3-5
2-6
15
3.5-9
17.8
ZKRD1800×12000
3-5
2-6
18.5
5-12
25
ZKRD1800×14000
3-5
2-6
18.5
5-15
27
ZKRD1800×20000
3-5
2-6
22
8-20
30
ZKRD2000×18000
3-5
2-6
30
8-23
45
ZKRD2200×18000
3-5
1.5-6
37
10-25
48
ZKRD2200×20000
3-5
1.5-6
37
12-28
56
ZKRD2400×20000
3-5
1.5-5
45
18-30
60
ZKRD2800×20000
3-5
1.5-5
55
20-35
68
ZKRD3000×20000
3-5
1.5-5
55
25-40
78
ZKRD3000×25000
3-5
1.5-5
75
30-45
104.9

Note:Above technical parameters are for reference,can be separately designed according to customer's actual situation.


Certifications

The certification of Wood chips sawdust rotary drying equipment

Our company develops and through continuous reforms, and was awarded the title of "Excellent Management Standard Enterprise"by Ministry of Agriculture and took the leading position to obtain ISO9001 international quality system management certification in 2002.Briquette machine series are also with CE certificate.

FAQ

Q:About your company, do you have own factory?


A: Zhengzhou Kehua Industrial Equipment Co., Ltd is a professional mauufacturer, which has over 20 years experience. We also have special team to provide desinging for customers.


Q: What circumstances should the raw materials need to dry?

A:Raw material or product content moisture more than 10%~12%.

If you have another question, please feel free to contact us as below:

Mavis Tao

QQ: 1514197990

Whats App:0086-18838963952

Tel: 0086-18838963952

Skype: 0086-18838963952

Customer Photo

The customer of Wood chips sawdust rotary drying equipment

Wood chips sawdust rotary drying equipment active demand in more than 20 countries such as Malaysia, India, Philippine, Northern Ireland of United Kingdom, Indonesia, Australia, Israel, Moldova, Oman, Egypt, United States, South Africa, Russia etc..
