Marine electronics maritime navigation communication model furuno 1815 CCS 4kw36nm radome 8.4'' display ship boat marine radar



Please contact me before purchasing for the shipment and price and detailed configuraiton.

If you want to make bulk purchase or be our agent, please contact with us.



Fully Automatic Gain for Simplified Use

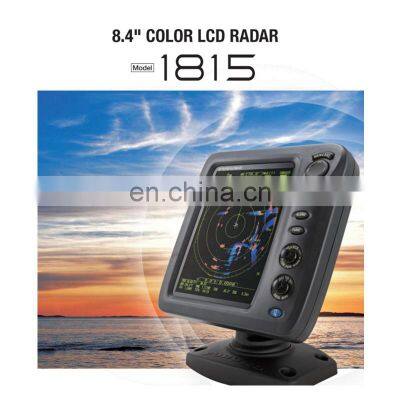

MODEL1815 is an 8.4” color LCD radar designed for pleasure craft and small fishing boats.

The Radar has easy-to-use, intuitive controls, while maintaining the high performance you expect from FURUNO products.

Even in poor visibility such as fog or storms, the radar produces detailed pictures of coastline and targets at short ranges by utilizing narrow pulses and dual IF bandwidths.

The waterproof display makes it ideal for exposed installations, such as fly bridges.
MODEL1815 utilizes our Fast Target Tracking™, True Trail Mode and True View Mode technologies to ensure optimum performance in detecting and ranging targets of interest.



Features



Compact Radome antenna with 4 kW transmitter output power
Low power consumption of 38 W at the most
Easy installation and intuitive operation
Advanced auto-adjust settings for Gain/Sea clutter/Rain clutter
Fast Target Tracking™ (TT) function

Specifications

ANTENNA

Peak Output Power: 4 kW

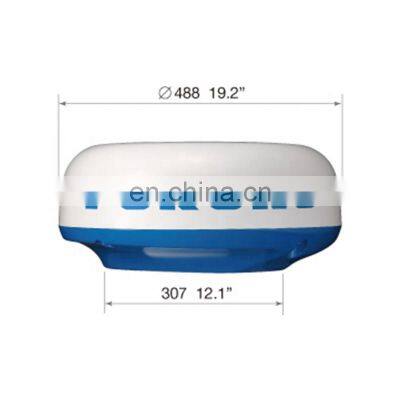

Type: 488 mm (19") radome
Frequency: 9410 MHz ± 30 MHz
Beam Width (Horizontal): 5.2°
Beam Width (Vertical): 25°
Range Scales: 0.0625 - 36 NM
Minimum Range: 25 m
Antenna Rotation Speed: 24 rpm
Weight: 6.5 kg 14.3 lb

DISPLAY

Display Unit: 8.4" color LCD
Display Mode: Head-up, Course-up*, North-up*, True view, True motion**
* Heading data required
** Heading data and position data required
Other Mode / Functions: Fast Target Tracking™ (TT), AIS, Echo Trails
Weight:
Bracket mount: 2.2 kg 4.9 lb
Flush mount: 1.6 kg 3.5 lb

ENVIRONMENT

Temperature:
Antenna unit: -25°C to +55°C
Display unit: -15°C to +55°C
Waterproofing:
Antenna unit: IPX6
Display unit: IP56

POWER SUPPLY

Power Supply / Consumption Current
12-24 VDC, 3.2-1.6 A

Equipment List

Standard

  • Display UnitRDP-157
  • Antenna UnitRSB-127-120
  • Antenna Cable10/15/20/30 m specify when ordering
  • Power Cable3.3 m
  • Spare Parts & Installation Materials

Option

  • Antenna BracketOP03-209
  • External BuzzerOP03-21
  • NMEA Data ConverterIF-NMEA2K2
  • Flush Mount Kit
