Marine electronics maritime navigation communication model furuno 1835 CCS 4kw 36nm10.4'' display ship boat x band marine radar



Please contact me before purchasing for the shipment and price and detailed configuraiton.

If you want to make bulk purchase or be our agent, please contact with us.



Bringing a new level of quality, operability and reliability into marine radars

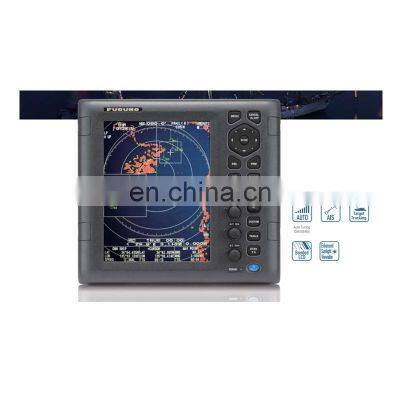

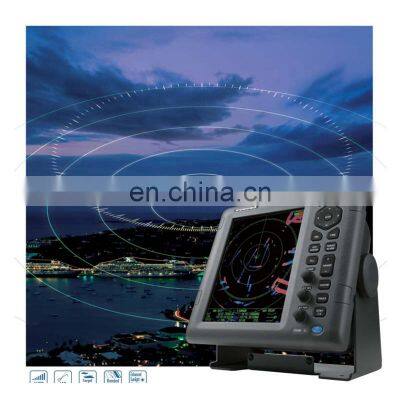

The MODEL1835 Radar is a high contrast 10.4" color LCD radar designed for a wide range of vessels including pleasure craft, fishing boats and work boats.

This new radar offers crystal clear target presentation with automatic Gain/Sea/Rain controls to deliver noise-free radar presentation.

It features superb detection of even small targets both at short and long range. It also boasts all-new display modes which will assist you with navigating safely on all waters.



Features



Easy-to-install 10.4" portrait color LCD (350 cd) display
Bonded LCD provides clear view in all weather conditions
Stable AIS/TT target-tracking with zoom display function
Full Screen Mode lets operators observe a wider range around the vessel
Enhanced auto tuning/gain/anti-clutter controls
Echoes in yellow, green, orange or multiple colors



Specifications

ANTENNA

Peak Output Power: 4 kW
Type: ø602 mm Radome (24'')
Frequency: 9410±30 MHz (X-band)
Beam Width (Horizontal): 4.0°
Beam Width (Vertical): 20°
Range Scales: 0.0625-36nm
Antenna Rotation Speed: 24 rpm
Weight: 8 kg

DISPLAY

Display Unit
10.4'' color LCD (640 x 480, VGA)
Display Mode
Head-up, Course-up*, North-up*, True view*, True motion**
* Heading data required
** Heading and position data required
Other Mode / Functions
ARP/AIS display*1, Target tracking*2, User programmable keys, Echo trails
*1 Requires AIS transponder/receiver installed
*2 Requires heading and speed data
Weight
5.4 kg

ENVIRONMENT

Temperature
Display unit : -15°C to +55°C
Antenna unit : -25°C to +55°C
Waterproofing
Display unit : IP55
Antenna unit : IP26

POWER SUPPLY

Power Supply / Consumption Current
12-24 VDC: 4.1-2.0 A

Equipment List

Standard

  • DISPLAY UNIT RDP-152-E1 UNIT
  • RADOME ANTENNA UNIT RSB-0071-0571 UNIT
  • INSTALLATION MATERIALS including Antenna Cable and SPARE PARTS1 SET

Option

  • AUTO PLOTTERARP-11
  • CABLE ASSEMBLY
  • SIGNAL CABLE ASSEMBLY5 M
    10 M
  • ANTENNA CABLE ASSEMBLY10 M
    15 M
    20 M
    30 M
  • SIGNAL CABLE ASSEMBLY10 M (for Sub)
    20 M (for Sub)
    30 M (for Sub)
  • EXTERNAL ALARM BUZZER
  • RADOME MOUNT
  • RECTIFIER (CHINA)PR-62 (100/220 VAC)
