Marine Electronics Maritime Navigation Communication ICOM MR-1220 CCS 4kw 6KW 12.1'' Display Ship Boat Marine Navigation Radar
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marine Electronics Maritime Navigation Communication FR-8065 8**5 CCS 6kw 72nm 12.1'' Display 4FT 6FT Ship Boat Marine RadarNegotiableMOQ: 1 -
Marine Electronics Maritime Navigation Communication Furuno FAR-1513 BB CCS 12kw 96nm 4FT or 6FT Antenna Ship Marine RadarNegotiableMOQ: 1
-
Marine Electronics Maritime Navigation Communication Furuno FAR-1518 BB CCS 12kw 4FT 6.5FT 8FT Antenna Ship Marine X Band RadarNegotiableMOQ: 1
-
Marine Electronics Maritime Navigation Communication FAR-1523 BB CCS 25kw 96nm 4FT 6FT Antenna Ship Marine X Band RadarNegotiableMOQ: 1
-
Marine Electronics Maritime Navigation Communication FURUNO IMO FAR-2218 BB 22X8 Series CCS 12kw Ship Boat X Band Marine RadarNegotiableMOQ: 1
Please contact me before purchasing for the shipment and price and detailed configuraiton.
If you want to make bulk purchase or be our agent, please contact with us.

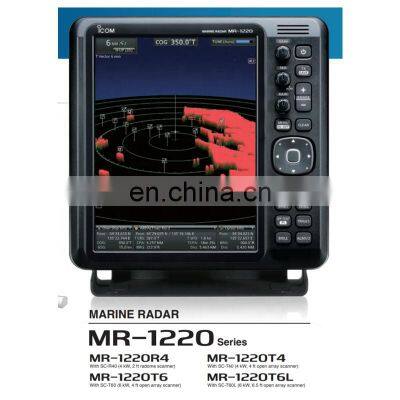

MARINE RADAR
MR-1220
Series

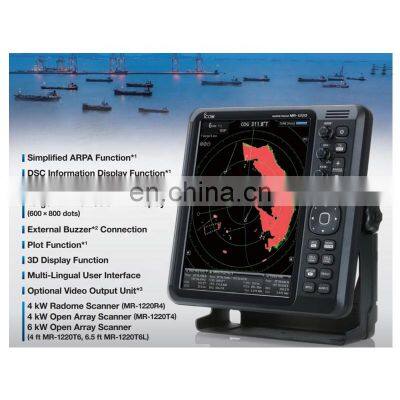

12.1-inch Color Radar with Simplified ARPA & 3D View
- 2 ft, 4 kW Radome ScannerMR-1220R4
4 ft, 4 kW Open Array ScannerMR-1220T4
4 ft, 6 kW Open Array ScannerMR-1220T6
6 ft, 6 kW Open Array ScannerMR-1220T6L
Simplified Automatic Radar Plotting Aids (ARPA) Function
The simplified ARPA function*1 *2 assists you to prevent your vessel from
colliding with other vessels or objects. When a target enters the preset watch area, it is automatically tracked on the radar echo. By selecting one of the targets, the target information, such as position, course, speed, CPA (Closest Point of Approach), TCPA (Time to CPA), bearing, and distance is displayed. When a target enters the CPA, or it exceeds the set TCPA, an alarm sounds to warn you.
Digital Selective Calling (DSC) Information Display function
When connected to a DSC radio and a DSC call is received, the received message is displayed on the MR-1220*1. The function shows the DSC message, and the location where the DSC call is transmitted. Up to 20 DSC messages can be plotted. A Man Overboard waypoint can also be displayed.
Display Unit
| DISPLAY UNIT | MR-1220R4 | MR-1220T4 | MR-1220T6 | MR-1220T6L |
|---|---|---|---|---|
| Display | 12.1-inch color TFT LCD | |||
| Resolution (H × V) | 600 × 800 dots | |||
| Minimum range | 25 m; 82 ft (at 1/8 NM range) | |||
| Maximum range | 36 NM | 48 NM | 72 NM | 72 NM |
| Power supply requirement | 12/24 V DC | |||
| Dimensions (W × H × D; projections not included) | 301 × 323.5 × 119.2 mm | |||
| Weight (approx.) | 4.8 kg | |||
| Usable temperature range | −15 °C to +55 °C | |||
| Power consumption (approx.) | 60 W | 70 W | 80 W | 90 W |
| Available scanner unit | 2 ft (60 cm) radome | 4 ft (120 cm) open array | 4 ft (120 cm) open array | 6.5 ft (200 cm) open array |
Scanner Unit
| SCANNER UNIT | SC-R40 (MR-1220R4) |
SC-T40 (MR-1220T4) |
SC-T60 (MR-1220T6) |
SC-T60L (MR-1220T6L) |
|
|---|---|---|---|---|---|
| Type | 2 ft (60cm) radome | 4 ft (120 cm) open array | 4 ft (120 cm) open array | 6.5 ft (200 cm) open array | |
| Peak output power | 4 kW | 4 kW | 6 kW | ||
| Rotation speed | 24, 36 rpm typical | 24, 36 rpm typical | 22, 24, 36 rpm typical | ||
| Beamwidth | Horizontal | 4° typical | 2° typical | 2° typical | 1.2° typical |
| Vertical | 22° typical | 23° typical | 23° typical | 23° typical | |
| Sidelobe | −22 dB typical | −24 dB typical | −24 dB typical | −27 dB typical | |
| Transmission frequency | 9410 MHz ±30 MHz | 9410 MHz ±30 MHz | 9410 MHz ±30 MHz | ||
| Dimensions (W × H × D; projections not included) | 640 × 256 × 640 mm | 1217 (dia.) × 395 (H) mm | 1217 (dia.) × 395 (H) mm | 1995 (dia.) ×395 (H) mm | |
| Weight (approx.) | 8 kg | 18 kg | 18 kg | 20 kg | |
| Usable temperature range | –25 °C to +70 °C | –25 °C to +70 °C | –25 °C to +70 °C | ||
| Connection cable | 15 m (OPC-2341) |
20 m (OPC-2342) |
20 m (OPC-2342) |
||
