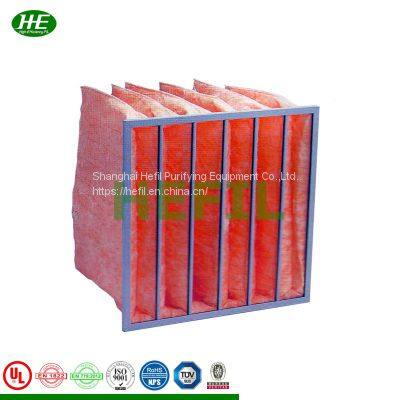

Help CenterPocket Filter Fiberglass Professional Central Air Conditioner Pocket Bag Filter Dust Collector For HVAC Fiberglass Pocket Filter
Related Products
-
AHU Bag Filter / Synthetic Fiber Pocket HVAC Air Filter ManufacturerUS$ 5 - 20MOQ: 1 Piece -
Synthetic Fiber Pocket FilterUS$ 5 - 20MOQ: 1 Piece
-
Medium Efficiency Pocket Filter for HAVC IndustryUS$ 5 - 20MOQ: 1 Piece
-
Medium-Efficiency Panel FilterUS$ 2.5 - 50MOQ: 1 Piece
-
Pocket Filters Synthetic Fiber Bag Air Filter With Aluminum FrameUS$ 5 - 20MOQ: 1 Piece
Advantages
Filter efficiency ranges from M5 to F8.
Filter material is made of extremely detailed special fiberglass, enhanced with non-woven composite. It has a high dust-holding capacity.
Fire-protection class: UL-900 Class 2.
The filter frame is made of aluminum alloy, galvanized steel or stainless steel.
Has passed international UL certification and meet EN779:2012.
Material Instructions
Media: Extremely detailed special fiberglass.
Frame: Galvanized plate, aluminum or stainless steel plate, the usual thickness are 21mm, 25 mm or 45 mm.
Temperature: maximum 200°C in continuous service.
Application
Suitable for the electronics, bio-pharmaceutical, machinery, instrumentation, petrochemical and light industry as general air purification systems.
Structure Drawings
| Common Specifications | |||||||
| Model | Dimensions | No. of Pockets | Media Area (m2) | Initial Pressure Drop (Pa) @ Rated Air Flow (m3/h) | |||
| W×H×D (mm) | M5 40~45% | M6 60~65% | F7 80~85% | F8 90~95% | |||
| HBG-24×24×36-10P | 592×592×915 | 10 | 12.0 | - | 87@5100 | 110@4250 | 125@4250 |
| HBG-24×24×30-10P | 592×592×762 | 10.0 | - | 85@5100 | 78@3400 | 105@3400 | |
| HBG-24×24×22-10P | 592×592×558 | 7.4 | - | 80@3400 | 120@3400 | 130@3400 | |
| HBG-24×24×15-10P | 592×592×381 | 5.2 | - | 87@2550 | 115@2550 | 150@2550 | |
| HBG-24×24×36-8P | 592×592×915 | 8 | 9.8 | - | 77@4250 | 88@3400 | 110@3400 |
| HBG-24×24×30-8P | 592×592×762 | 8.2 | - | 82@4250 | 96@3400 | 125@3400 | |
| HBG-24×24×22-8P | 592×592×558 | 6.1 | - | 110@3400 | 105@2550 | 125@2550 | |
| HBG-24×24×15-8P | 592×592×381 | 4.2 | - | 102@2550 | 95@1700 | 140@1700 | |
| HBG-24×24×36-6P | 592×592×915 | 6 | 7.6 | - | 75@3400 | 110@3400 | 130@3400 |
| HBG-24×24×30-6P | 592×592×762 | 6.4 | 44@3400 | 72@3400 | 120@3400 | 115@2550 | |
| HBG-24×24×22-6P | 592×592×558 | 4.7 | 53@3400 | 87@2550 | 130@2550 | 120@1700 | |
| HBG-24×24×15-6P | 592×592×381 | 3.3 | 65@3400 | 82@1700 | 125@1700 | 140@1250 | |
| HBG-20×24×36-5P | 492×592×915 | 5 | 6.3 | - | - | - | 130@3000 |
| HBG-20×24×30-5P | 492×592×762 | 5.3 | 44@2800 | 70@3000 | 115@3000 | 125@2550 | |
| HBG-20×24×22-5P | 492×592×558 | 3.9 | 53@2800 | 107@3000 | 140@2550 | 115@1500 | |
| HBG-20×24×15-5P | 492×592×381 | 2.7 | 65@2800 | 102@2100 | 130@1500 | 110@1000 | |
| HBG-20×20×36-5P | 492×492×915 | 5 | 5.4 | - | - | - | 130@2550 |
| HBG-20×20×30-5P | 492×492×762 | 4.5 | 44@2300 | 70@2550 | 115@2550 | 125@2100 | |
| HBG-20×20×22-5P | 492×492×558 | 3.3 | 53@2300 | 107@2550 | 140@2100 | 115@1250 | |
| HBG-20×20×15-5P | 492×492×381 | 2.3 | 65@2300 | 102@1700 | 130@1250 | 110@850 | |
| HBG-12×24×36-3P | 287×592×915 | 3 | 3.7 | - | - | - | 145@1700 |
| HBG-12×24×30-3P | 287×592×762 | 3.1 | 44@1700 | 77@1700 | 125@1700 | 125@1250 | |
| HBG-12×24×22-3P | 287×592×558 | 2.3 | 53@1700 | 87@1250 | 135@1250 | 105@850 | |
| HBG-12×24×15-3P | 287×592×381 | 1.6 | 65@1700 | 82@850 | 125@850 | - | |
Note: HEFIL makes various of other models' HBG filter not listed in above table. Please consult with us if you need.
The Initial Pressure Drop and Rated Air Flow Performance Curve
In case of specifications or structures changes, HEFIL will provide up-to-date data on website: .
