China Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port Onu

China Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port Onu photo-1

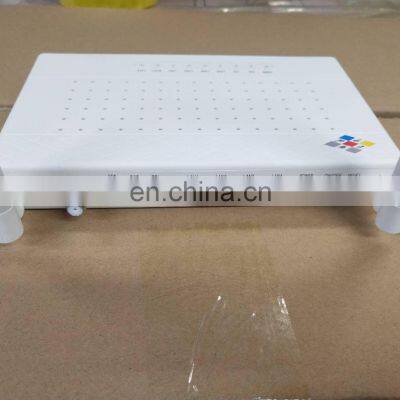

China Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port Onu photo-2

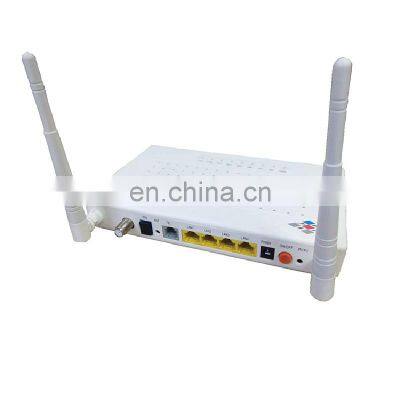

China Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port Onu photo-3

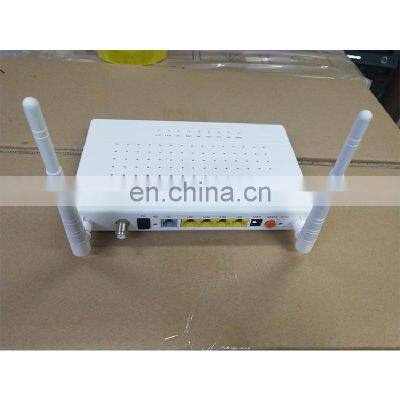

China Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port Onu photo-4

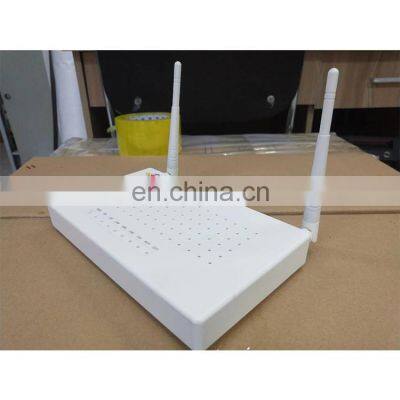

China Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port Onu photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

China Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port OnuChina Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port Onu

Parameter

Nominal

Connector style

SC/PC

Fiber style

Single mode

Wavelength

Transmitting end: 1310 +/-20nm

Receiving end: 1490 +/-10nm

PON interface standard

EPON:IEEE802.3ah

1000BASE-PX20+

GPON:ITU-TG.984.x,Class B+

PON interface receiving rate

EPON:1.244Gpbs

GPON:1.244Gpbs

PON interface transmitting rate

EPON:1.244Gpbs

GPON:2.488Gpbs

Output optical power

EPON:

Min: 0dBm        Max: +4dBm

GPON:

Min: +0.5dBm        Max: +5dBm

Optical receiver sensitivity

EPON:

Min: -8dBm        Max: -27dBm

GPON:

Min: -8dBm        Max: -27dBm

The length of the optical link

Max 20km

Standard and Protocols

IEEE 802.11b/g/n

WiFi

parameter

Frequency range

2.4~2.4835GHz



Transmitting rate

11n:270/243/216/162/108/81/54/27Mbps

135/121.5/108/81/54/40.5/27/13.5Mbps

130/117/104/78/52/39/26/13Mbps

65/58.5/52/39/26/19.5/13/6.5Mbps





IEEE 802.11g:54/48/36/24/18/12/9/6(Adaptive)





IEEE 802.11b :11/5.5/2/1M(Adaptive)



Channel

13



Spread-spectrum Technique

DSSS(Direct sequence spread spectrum)



Data modulation

DBPSK,DQPSK,CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM)



Sensitivity@PER

(Package error rate)

270M:-68dBm@10% PER;130M: -68dBm@10% PER;

108M:-68dBm@10% PER;54M:-68dBm@10% PER

11M:-85dBm@8% PER;6M:-88dBm@10% PER

1M:-90dBm@8% PER;(typical data)

China Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port OnuChina Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port Onu




China Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port OnuChina Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port OnuChina Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port OnuChina Shandong Yatai 5g Wifi Router Xpon 1ge 3fe Pot Sc Upc Catv 4 Port Onu
