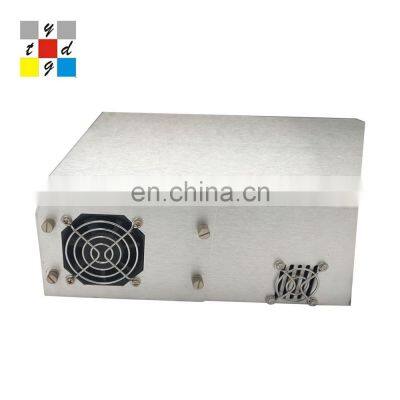

1550nm Booster Fiber Catv Optical Amplifier Edfa With Wdm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Price 1550nm High Power Optical Amplifier 16 Port Edfa for FtthNegotiableMOQ: 1 -
16 Puertos 23 db Catv Edfa 1550nm Fiber Optical Amplifier With WdmNegotiableMOQ: 1
-
Low Price 1310nm 32 Port 1550nm Dwdm Catv Optical Amplifier Edfa for FtthNegotiableMOQ: 1
-
1550nm Fiber Optic Equipment High Power Catv Edfa Amplifier Wdm EdfaNegotiableMOQ: 1
-
Warranty 3 Years 1550 High Power Amplifier Fiber Optic 8 Port 23DBM Cwdm Wdm Optical Edfa Amplifier PriceNegotiableMOQ: 1
| Operating wavelength | λc | 1540 | 1550 | 1565 | nm |
| Saturated | Po | 13 | ------ | 33 | dBm |
| Input Power | Pi | -3 | ------ | 10 | dBm |
| Gain | G | ------ | ------ | 30 | dB |
| Noise Figure Note2 | NF | ------ | ------ | 6 | dB |
| Output Power Stability | ΔPo | ------ | ±0.05 | ±0.2 | dB |
| Input Isolator | ISOi | 30 | ------ |
------ |
dB |
| Output Isolator | ISOo | 30 | ------ | ------ | dB |
| Input Pump Leakage | PLi | ------ | ------ | -35 | dBm |
| Output Pump Leakage | PLo | ------ | ------ | -45 | dBm |
| Return Loss | RL | ------ | ------ | -45 | dB |
| Polarization Dependent Gain | PDG | ------ | ------ | 0.3 | dB |
| Polarization Mode Dispersion | PMD | ------ | ------ | 0.5 | ps |
| high power edfa inside pump power | |||
| 8 ports | 16 ports | 32 ports | |
| YATAI Brand | 10+10W | 10+10+5W | 20+20+20+20W |
| Other Brand | 10W | 10+10W | 10+10+10+10W |
