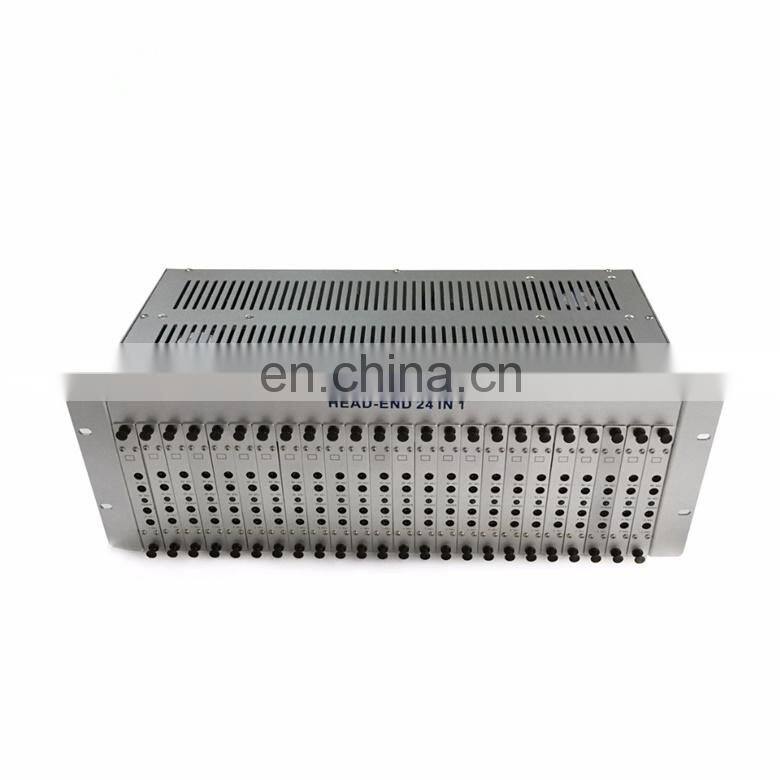

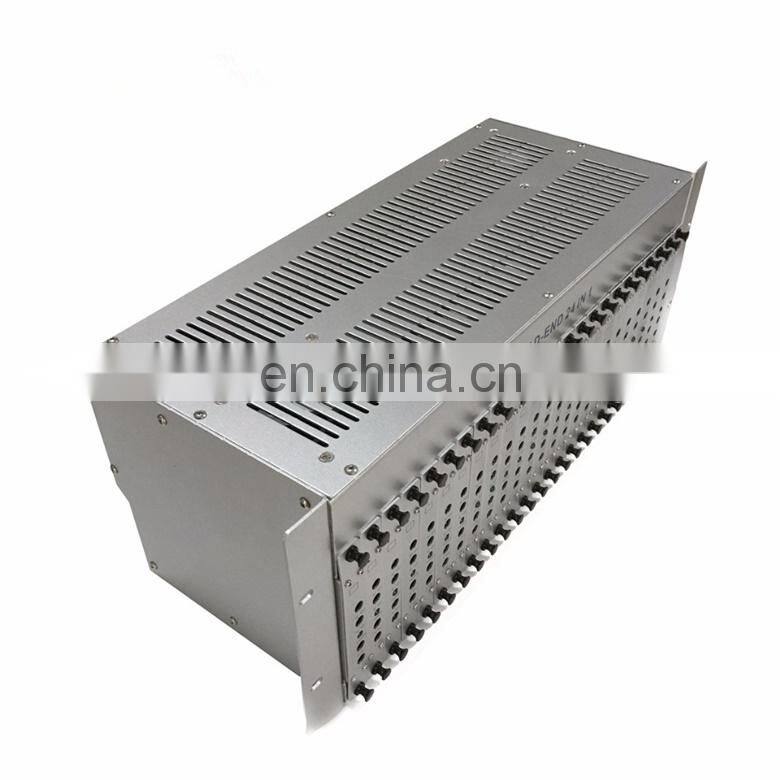

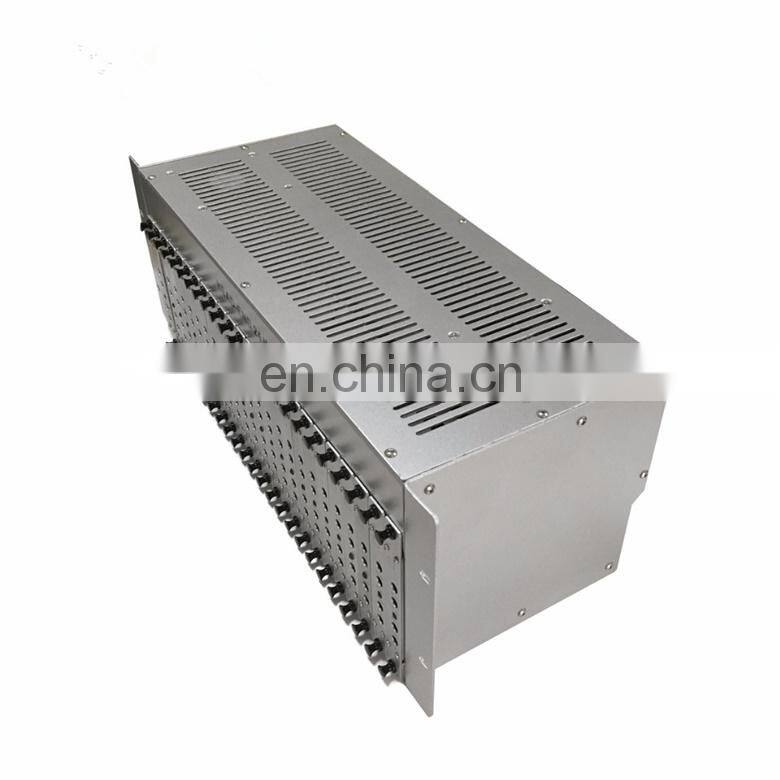

Best Price Standard Type Iptv fm Dvb Professional Audio Video Modulator
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Promotion 24 Channels 8 Carriers HD Input rf Out Digital Encoder Modulator
-
Mux Scarmbling 3316/3332 IPTV 16 Channel ip Qam Modulator
-
Digital Headend System 16/32 In 1 DVB C Modulator IP QUAM QAM Modulator
-
HOT SELLING Mux Scarmbling 3316/3332 IPTV 16 Channel ip Qam Modulator
-
Mux Scarmbling 3316/3332 IPTV 16 Channel ip Qam Modulator
-
Best Quality With Scrambler 16 PORT IP QAM Modulator
Product Description
Frequency Range | 47~860MHz (Any one channel) |
Output Level | ≥105dBμV |
Output Level Adjustment Range | 0~-20dB (Variable) |
Video to Audio Carrier | -10dB~-30dB adjustable |
Output Impedance | 75Ω |
Spurious Output Suppression | ≥60dB |
Frequency Accuracy | ≤±5KHz (VHF) , ≤±10KHz (UHF) |
Video Output Reflection | ≥12dB (VHF); ≥10dB (UHF) |
Video Input Level | 1.0Vp-p (87.5% Modulation) |
Video Input Impedance | 75Ω |
Differential Gain | ≤5% (87.5% Modulation) |
Differential Phase | ≤5°(87.5% Modulation) |
C/L Delay | ≤45 ns |
Flatness | ±1dB |
Video Modulator Depth | 0~90% (Variable) |
Video S/N | ≥55dB |
Audio Input Level | 1Vp-p (±50KHz) |
Audio Input Impedance | 600Ω |
Audio S/N | ≥57dB |
Audio Pre-weighted | 50μs |
Power Supply | AC 220V±10% 50Hz±2Hz,50W |
Working Temperature | 0~40℃ |
Dimensions | 19 Inch 4 U housing |
