Digital tv optic dvbt isdbt 24 port dvb card encoder modulator

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Offer

ProductOverview

EX2404X is a professional high integration device which includes encoding, multiplexing, and modulation. It supports 4/8/12/16/20/24 HD input, 1000M IP ouput,4 number RF output(ATSC,ISDBT,DTMBT,DVB-C/-T),5 MPTS output and SPTS output.Inconclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

Key Features

l 4/8/12/16/20/24 HD input, MPEG-4 AVC/H.264 Video encoding

l 1000M IP output over UDP and RTP protocol(MPTS and SPTS)

l 4 RF output ,(ATSC,ISDBT,DTMBT,DVB-C/-T)

l 2 ASI inputs

l 2 ASI Independent output (optional) as copy of 5MPTS

l Support “Null PKT Filter” function

l Support PID Remapping/ PCR accurate adjusting

l PID pass

l LCD,key function

l Control via web management, and easy updates via web

Specifications

Input	8HD Input
Input	1×ASI Input,BNC Interface
Video	Resolution	1920×1080_60p 1920×1080_50p
		1920×1080_60i, 1920×1080_50i
		1280×720_60p, 1280×720_50p
		720x576_50i, 720x480_59.95i
	Encoding	MPEG4 AVC/H.264 High Profile Level 4.0 for HD
	Bit-rate	0.8Mbps~19ps (each channel)
	Rate Control
	GOP Structure	IBBP
	Advanced Pretreatment	De-interlacing, noise reduction, sharpening
Audio	Encoding	MPEG-1 Layer 2, HE-AAC,LC-AAC
	Sampling rate	48KHz
	Resolution	24-bit
	Bit-rate	64Kb/s~384Kb/s each channel
Multiplexing		Multiplex 1ASI input and 8 channels hd encoding programs
Multiplexing		2×ASI outputs, BNC interface(support PID filter and pass, support real time monitoring of the output stream.
Stream output		IP out MPTS, PTS, unicast, multicast, support IP out null packets filter.
Stream output		RF Out(DVB-C: carriers; DVB-T: carriers ISDB-T)
System function		LCD/keyboard operating, network management(SNMP), English control interface Ethernet software upgrade
Genaral	Dimensions (W×D×H)	482mm×455mm×44.5mm
	Approx weight	3.2
	Temperature range	0~45℃(Operating), -20~80℃(Storage)
	Power Requirements	AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
	Power consumption	25W

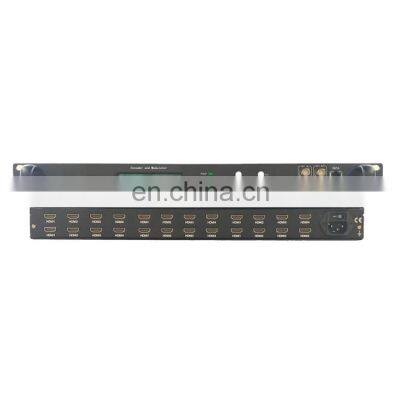

Appearance and Description

A,Front Panel

1	LCD display interface
2	Power:power indicator, lighting means the encoder has been powered on
3	Status:Status indicator, lighting means encoder working well
4	Alarm:alarm indicator, lighting means encoder working wrong
5	Left button
6	Up button
7	Down button
8	Right button
9	Menu:Menu button
10	Enter:Enter Button

B. Back panel

1~8	8 Channels HD Input
9	IP Data out
10	SNMP network interface
11	ASI Input
12,13	2 Routes ASI Out
14	Power switch
15	Power Socket
