4/8/16 channels rf digital encoder optical ip qam modulator



ProductOverview

EX2404X is a professional high integration device which includes encoding, multiplexing, and modulation. It supports 4/8/12/16/20/24 HDMI input, 1000M IP ouput,4 number RF output(ATSC,ISDBT,DTMBT,DVB-C/-T),5 MPTS output and SPTS output.Inconclusion, its high integrated

and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

Key Features

l  4/8/12/16/20/24 HDMI  input,  MPEG-4  AVC/H.264  Video encoding

l  1000M IP output over UDP and RTP protocol(MPTS and SPTS)



l  4 RF output ,(ATSC,ISDBT,DTMBT,DVB-C/-T)



l  2 ASI inputs

l  2 ASI Independent output (optional) as copy of 5MPTS

l  Support “Null PKT Filter” function

l  Support PID Remapping/ PCR accurate adjusting

l  PID pass

l  LCD,key function



l  Control via web management, and easy updates via web



Specifications

Input

8HDMI inputs

1×ASI input, BNC interface

Video

Resolution

1920×1080_60p 1920×1080_50p

1920×1080_60i, 1920×1080_50i

1280×720_60p, 1280×720_50p

720x576_50i, 720x480_59.95i

Encoding

MPEG4 AVC/H.264 High Profile Level 4.0 for HD

Bit-rate

0.8Mbps~19ps (each channel)

Rate Control

CBR/VBR

GOP Structure

IBBP

Advanced Pretreatment

De-interlacing, noise reduction, sharpening

Audio

Encoding

MPEG-1 Layer 2, HE-AAC,LC-AAC

Sampling rate

48KHz

Resolution

24-bit

Bit-rate

64Kb/s~384Kb/s each channel

Multiplexing

Multiplex 1ASI input and 8 channels hd encoding programs

Stream output

2×ASI outputs, BNC interface(support PID filter and pass, support real time monitoring of the output stream.

IP out MPTS, PTS, unicast, multicast, support IP out null packets filter.

RF Out(DVB-C:  carriers; DVB-T: carriers ISDB-T)

System function

LCD/keyboard operating, network management(SNMP), English control interface

Ethernet software upgrade

General

Dimensions

(W×D×H)

482mm×455mm×44.5mm

Approx weight

3.2

Temperature range

0~45℃(Operating), -20~80℃(Storage)

Power Requirements

AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

Power consumption

25W

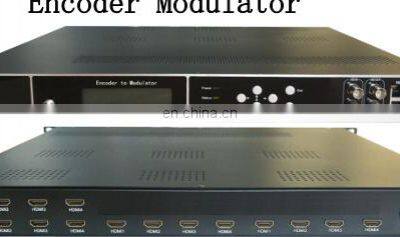

Appearance and Description

A,Front Panel

 4/8/16 channels rf digital encoder optical ip qam modulator



1

LCD display interface

2

Power:power indicator, lighting means the encoder has been powered on

3

Status:Status indicator, lighting means encoder working well

4

 Alarm:alarm indicator, lighting means encoder working wrong

5

Left button

6

Up button

7

Down button

8

Right button

9

Menu:Menu button

10

Enter:Enter Button



B,Back Panel

 4/8/16 channels rf digital encoder optical ip qam modulator



1~8

8 channels HDMI Inputs

9

IP Data out

10

SNMP network interface

11

ASI Input

12,13

2 Routes ASI Out

14

Power switch

15

Power Socket
Network Map

4/8/16 channels rf digital encoder optical ip qam modulator
