DZF-5050A Hualian Box Flap Folding Machine Semiautomatic Bottom Flap Carton Sealer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2009
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FXJ-6050 HUALIAN Carton SealerNegotiableMOQ: 1 -
FX-800B HUALIAN Automatic Gum Paper Tape Packaging MachineNegotiableMOQ: 1
-
FXJ-5050B HUALIAN Semiautomatic Carton Sealer Plastic BOPP Water-free Adhesive Tape PVC Adhesive Tape 635-780 Paint 20 60NegotiableMOQ: 1
-
FX-800 Hualian Water-activated Gum Kraft Paper Gummed Tape DispenserNegotiableMOQ: 1
-
FXJ-5050B Hualian Carton Sealing MachineNegotiableMOQ: 1
Product Description
Description:

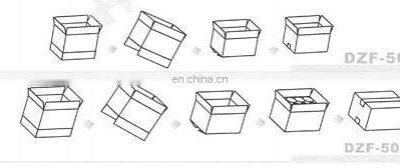

1. Model DZF series Semi Automatic Box Flap Folding Machine can fold bottom flaps and seal bottom automatically after the carton being opened manually, which can be equipped into production line.
2. After the carton being opened manually, DZF-A Semi Automatic Box Flap Folding Machine can fold bottom flaps automatically, then the carton will be filled manually, at last the machine will seal both bottom and up flaps automatically. The machine can be equipped into production line.
1. Model DZF series Semi Automatic Box Flap Folding Machine can fold bottom flaps and seal bottom automatically after the carton being opened manually, which can be equipped into production line.
2. After the carton being opened manually, DZF-A Semi Automatic Box Flap Folding Machine can fold bottom flaps automatically, then the carton will be filled manually, at last the machine will seal both bottom and up flaps automatically. The machine can be equipped into production line.
Product Paramenters
DZF-5050A | |
Voltage (V/Hz) | AC 220/50 110/60 |
Power (W) | 180 |
Air Compressor (Mpa) | 0.5～0.6 |
Speed (m/min) | 22 m/min（10 cartons/min） |
Max. Carton Size (L×W×H)(mm) | 600×500×400 |
Min. Carton Size (L×W×H)(mm) | 200×160×110 |
Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
Width of Adhesive Tape (mm) | 48，60，76（optional） |
External Dimensions (L×W× H)(mm) | 2200×860×1700 |
Net Weight (kg) | 280 |
Product packaging
Model | DZF-5050A |
Pcs/CTN (pc) | 1 |
Package Type | W/C |
Gr. Wt. (kg) | 316 |
Net. Wt. (kg) | 256 |
Length（CM） | 216 |
Width（CM） | 102 |
Height（CM） | 185 |
Single piece volume(CBM) | 4.076 |
Company Profile
FAQ
Q: Are you a factory or a trading company?
A: We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have video of every standard machine and can send to you by Email or other way you want.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Online Payment to pay.
Q: Do you have any certificate?
A:We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Q: Why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market, it may be indeed possible that some machine models are similar as others. What we may think is that the machine model does not make big difference. And the criteria for machines may depend on the technical support and quality of the machines.
Q: When your company was founded?
A: Hualian Machinery Group Co., Ltd. was established in 1989.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spares parts could be provided at any time.
3) We have dealers in some countries to offer compensable service.
Q: Why your price is higher than many suppliers in China?
A: Hualian is old and famous brand of packing machines and we offer machines in high quality and consummate service from inquiry to after-sale.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have video of every standard machine and can send to you by Email or other way you want.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Online Payment to pay.
Q: Do you have any certificate?
A:We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Q: Why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market, it may be indeed possible that some machine models are similar as others. What we may think is that the machine model does not make big difference. And the criteria for machines may depend on the technical support and quality of the machines.
Q: When your company was founded?
A: Hualian Machinery Group Co., Ltd. was established in 1989.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spares parts could be provided at any time.
3) We have dealers in some countries to offer compensable service.
Q: Why your price is higher than many suppliers in China?
A: Hualian is old and famous brand of packing machines and we offer machines in high quality and consummate service from inquiry to after-sale.
