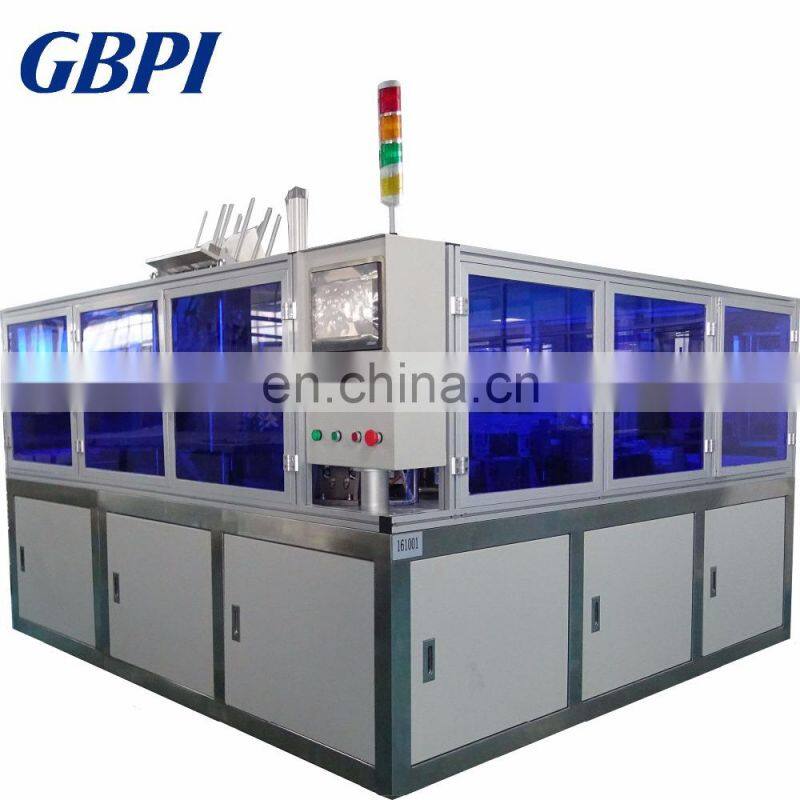

GF1600-B Spout Sealing Machine
Spout Sealing Machine
Functions:

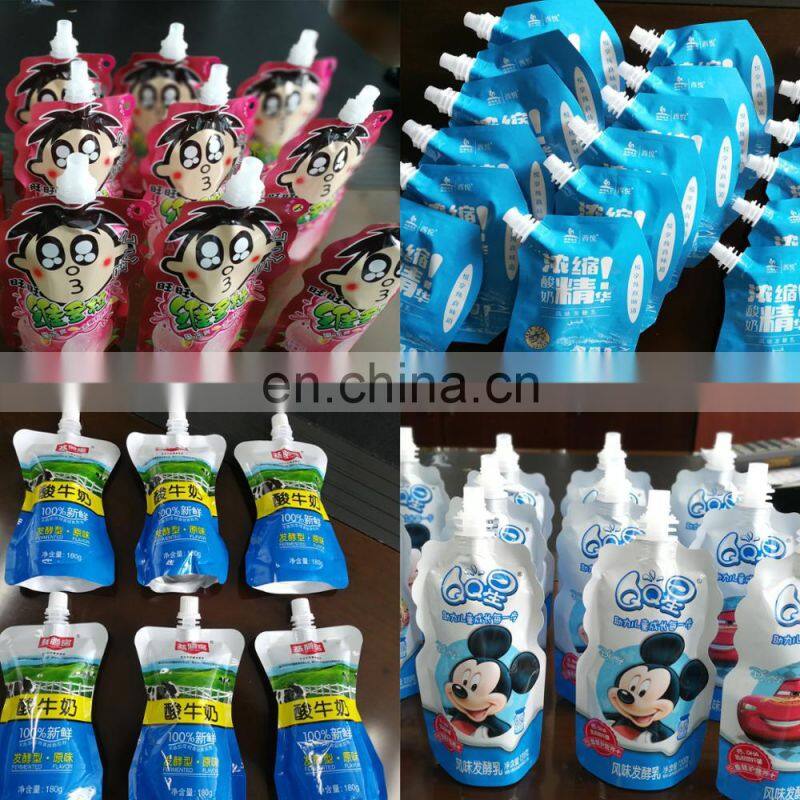

GF1600-B Spout Sealing Machine is specialized for inserting spouts and sealing bags fully automatically. It is applied to a variety of spouts and bags of different diameters and lengths, such as standing-up bags, 3-side sealing bags, and doypacks.
Techinical Parameter:
Heat sealing speed |
0~90pcs/min |
Bag width |
60-120mm |
Bag length |
70-230mm |
Total power |
13KW |
Sealing bar group |
2 groups x 6 (12 work stations) |
Power supply |
380V, three-phase, four-wire |
Location precision |
≤ ±0.02mm |
Gas supply pressure |
0.6-0.8MPa |
Heat sealing method |
two-way (back and front) sealing bars, pneumatic power drive |
Types of sealing bars |
preheating 1 group, heat sealing 4 groups, cooling 1 group |
Temperature meters |
10 pcs |
Temperature control method |
PID control, K type sensor |
Temperature accuracy |
±0.1℃ |
Temperature range |
normal ~ 300℃ |
Spout input control |
photoelectric sensor detection, sensitivity ≤ 0.5MM |
Bag input system |
double work stations, pneumatic power drive |
Bag output system |
pneumatic power drive |
Failed bag detection |
photoelectric switch |
Total weight |
2000kg |
Features:
1. Fully automatic; a single set of machine needs only one operator, and the operator just needs to load enough spouts and bags at intervals.
2. Adopting round disc structure, the equipment occupies little space.
3. All the components are made of aluminum and stainless steel, and meet the hygienic and quality requirements of food, pharmaceutical, environmental and industries.
4. Easy to use with precise control; runs stably and works long hours continuously.
5. Adopts Toshiba temperature control module, SMC pneumatic component, Toshiba PLC control unit to insure the quality, performance, and life of the machine.
6. Automatically detects faults, gives alarms, stops, diagnoses and show where the fault is.
Factory View:
Certifications:
Our Customer:
Our Service:
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
Our Lab:
Our Team:
Why Choose Us Contact Us?
1.We are the largest packaging test equipment manufacturer in China.
2. We are the only reference materail certificated supplier in the world.
3. Most of the provincial, municipal FDA using our testers in China.
