Equivalent Parker Wire Wound Filter T23R40AZ

1. Wire Wound Filter Introduction


T23R40AZ is made of textile fiber roving, which is tightly wrapped on porous skeleton according to the specific process, forming a honeycomb structure that is loose outside but tight inside. Wire-wound filter with eminent filtering feature can effectively remove the impurity substance in the fluid, such as suspended matter, rust and particle.

Wire Wound Filter Application field

Pre filtering treatment of drinking water

Filtration of acid and lye liquid in chemical process

Filtration of industrial chemicals and organic solvent

Pre filtering of reverse osmosis in RO

Filtration of serous fluid such as syrup, chocolate

Filtration of developing liquid, ink

Pre filtration of sterile water and ultrapure water

Treatment of industrial water and plating solution

Wire Wound Filter Product features

Wire-wound filter element is made of textile fiber yarn, which is tightly wrapped on porous skeleton, and its different filtering precision is controlled by the winding density of filtering layer and shapes of filter hole

It can withstand high filtration pressure

It has a wide range of chemical compatibility

A variety of materials can be used to make this filter element in order to adapt to the demand of different liquid filtration

The structure of filter aperture with deep filtering effect is loose outside and tight inside

With the small pressure drop and large pollutant-carrying capacity this filter element can effectively remove suspended matters and particles in liquid.

Outer diameter: 62 mm, 110 mm

Inside diameter: 28 mm, 30 mm

length:9.75'',9.87'',10'',20'',30'',40''

Parts material:

Filter material: polypropylene (PP), absorbent cotton, glass fiber

Center rod: polypropylene and stainless steel

Filter performance:

Filtering accuracy: 0.5μm, 1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 75μm,100μm

Polypropylene wire-wound filter element can be used in chemical solvents such as acid and alkali, organic solution, and the suggested highest operating temperature is 60 ºC or less.

The center rod of absorbent cotton fiber filter is made of stainless steel, and it can be used in organic solution, water, oil, alkaline solution, beverage, and medicine etc.

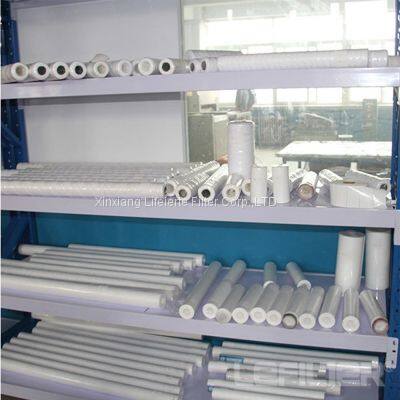

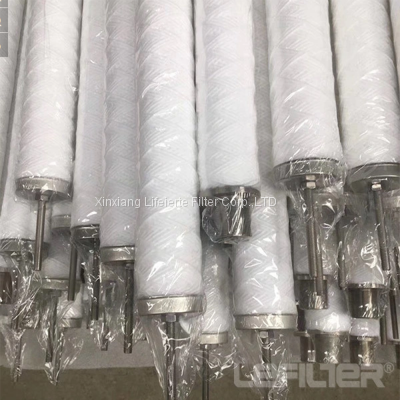

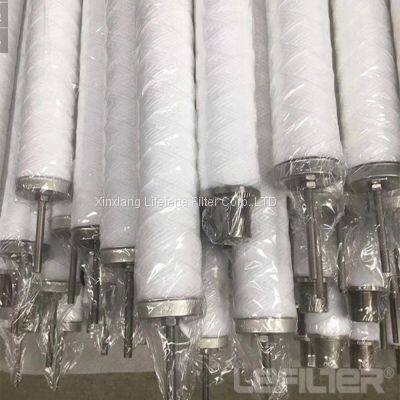

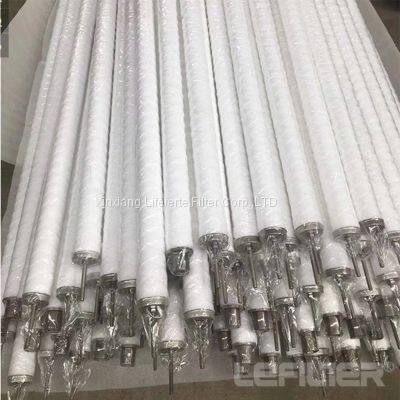

Wire Wound Filter Photo
