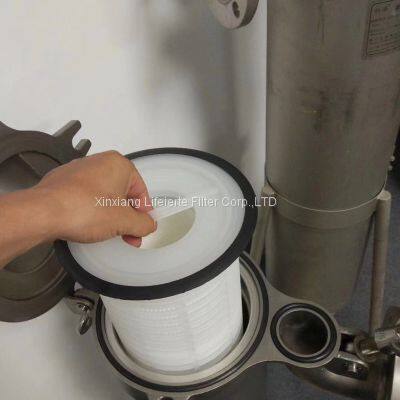

Pall High Flow Water Filter HFU620UY045

The high-flow folding filter uses deep fine polypropylene or glass fiber membrane as the filter material. It has a large diameter of 6 inches / 152mm, no central rod, one-way opening, and specially designed inside-to-outside filter direction to ensure all pollution. The particles are trapped inside the filter element. The ultra-large flow design significantly reduces the amount of filter cartridges and filter housing , greatly reducing equipment input costs and labor costs.

Features:

[ High filtration area, large flux]

The filter element has a large effective filtration area, low pressure drop and large flow.

[ Large dirt holding capacity and long life]

The deep fine membrane material is used to scientifically design the multi-layer gradient pore filter structure, which makes the filter element have the characteristics of high dirt concentration, thereby prolonging the service life of the filter element and saving the user cost.

[A variety of specifications can be selected]

A wide range of filtration accuracy from 0.5μm to 100μm is available to meet different filtration levels. The length specifications can be selected from 20", 40", and 60".

Product Specifications:

Product Size

[Outer diameter]: Ø 152mm

[length]: 20 ”, 40 ”, 60 ”

Structural materials

[ Filter media ]: PP / glass fiber

[Shell/Center Rod/End Cover]: PP

[ Sealing material ]: silicone rubber, ethylene propylene rubber, fluoro rubber, Teflon fluoro rubber

Technical performance

[Maximum operating temperature]: 80 ° C

[Maximum working pressure difference]: 3 bar@ 21°C

Dimensions

Flow rate chart
