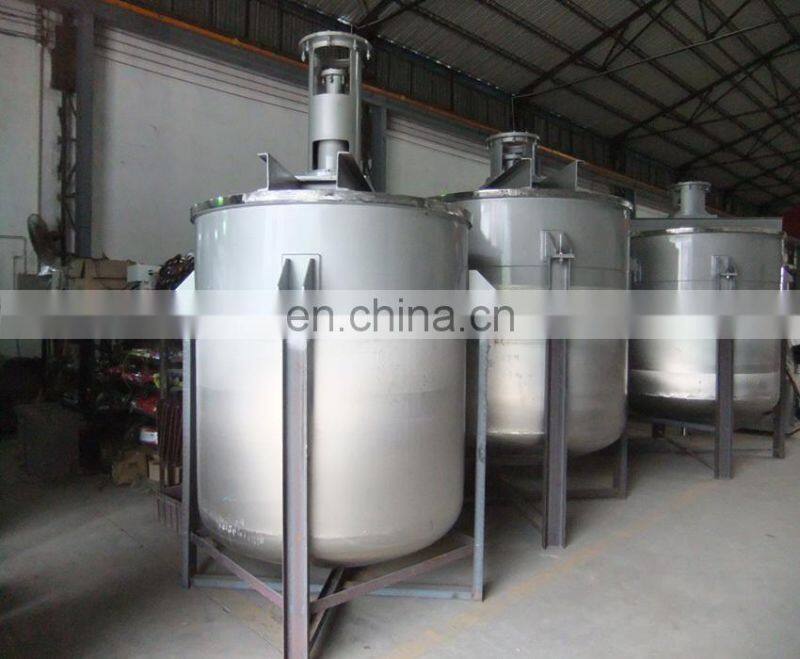

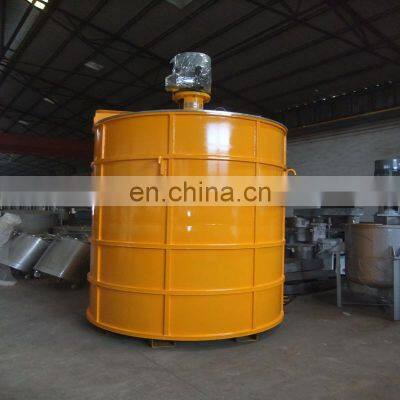

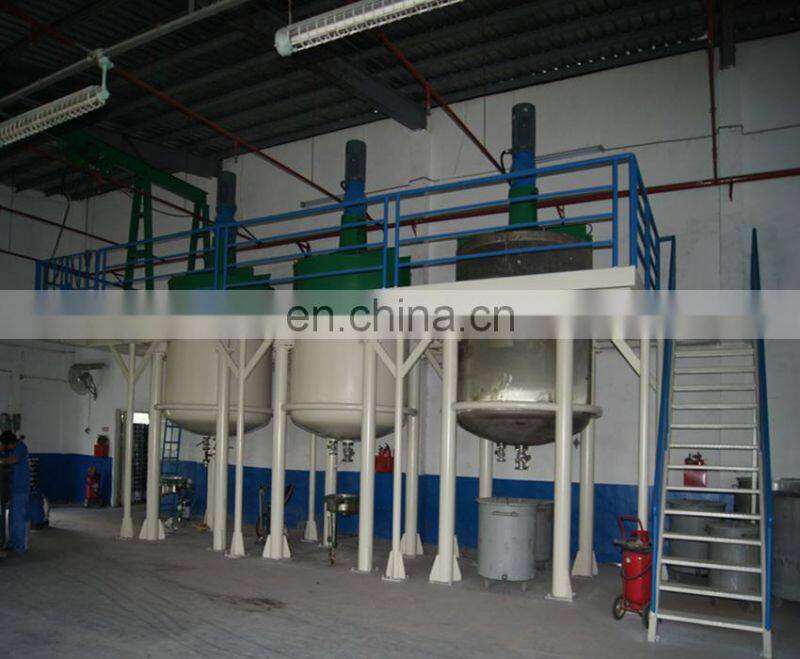

High Quality stainless steel mixing tank
mixing tank series strictly tally with Litengda General principles'(1998 Revised Edition),
and is designed ,manufactured and accepted according to the requirements of GB150-98 Steel Pressure Vessel or JB/T4735-97 Steel Welding Normal Vessel.
1.Heat preservation material of the vessel adopt high-temperature resistant and anti-aging polyurethane blister or per cotton.
2.Joints adopt international general ISO package chuck,inner container adopts imported stainless steel SUS 304 or SUS316 ,internal surface polishing.
3.Orifice is set with level gauge (static-Pressure type,capacitance type,non-contac type ,ultra-sonic type and glass tube), air respirator,thermometer
(digital display type or dial plate type), CIP cleaning mouth , SIP sterilizing mouth, liquid entrance-exit gate and sanitary inlet.
4.Volume Specification:100L-30000L or to be designed and manufactured at customers'actual request
- According to your product, we can configure with different mixing tool, if low viscosity product, need high speed mixer, if high viscosity product, usually high speed mixer with low speed mixer to meet different process.
- To choose the right machine will greatly advance your production efficiency and production quality.
- The stainless steel mixing tank can engineer heating, cooling or vacuum or other process
- we have rich practicel data for different product, with the data can help customer to choose the right machine.
- The volume of the mixing tank from 50-10000L
- Material: sus304 or 316L stainless steel
- the closed structure prevent the dust fly or liquid splash.

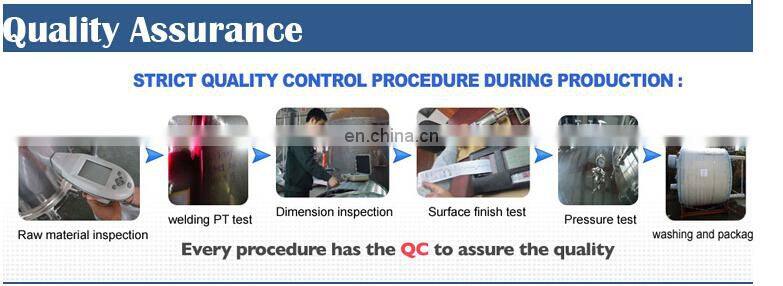

Mixing tank Litengda Quality Control for mixing tank :
1.The raw materaial plate was anlysised by our material anlysier to assure the quality
2.The welding is argon arc weld(TIG) to avoid plate's oxidized
3.After welding the the inner tank ,we will make a full water pressure test to check the welding joint .After welding the jacket ,the full water pressure test be done for jacket too
4.After finishing the surface finish ,our people will make a surface roughness testing to assure the Ra data .
5.After agitator installment ,we will operate it to assure the function is good .
6.The nozzle's position 's confirm also is checked by our quality control people .

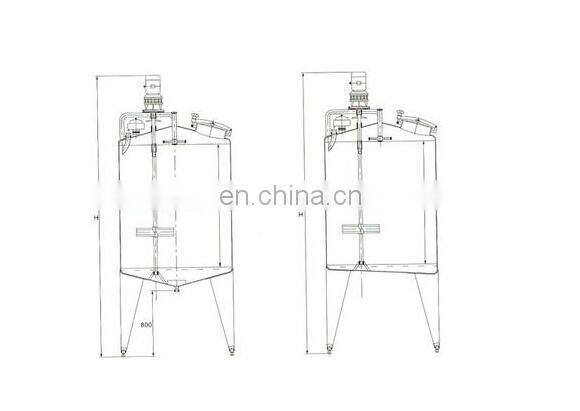

Mixing tank Some drawing for refering :
