Large Detergent Powder Making Machine 2000L Type Soap Powder Spiral Ribbon Blender Mixer Machine

     Large Detergent Powder Making Machine 2000L Type Soap Powder Spiral Ribbon Blender Mixer Machine

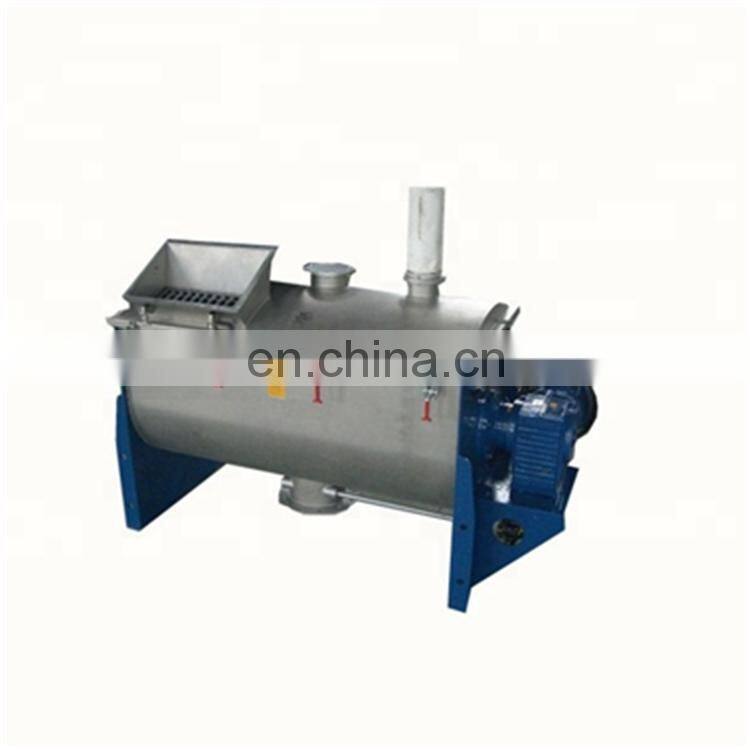

       It is an efficient and versatile blending machine for mixing of dry granules & powders homogeneously. Approximate two third of the volume of the container of Ribbon Blender is filled to ensure proper mixing. The Ribbon Blender gives best result for mixing of dry powder & granules due to the design and shape of the mixing ribbon and product container. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc. Material should be charge from the top side. There are port/ports should be provided on the top cover to charge the material as well as for air vent. One discharge valve provided at the bottom side at center of the container. The discharge height could be adjust as per the requirement, so that material gets discharge in the other container directly, so that material handling time for discharge is nil and the operation is dust free

In Ribbon Blender the powder moves from center to the end of container and end of container to the center of container. Hence requirement of total mixing time is very less and the RPM required are also very less. The dry material gets sufficient continuous movement due to the shape & movement of ribbon & shape of the container. Which moves material for good quality of blending? The unit is consist of one electrical motor, one worm reduction gear, belt drive between motor and gear, couple drive between gear to (ribbon) mixing stirrer. Container having four nos. of legs with discharge valve & top cover. Both end of mixing shaft is sealed with bush & PTFE gland housing & safety guards are provided on all moving parts.

Salient Features

Designed for atmospheric operations.
If dictated by process conditions, highly polished internal surfaces can be provided.
Provision for measuring of product temperature can be provided, if required.
Beacing mounting on-outside of mixing container to avoid contamination.
Dust-proof model.
Teflon braided packing.
Single speed drive.

Design Highlights

The outer ribbon displaces the material from the ends to the center while the inner ribbon moves the material from the center to the ends. This counter-current action results in homogenous blending.
The ribbons rotate at approximately 70 - 100 meters per minute and move the material both radially and laterally to ensure thorough blends in short cycle times.
Triple Mixing Action - The Key to Fast, Efficient Blending

As the agitator rotates, the material is tumbled and carried radially around the inside of the blender.
The pitch of the outer ribbon moves the material toward the discharge opening.
The inner ribbon which has an opposing pitch moves the material away from the discharge opening

Machine having below applications:

Adhesives Instant drink mix
Animal feed Iron oxide
Antibiotics Minerals
Asphalt emulsion Milk powder
Bakery mix Natural gums
Ceramics Nutraceuticals
Other Industrial Mixing Applications
