High-Speed Dispersing Mixing Machine, High Shear Mixer,Paint Mixer

High-Speed Dispersing Mixing Machine, High Shear Mixer,Paint Mixer photo-1

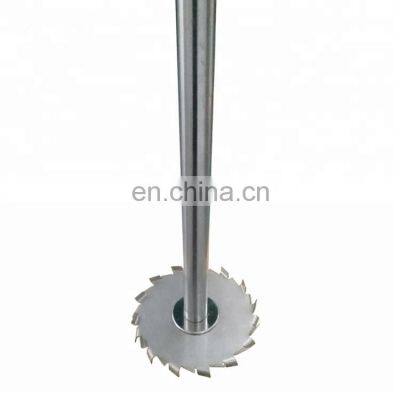

High-Speed Dispersing Mixing Machine, High Shear Mixer,Paint Mixer photo-2

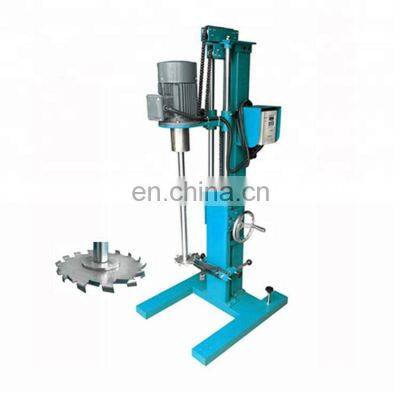

High-Speed Dispersing Mixing Machine, High Shear Mixer,Paint Mixer photo-3

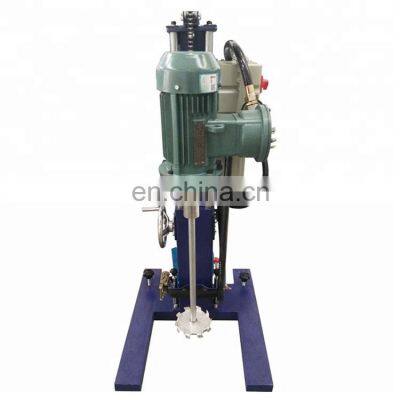

High-Speed Dispersing Mixing Machine, High Shear Mixer,Paint Mixer photo-4

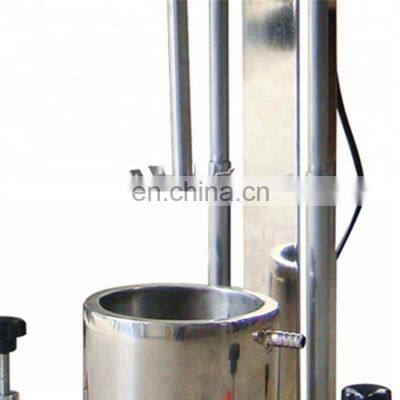

High-Speed Dispersing Mixing Machine, High Shear Mixer,Paint Mixer photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2009
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description



Application

The application of high speed disperser includes, but isn’t limited to: dispersing, suspending, emulsifying, dissolving, homogenizing, mixing and breaking down agglomerates of high viscous materials (up to 300,000 CPS).

Paints, varnishes and printing inks: Preparing paint batches, carbon paper paint, artists paints, priming and rust removing paints, fillers, dispersion and coating paints, varnish pastes, printing inks, resin solutions, textile printing inks, etc.

Plastics: Preparing all types of PVC, PU pastes, color concentrates and plastic putties.

Adhesives: Preparing rubber, neoprene, resin and other types of adhesive.

Chemicals: Preparing filler dispersions, coating materials, insulation materials, bitumen based sealing materials, greases and lubricants.

Characteristic

high speed disperser is ideally designed to meet the demands of broad spectrum of industrial applications. Ease of operation, and high efficiency, reducing of cost and shortening of operation time.

Model

Power

Max speed

Diameter plate

Lift up and down distance

SEM-5.5

5.5kw

1400r/min

100-200mm

700mm

SEM-7.5

7.5kw

1400r/min

200-300mm

900mm

SEM-11

11kw

1400r/min

200-300mm

900mm

SEM-15

15kw

1400r/min

200-300mm

900mm

Main Technical IndexParameter
Main MotorStepless Speed Regulation1.5~45kw
ImpellerØ200-Ø400
Rotary Angle of Frame360°
Rotating Speed of Impeller125-1250r/min
Max. Rotating Speed of Stirring Shaft1000mm,1100mm
