automatic disposable glass making machine
- 1000 per Month
- T/T Credit Card
- Fully automatic one-time plastic cup, flowerpot thermoforming machine for sale
- Automatic Hydraulic Disposable Plastic Cup Thermoforming Making Machine
- FJL-750 hot sale disposable glass machine price, plastic disposal glass making plastic cup forming machine
- Automatic disposable plastic plates and cups making machine, thermoforming machine
- Plastic pots making machine,disposable cup making machine,plastic tea cup making machine
- disposable plastic glass machine,plastic container machine
Product Description

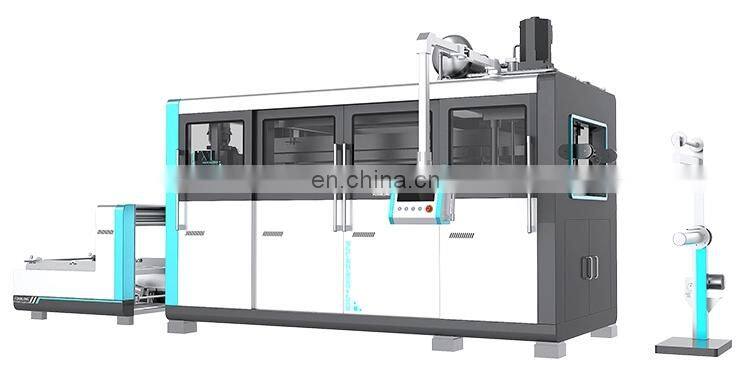

FJL-SZ-680II 250ml Disposable Plastic Cup Maker,Plastic Thermoforming Machine,Glass Making Machine
Usage

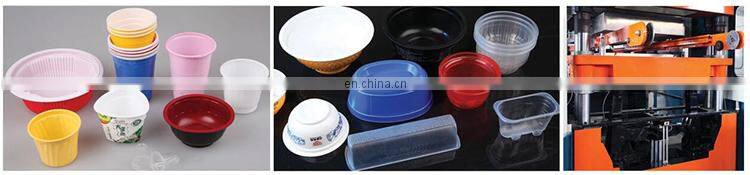

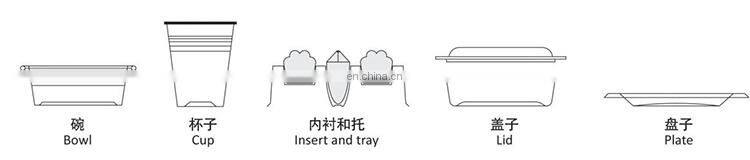

This series mainly used for making different kinds of plastic cups, such as water drinking cups, jelly cups, yogurt cups, coffee cups, it can also
make flower pots, disposable bowls, lids, plates, trays and ect.
Major Construction Featurus
The operation is controlled by PLC with touch screen.
Adopt four pillars to fix the mould.
Fill oil automatically to lubricate mechanism movement at certain time.
Temperature control modules to control each temperature area.
Machine production process started from sheet feeding, heating, stretching, forming, in-mould
cutting (and in-mould holing) in one stroke.
Convenient operation, outstanding performance, low noise and high quality.
Model | FJL-SZ-680I | FJL-SZ-680II | FJL-SZ-750I | FJL-SZ-750II |
Max.Forming Area | 650*320mm | 750*420mm | ||
Max.No-Load Speed | 35Cycles/min | |||
Running Pattern | Hydraulic | |||
Oil Pump Motor Power | 7.5KW Double Pump | 15KW Double Pump | ||
Cutting Pattern | In mould automatic | |||
Feeding Pattern | Motor With Encode | Servomotor | Motor With Encode | Servomotor |
Stretching Pattern | Air Cylinder | Servomotor | Air Cylinder | Servomotor |
Sheet Material | PP.PS.HIPS.PET.PVC | |||
Sheet Thickness Range | 0.2-2mm | |||
Max.forming Depth,Sample Height | 120mm | 150mm | ||
Max.Sheet Roll Dia | 800mm | |||
Heater Arrangement | (120Pieces,650W)Top+Bottom Heating With IR Ceramic Heater | (152Pieces,650W)Top+Bottom Heating With IR Ceramic Heater | ||
Temperature Controller&Thermocouple | PID K-Type | |||
Electrical Consumption | 40KW/h | 45KW/h | 50KW/h | 55KW/h |
Overall Power | 100KW | 110KW | 120KW | 130KW |
Air Consumption | 1.5-1.8m3/min,0.6-0.8 Mpa | 2-2.5m3/min,0.6-0.8 Mpa | ||
Dimension | L3650*W1590*H2500mm | L4000*W1730*H2600mm | ||
Weight | 4.4T | 4.5T | 4.8T | 5T |
Power Supply | 380V/50HZ Three phase four wires |
