FJL-SZ-750I Disposable automatic cheap price plastic cup making machine
Usage
This machine is used for making disposable products as plastic cups, plastic bowls, ice cream cups, cold drinking cups, yoghurt cups, instant-food boxes and bowls, dishes, trays,lids and etc.

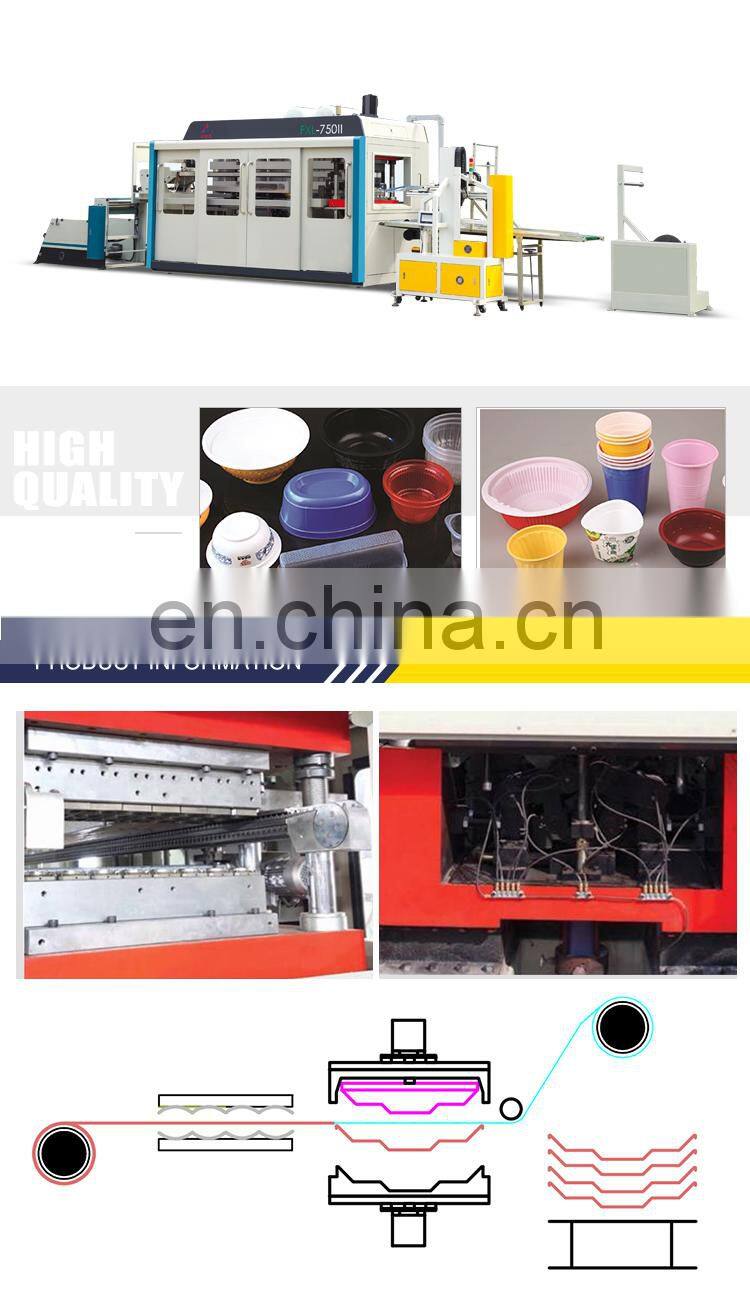

MACHINE PARTS

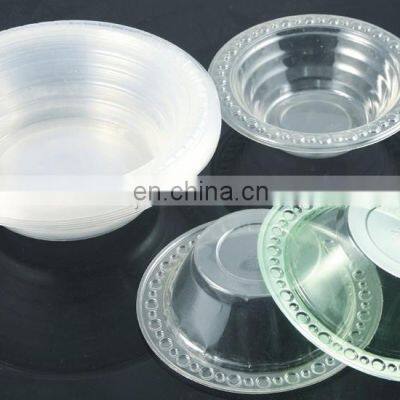

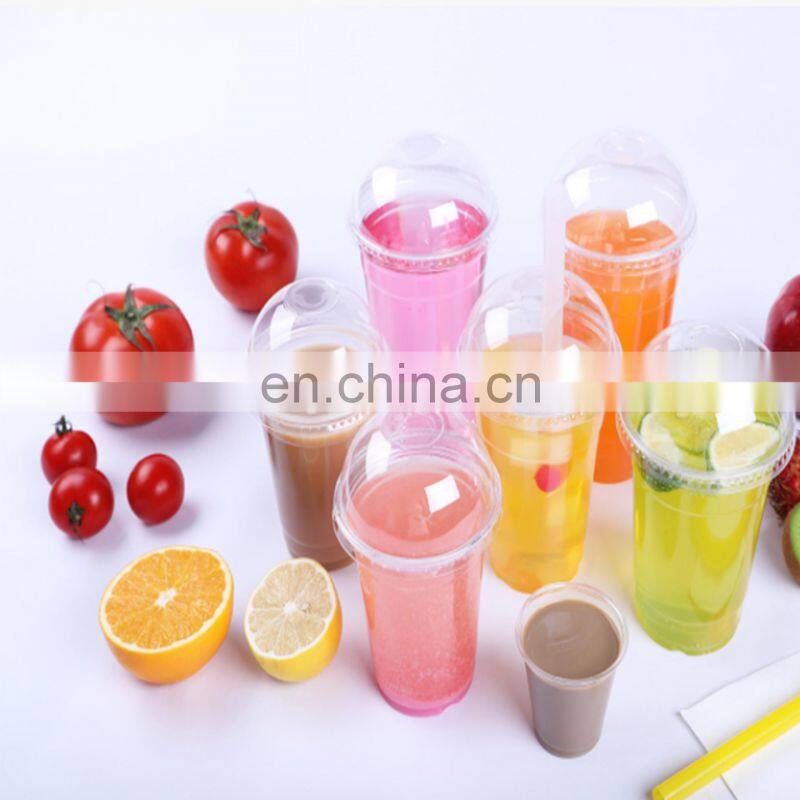

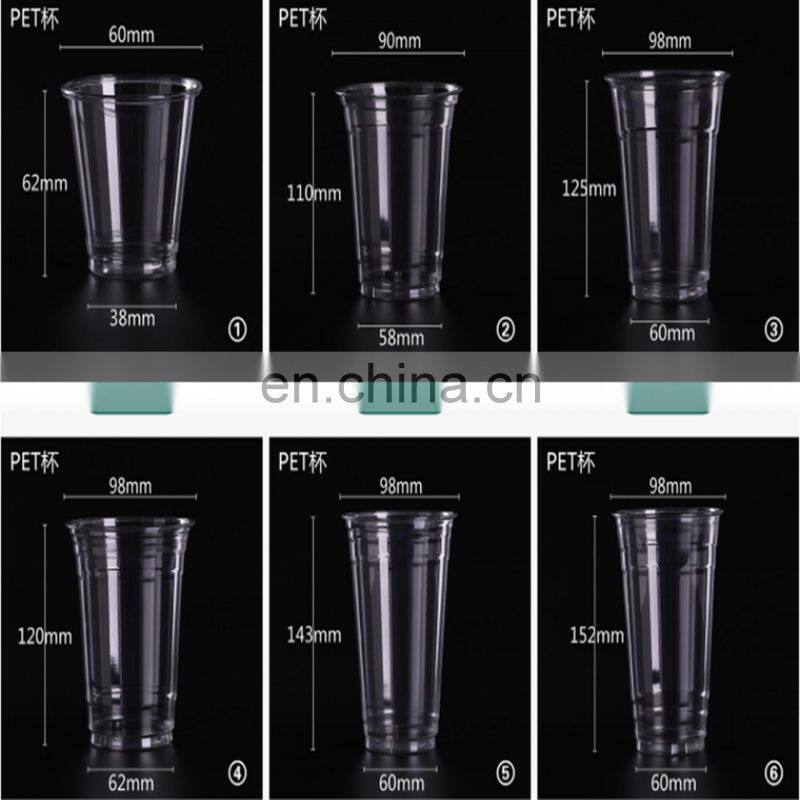

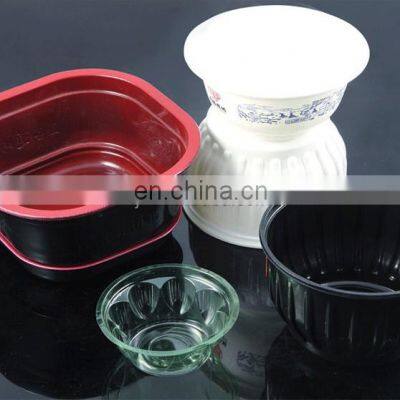

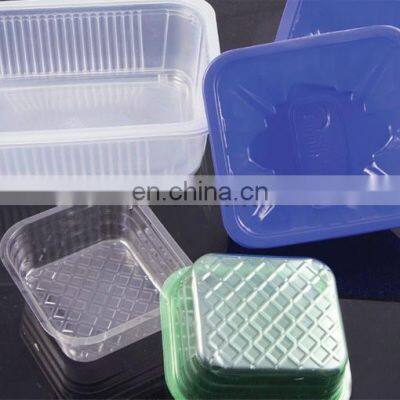

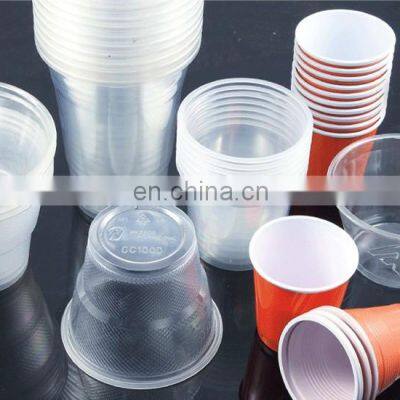

I. SAMPLES
II.Main Technical Parameter (Four pillars)
|
Model |
FJL-SZ-750 I |
FJL-SZ-750 II |
|
|
Max. Forming Area |
750×420mm |
||
|
Max. No-Load Speed |
35 Cycles/min |
||
|
Running Pattern |
Hydraulic |
||
|
Oil Pump Motor Power |
15KW(Double Pump) |
||
|
Cutting Pattern |
In mould automatic |
||
|
Feeding Pattern |
Motor with Encode |
Servomotor |
|
|
Stretching Pattern |
Air Cylinder |
Servomotor |
|
|
Sheet Materia |
PP.PS.HIPS.PET.PVC |
||
|
Sheet Thickness Range |
0.2-2mm |
||
|
Max. forming Depth, Sample Height |
150mm |
||
|
Max. Sheet Roll Dia |
800mm |
||
|
Heater arrangement |
(152Pieces,650W)Top+Bottom Heating With IR Cerami cHeater
|
||
|
Temperature Controller & Thermocouple |
PID K-Type |
||
|
Electrical Consumption |
50KW/h |
55KW/h |
|
|
Overall Power |
120KW |
130KW |
|
|
Air Consumption |
2-2.5m3/min, 0.6-0.8 Mpa |
||
|
Dimension |
L4000×W1730×H2600mm |
||
|
Weight(T) |
4.8T |
5T |
|
|
Power Supply |
380V/50HZ Three phase four wires |
||
III.Main Construction Features
The sheet feeding pin chain is controlled by motor with encode.
The stretching of plug inside of up mould is controlled by air cylinder.
The operation is controlled by PLC with touch screen.
Adopt four pillars to fix the mould.
Adopt hydraulic system to drive the movement of the mould.
Fill oil automatically to lubricate mechanism movement at certain time.
Temperature control modules to control each temperature area.
Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.
Machine frame adopts square steel, more stable and serviceable.
Convenient operation, reliable performance, low noise and high quality.

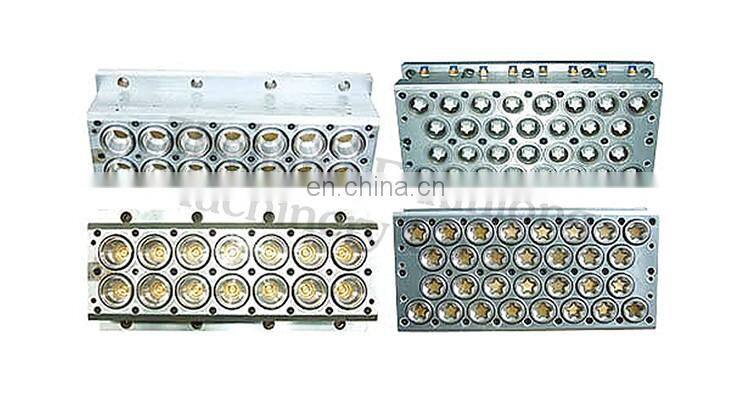

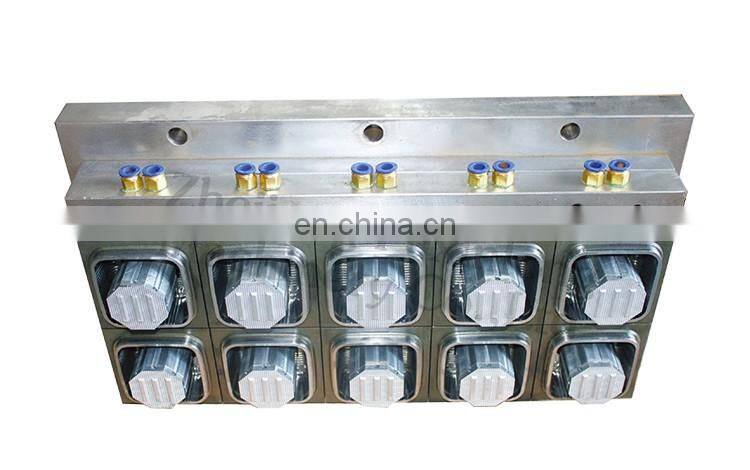

IV.Mould sample
