FSCT-820/650-A Automatic plastic cup product making thermoforming machines
Usage
The FSCT-820/650 Series adopts the most advanced thermoforming technology. This series combine high output, high quality, high efficiency, low comsumption ,suitable for mass production. Its outstanding stability and superior performance will provide an excellent return.
Features
Conform to indicator of hygiene quality and save labor.
Feeding and stacking driven by servo motor
Mould with rapid change,remember all datum of moulds Intelligently and Automatic electric adjustment
More precision temperature control(toerance:±1℃)
With automatical testing material droping, heater protecting safety system.
Fill oil automatically to lubricate mechanism movement at certain time.
| Model | FSCT-820/650-S | FSCT-820/650-A | FSCT-820/650-B |
| Quantity Of Stations | 2 | 3 | 4 |
| Sheet Material | PP, PS, PVC, PET, HIPS, PLA, OPS, EPS, C-PET, C-PLA, ABS | ||

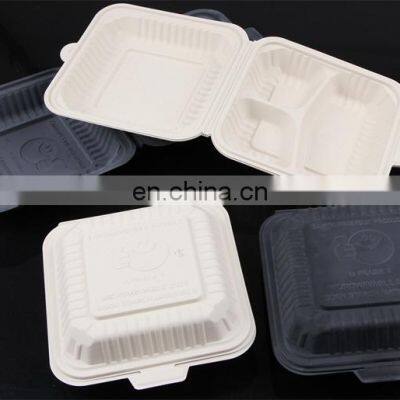

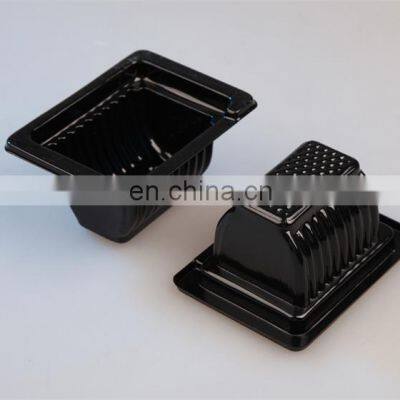

| Application | Blister packaging of food, drink, Fruits, vegetables, cosmetics, electronic products, medical products, agricultural products, hardware products, auto parts, etc | ||
| Max. Forming Area | 820 X 650 mm | ||
| Max. Pos/Neg Depth | 150/150mm | ||
| Max. Plastic Sheet Width | 860mm | ||
| Max. Plastic Sheet Dia. | 1100mm | ||
| Thickness Of Plastic Sheet | 0.1-2mm | ||
| Max. No-Load Speed | 60Cycles/min | ||
| Air Consumption | 4.5m3/min,0.6-0.8Mpa | ||
| Overall Power | 185 KW | 200 KW | 215 KW |
| Dimension | L10000 x W2900 x H3150mm | L11200 x W2900 x H3150mm | L12500 x W2900 x H3150mm |
| Weight | 15T | 20T | 25T |
| Power Supply | 380v/50Hz Three Phase Four Wires | ||
