Disposable Plastic Cup Making Machinery Glass Making Machine

Features:

1. The sheet feeding pin chain is controlled by servomotor, the feeding length is more precise and  it can be adjusted in parameter setting through touch screen.

2. the stretching of plug inside of up mould is controlled by Servomotor.

3. The operation is controlled by PLC with touch screen.

4  Four pillars to fix the mold more stable.

5. Adopt hydraulic system to drive the movement of the mould

6. Fill oil automatically to lubricate mechanism movement at certain time.

7. The temperature of each area is controlled by temperature modules.

8. Machine production including sheet feeding, heating, stretching, forming and in-mould cutting are in one strock.

9. Machine frame adopts square steel, it is more stable and more serviceable.

10. Convenient operation, reliable performance, low noise and high quality.

Specification:

Usage:

This Fujinlong high quality food tray making machine is mainly used for PP/ PS/PET/PVC sheet into various kinds of disposable plastic cups, boxes ,containers ,plates and etc.Just change the mould, we can make different products on one machine.

Functions:

(1). The high efficiency, energy saving, safety, environmental protection, high qualified products.

(2). The machine set piece, heating, stretching to send, molding, cut one-time completed.

(3). Machine, electricity, gas integration; have manual, semiautomatic, automatic three operation functions.

(4). Raw materials to adapt to the machine widely. Such as PS, PP, PVC, PET, ABS and other plastic material all can manufacture.

(5). The machine is completely automatic, productive speed is fast. Different products can be produced with different molds.

(6). It uses import famous brands of electric and pneumatic fittings, so the operation is stable, quality is reliable and life is long.

(7). The design of the mold is advanced and special, heat the thermoplastic plastic flake board and put on the mold, pull the piston, give the pressure to the air, keep the flake board close to the inside of the mold to form, then, cut and automatically blow the product. The structure of the whole machine is compact, one mold has all the functions, like pressure giving, forming, cutting, cooling, and finished product blowing, so the process is short, quality of the finished product is high and matches with national sanitary standard.

Hydraulic system:

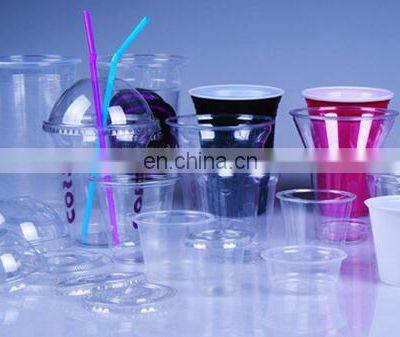

 Samples:
