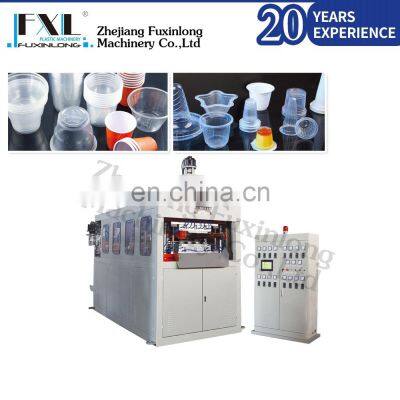

High-quality CE certification automatic disposable plastic cup making machine

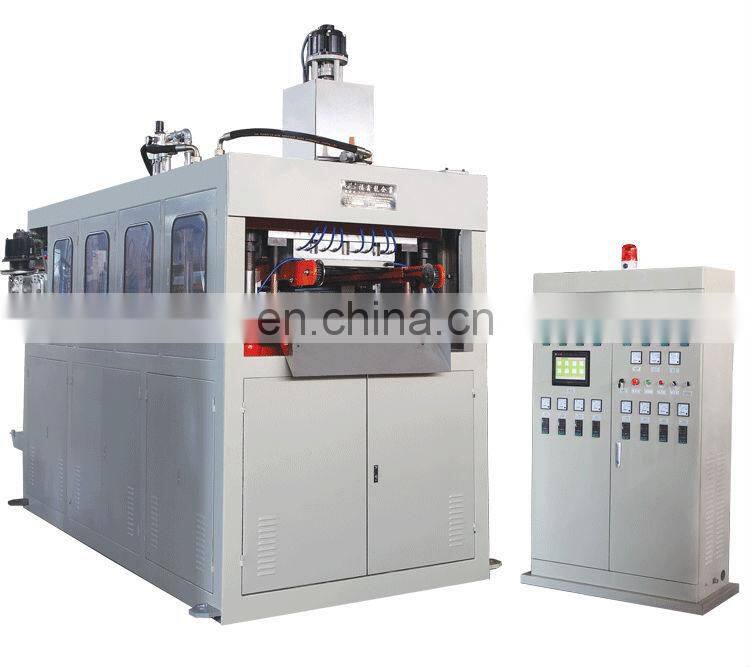

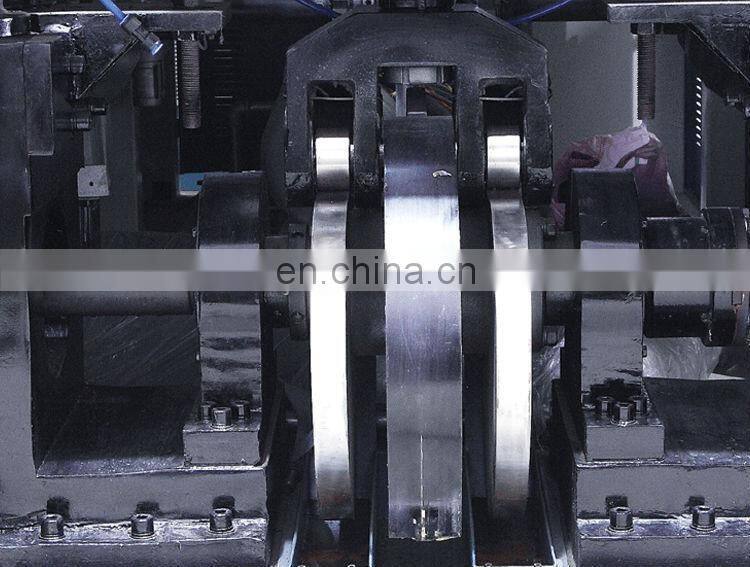

parts of the machine
Usage

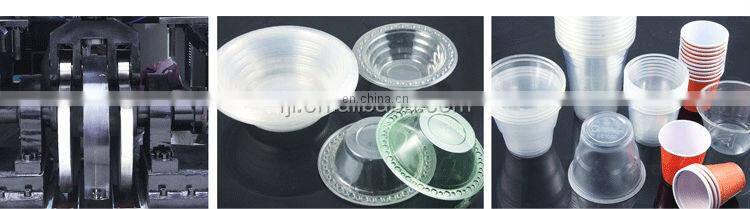

The machine mainly used for making different kinds of plastic cups, such as water drinking cups, jelly cups, yogurt cups, coffee cups, it can also make disposable bowls, lids, dishes, trays and ect.
Major construction features
The sheet feeding pin chain is controlled by servo motor, The feeding length is more precise and it can be adjusted in parameter setting through touch screen.
The stretching of plug inside of up mould is controlled by servomotor.

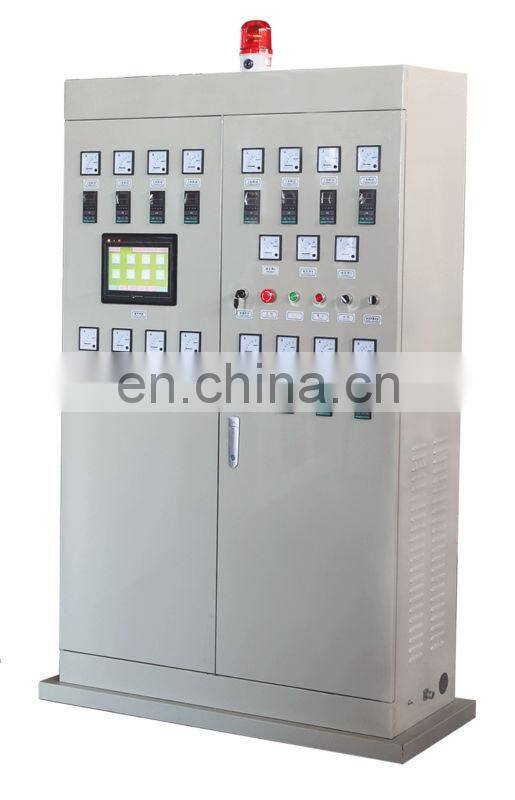

The operation is controlled by PLC with touch screen.
Adopt two pillars to fix the mould.
Adopt hydraulic system to drive the movement of the mould.
Fill oil automatically to lubricate mechanism movement at certain time.
Temperature control modules to control each temperature area.
Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.
Machine frame adopts square steel, more stable and serviceable.
Convenient operation, reliable performance, low noise and high quality.
main technical parameters
|
Model |
FJL-660SB-C II |
|
Max. Forming Area |
650*320mm |
|
Running Speed |
15-30cycles/min(According to sheet thickness, material used and product shape) |
|
Running Pattern |
Hydraulic/cam |
|
Cutting Pattern |
In mould automatic |
|
Sheet Material |
PP.PS.HIPS.PET.PVC |
|
Sheet Thickness Range |
0.2-2mm |
|
Max. forming Depth, Sample Height |
120mm |
|
Oil Pump Motor Power |
15KW |
|
Stretching/Feeding Servo-Motor Power |
5KW/4.4KW |
|
Max. Sheet Roll Dia |
800mm |
|
Heater arrangement |
(120Pieces,650W)Top + Bottom Heating With IR Ceramic Heater |
|
Temperature Controller & Thermocouple |
PID K-Type |
|
Electrical Consumption |
45KW/h |
|
Overall Power |
100KW |
|
Air Consumption |
1.5-1.8m3/min, 0.6-0.8 Mpa |
|
Dimension |
3.65*1.59*2.5m |
|
Weight(T) |
4.4 |
|
Power Supply |
380V/50HZ Three phase four wires |

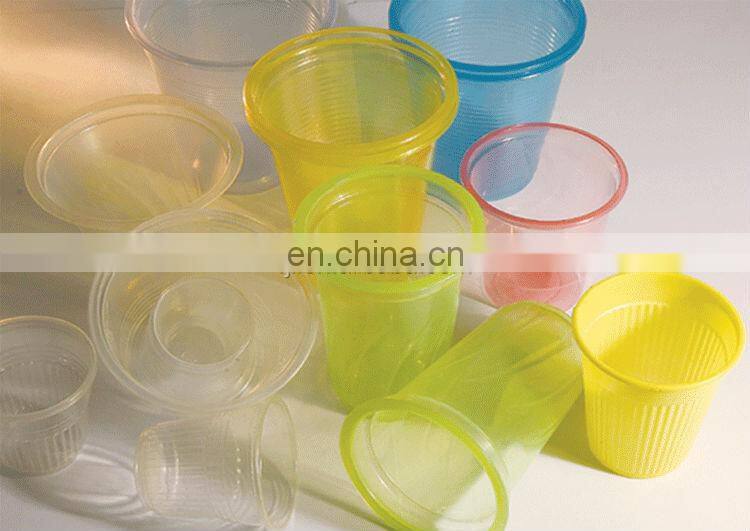

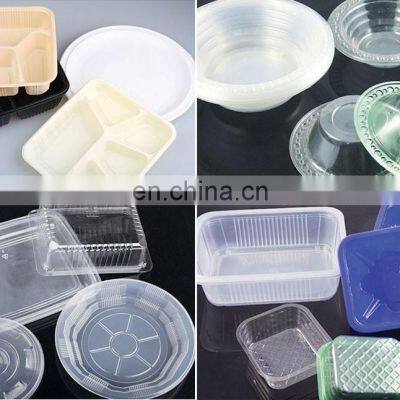

the samples
