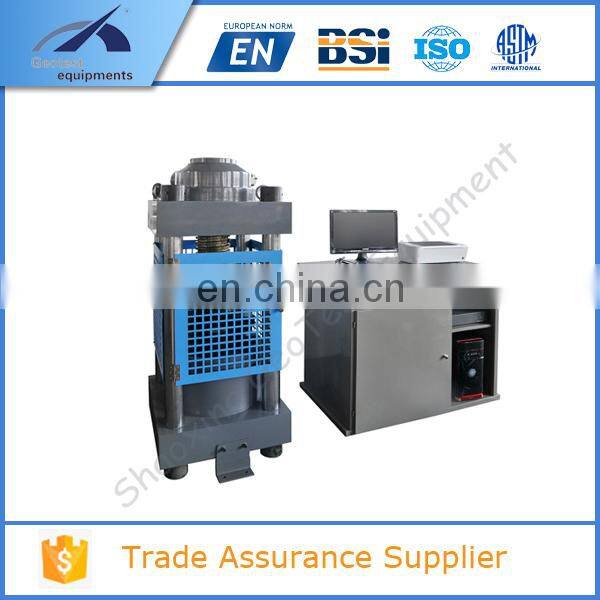

CTM-3000A Constant Load Automatic Concrete Compression Testing Machine
1. Features
a. Constant load
b. LCD computer screen
c. It has automatic overload protection function.
d. High quality, high precision and good performance.
e. It is suitable for doing compressive strength test of the building materials such as brick, cement mortar and concrete and so on.
f. It is also suitable for the mechanical properties test for other materials.
2. Main technical parameters
Loading capacity |
3000kN |
|
Range of measuring accuracy |
20%~50% |
|
Indication value precision |
≤±1% |
|
Loading speed |
0.3Mpa~0.8Mpa |
|
Accuracy of loading speed |
±5% |
|
Size of bearing platen |
320mm×320mm |
|
Max. distance between upper and lower platen |
320mm |
|
Max. piston stroke |
50mm |
|
Diameter of piston |
Φ310mm |
|
Rated pressure of the hydraulic pump |
40Mpa |
|
Motor power |
220V 50Hz 1ph 1.1KW |
|
380V 3ph 1.1KW | ||
Overall dimensions |
1190mm×600mm×1468mm |
|
Net weight |
About 950kg |
|
Packing
1. inner package: dust-proof plastic bag
2. outer package: standard export wooden case with pallet
3. suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
4. Packing size:
5. Gross weight:
Shipping
15 working days for shipping by sea
10 working day for delivery by air flight
3~5 days for delivery by DHL courier
Order Policy
1. MOQ: 1 set
2. 3-15 days production time
3. payment terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram, Visa, others can be negotiated
Price Policy
1. Product prices: fixed price in 1 year for agents.
2. Freight charges: according to actual cost payment, refund for any overpayment in next order.
Delivery Policy
1. Try to catch up with contract delivery time.
2. If can’t, try to catch up with the arriving date.
3. Chang shipping by sea to delivery by air flight if necessary.
Before Service
1. Offer actual details for your consideration (such as what we can do and what we can’t do).
2. Quality standard: ASTM, BS, EN, DIN, ISO and others.
After Service
1. Technical education and training (in factory’s house, agent’s house, or through internet).
2. Quality assurance time: 1 year.
Special Service
1. ODM service
2. OEM service
3. Collection service, to collect items from other factories which you buy and delivery together.
