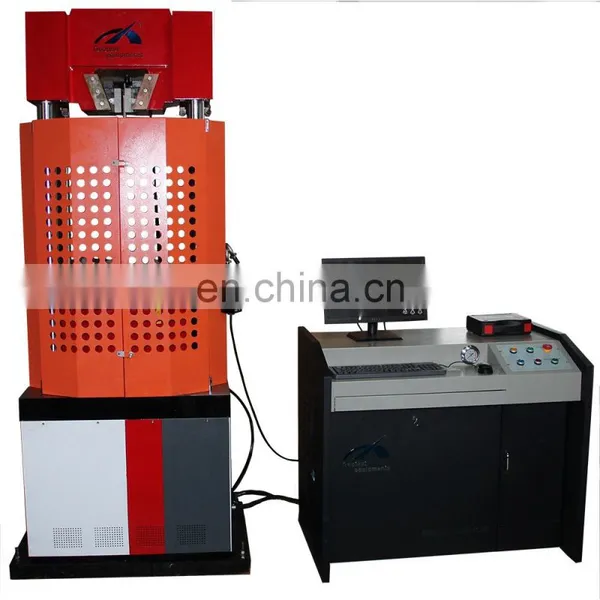

Computer-controlled Electro-hydraulic Servo Automatic Universal Testing MachineNegotiableMOQ: 1 -
2015 New Design Industrial Laboratory Mechanical Standard Sand Electric Vibrating Sieve ShakerNegotiableMOQ: 1
-
150 mm Multi Function Electric Concrete Core Drilling MachineNegotiableMOQ: 1
-
HA-3 Soil Sample Hand AugerNegotiableMOQ: 1
-
BS Standard 2000 kN Digital Concrete Compression Testing MachineNegotiableMOQ: 1
Applications
This machine is applicable to metal, cementing compound, tubes, sectional bars, aerospace, petrochemical, waterproof rolls, wire and cable, textile, fiber, rubber, ceramics, food, mechanical packaging, geo-textile, film, wood, paper and other industries and quality supervision department, and it also can be used in college for teaching demonstration.
Adopting precise auto control and data acquisition system to realize fully digital adjustment to data acquisition and control process. During tensile test, it can test max. bearing tensile, compression, tensile strength, deformation, elongation and other technical specifications;
After tensile test, the above parameters can be calculated automatically through main controller according to the test parameters, which are set before test and meantime display the corresponding test results. All test parameters can be saved and inquired after test, also can be connected with printer to print test reports.
Features
- Lower noise: ≤60dB
- AC Servo motor, ensure good performance for long term
- PID control, constant loading and unloading and hold on loading, constant-speed displacement and hold on displacement, constant-speed deformation and hold on deformation
- High precision load cell
Main technical specifications
1. Capacity: 1000KN
2. Precision class: Class 1
3. Loading range (force): (0.4% ~ 100%)FS
4. Loading accuracy (force): ±1%
5. Loading resolution (force): 1/200000 FS
6. Measuring range of displacement: (1%-100% ) FS
7. Displacement resolution: 1/200000 FS
8. Displacement accuracy: ±1%
9. Measuring range of deformation (1%-100% ) FS
10. Deformation resolution 1/200000 FS
11. Deformation accuracy: ±1%
12. Loading speed adjusting range (force): (0.1% ~ 4%) FS/s
13. Displacement speed adjusting range: 0.5 ~ 50 mm/min
14. Deformation speed adjusting range: 0.00007 ~ 0.25 /s
15. Tensile space: ≤580 mm
16. Width of flat specimens: ≤75 mm
17. Thickness of flat specimens: 0˜40 mm
18. Diameter of round specimens: Ø20˜60 mm
19. Distance between bending rollers: ≤500 mm
20. Effective span of tensile space between columns: 500 mm
21. Effective span of compression space between columns: 500 mm
22. Moving speed of testing bench: ≥70 mm/min
23. Moving speed of lower jaw: ≥200 mm/min
24. Motor power of oil pump: 2000 W
25. Motor power for beam moving 550 W
26. Overall dimensions (frame): 950×640×2200 mm
27. Overall dimensions (oil pump control cabinet): 1100×600×900 mm
28. Weight: approx 3500 kg
Packing
1. inner package: dust-proof plastic bag
2. outer package: standard export wooden case with pallet
3. suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
4. Packing size: 130×95×258 cm and 135×100×130 cm
5. Gross weight: 3890 kgs
Shipping
25 working days for shipping by sea
20 working day for delivery by air flight
15 days for delivery by DHL courier
Delivery
Order Policy
1. MOQ: 1 set
2. 7 days delivery
3. various payment terms
Price Policy
1. Product prices: fixed price in 1 year for agents.
2. Freight charges: according to actual cost payment, refund for any overpayment in next order.
Delivery Policy
1. Try to catch up with contract delivery time.
2. If can’t, try to catch up with the arriving date.
3. Chang shipping by sea to delivery by air flight if necessary.
Before Service
1. Offer actual details for your consideration (such as what we can do and what we can’t do).
2. Quality standard: ASTM, BS, EN, DIN, ISO and others.
After Service
1. Technical education and training (in factory’s house, agent’s house, or through internet).
2. Quality assurance time: 1 year.
Special Service
1. ODM service
2. OEM service
3. Collection service, to collect items from other factories which you buy and delivery in container.
