Power Industry Old Aging Transformers Oil Regeneration Plant for New Oil
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
ZYD-I-M Series Mobile Transformer Oil Purification Machine Mobile Transformer Oil Regeneration Plant
-
ZYD-I Series Double-stage Vacuum Transformer Oil Purifying Plant
-
ZYD-I Regeneration Machine Oil Purifier Transformer Oil Treatment
-
Mineral Oil Regeneration Machine Doule Stage Vacuum Machine ZYD-I
-
Mineral Oil Regeneration Machine ZYD-I Insulating Oil Recovery Plant
-
ZYB Insulation Oil Filter Machine Mobile Transformer Oil Cleaning Machine
Product Description
Product Description

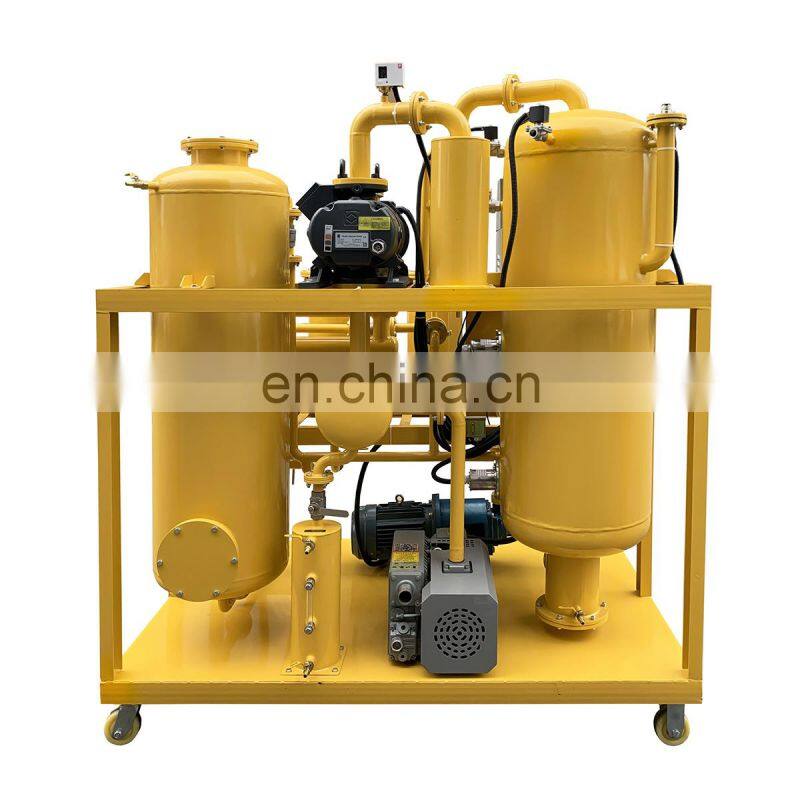

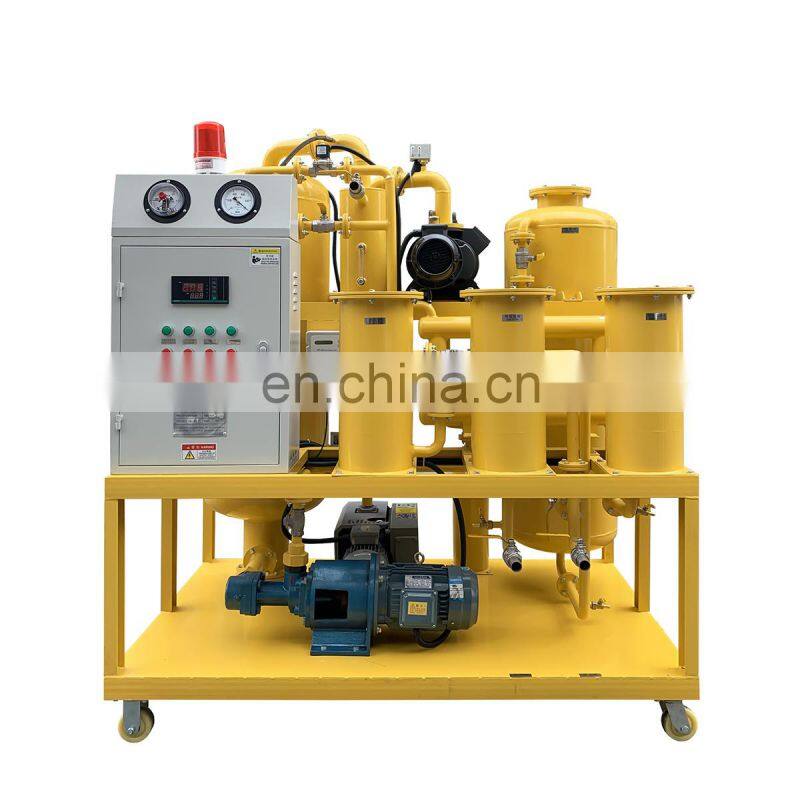

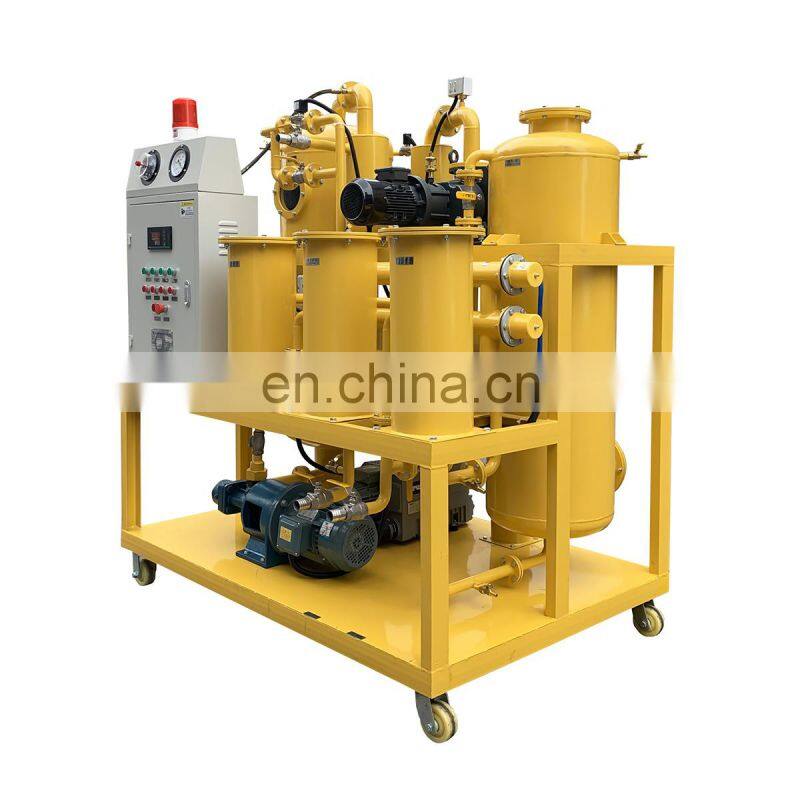

Transformer oil regeneration plant
(ZYD-I Series)
ZYD-I is double stage vacuum transformer oil regeneration plant. It is specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. It not only provides regular oil purification including degassing, drying and particulate removal but also removes acidity, sludge, other soluble oil decay products, and improves color.
This mobile type oil treatment plant has been procured by many government electric power departments for treatment of new oil (as per IEC 60296) and reconditioning of used oil (as per IEC 60422 for oil in-service) in EHV class transformer, shunt reactor and other oil filled equipment in order to achieve properties of treated oil within specified limits at the rated capacity.
It is applied to process the transformer oil and insulating oil from power plant, power station, electric power company, power transmission equipment, transformers, industrial and mining enterprises, especially suitable for onsite installation, maintenance and purification for high level new oil, or running oil from big power transmission and distribution equipment and transformers on national main power transformation grid, which is above 110-750KV. It can shorten the oil treatment period for transformer installation and maintenance.
1. It can be equipped with roadworthy trailer and weather-proof enclosure (optional), convenient for transport and outdoor use.
2. Automatic supervision of the contamination degree of the fine filter cartridges

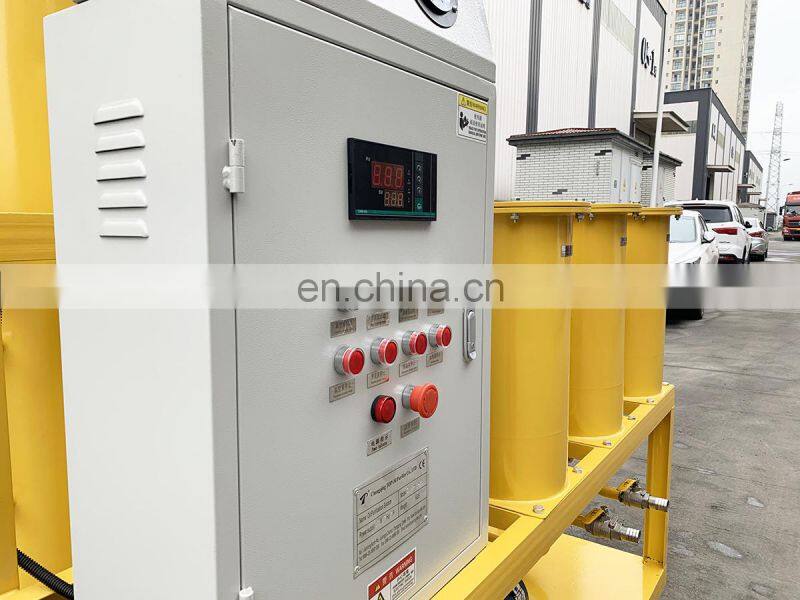

3. With built-in control and safety mechanism for a max operating security.
4. Advanced infrared liquid-level auto control system to accomplish fully automatic control.
5. High decolorization performance to recover aged transformer oil to new.
6. With double-infrared liquid automatic controller, pressure automatic-protector
7. Optional automatic PLC, online moisture meter etc.
Parameters | Unit | ZYD-I-30 | ZYD-I-50 | ZYD-I-100 | ZYD-I-150 | ZYD-I-200 | ZYD-I-250 | ZYD-I-300 | ||||||
Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | ||||||
Working vacuum | MPa | -0.08 ～ -0.099 | ||||||||||||
Working Pressure | MPa | ≤0.3 | ||||||||||||
Temperature Range | ℃ | 20 ～ 80 | ||||||||||||
Power | Three Phase 50Hz,380V (or as needed) | |||||||||||||
Working Noise | dB(A) | 75 | 75 | 75 | 75 | 80 | 80 | 80 | ||||||
Heating Power | kW | 30 | 30 | 45 | 60 | 75 | 90 | 120 | ||||||
Total Power | kW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | ||||||
Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | ||||||
Weight | Kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 | ||||||
Size | L,mm | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 | ||||||
W,mm | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 | |||||||
H,mm | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 | |||||||
Item | Unit | Oil after treated |
Breakdown Voltage | kV | ≥75 |
Moisture content | PPM | ≤3 |
Gas content | % | ≤0.1 |
Impurity size | micron | ≤1 (no free carbon) |
IFT | dynes/cm | ≥40 |
Acid value | mg KOH/g | ≤ 0.03 |
Dielectric loss factors | tgδ(90℃) | ≤0.001 |
Other similar series
ZYD Vacuum transformer oil purifier (removing water, impurities, gases; improve bdv)
ZY Portable transformer oil purifier (single stage vacuum)
Packing&Shipping

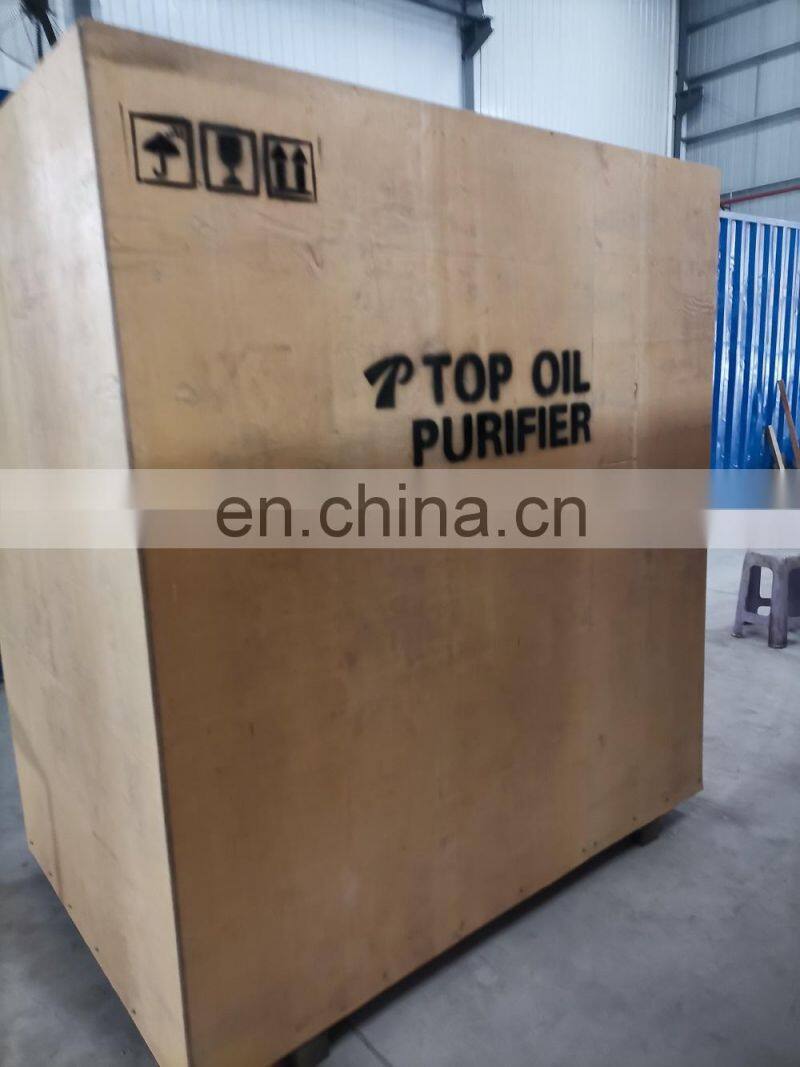

Packing: standard export wooden case per set.
Delivery method: the oil purifier machines are usually delivered by sea, but other method is available if necessary.
Delivery method: the oil purifier machines are usually delivered by sea, but other method is available if necessary.
Related Products
We also have other types of oil purifier and tester for transformer oils, if you need any one related, pls tell me to quote them together. You can send me inquiry here or contact me at +8613983286435 (Mob/Whats App) or sales10( at ). I will response the soonest within 24 hours.
(Key word for transformer oil purifier: mobile type transformer oil purifier for recycling used transformer oil, double stages oil purifier, vacuum double stage insulation oil purifier,transformer oil dehydration machine, transformer oil dehydration plant, insulating oil purifier, transformer oil filtrating machine, moisture removing machine, transformer oil centrifuging machine, insulation oil separation, transformer oil filtrating machine, transformer oil filtration machine, oil dehydrator, dielectric oil filtering machine, oil water separator, used transformer oil filter machine, water oil separator, oil filtrate machine, waste oil recycling equipment. oil water separator, oil purifier machine, insulating oil recycling, dielectric oil treatment, transformer oil dryer, vacuum dielectric oil cleaner, transformer oil recycling equipment, zyd transformer oil treatment plant, age transformer oil filtration machine, waste oil recovery system, transformer oil recovery system, regeneration of transformer oil, used oil regeneration system, waste oil regeneration machine, insulation oil reclaiming unit, oil reclaimer, transformer oil reclaiming equipment, insulation oil recovery unit, transformer oil reclamation equipment, weather-proof transformer oil purifier, double stage used transformer oil purifier, waste dielectric oil filtration systems, insulating oil transformer oil purifier, transformer oil insulation oil purifier, dielectric oil treatment for transformer, vacuum transformer oil treatment plant, double stage oil purifier, double stage vaccum transformer oil purifier, dielectric oil filling system, vacuum oil filling system, transformer oil filling machine, vacuum transformer oil purification machine, transformer oil purifying machine, transformer oil refining oil machine, transformer oil refinery, aging transformer oil recondition plant, dehydrate transformer oil, dehydrate transformer oil, transformer oil degasing machine, dirty insulation oil regeneration, transformer oil dehydration plant 4000 liters / hours, transformer oil dry out system, insulation oil gas separator,insulation oil processing machine,transformer oil purification and filtration device,transformer oil purification plant,transformer oil centrifuging machine,vacuum transformer oil degasification,insulation oil degas purifier,transformer oil dewatering system,vacuum used oil dewatering system,3000 liter aging transformer oil purifier,transformer oil moisture removal,degassing transformer oil dehydrator,transformer oil water separation process...)
Company Introduction
Chongqing TOP Oil Purifier Co.,LTD is a professional leading manufacturer and supplier of oil purifiers and various related testers, located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.
FAQ
1. What is the mini order quantity?
MOQ: generally 1 unit/piece/set
2. What payment methods are supported?
Payment method: By T/T, L/C, Alibaba Trade Assurance etc.
3. What are the available delivery methods?
Our port location: Chongqing, Shanghai or other main port of China
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation
4. How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 10 ~ 20 days; test equipment or analyzer delivery date is around 5~10 days. Some products have stock, contact us anytime to get more information.
5. How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 2 years after start up of the system.
6. How is the technical services on the product?
Engineer available to service machinery overseas. If you have any technical question, you are welcome to contact us any time. We will response promptly and answer to your satisfaction. If required and necessary, we can send our engineer to your place to provide technical support.
MOQ: generally 1 unit/piece/set
2. What payment methods are supported?
Payment method: By T/T, L/C, Alibaba Trade Assurance etc.
3. What are the available delivery methods?
Our port location: Chongqing, Shanghai or other main port of China
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation
4. How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 10 ~ 20 days; test equipment or analyzer delivery date is around 5~10 days. Some products have stock, contact us anytime to get more information.
5. How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 2 years after start up of the system.
6. How is the technical services on the product?
Engineer available to service machinery overseas. If you have any technical question, you are welcome to contact us any time. We will response promptly and answer to your satisfaction. If required and necessary, we can send our engineer to your place to provide technical support.
If you're interested in the machine, welcome to contact me for more details.
