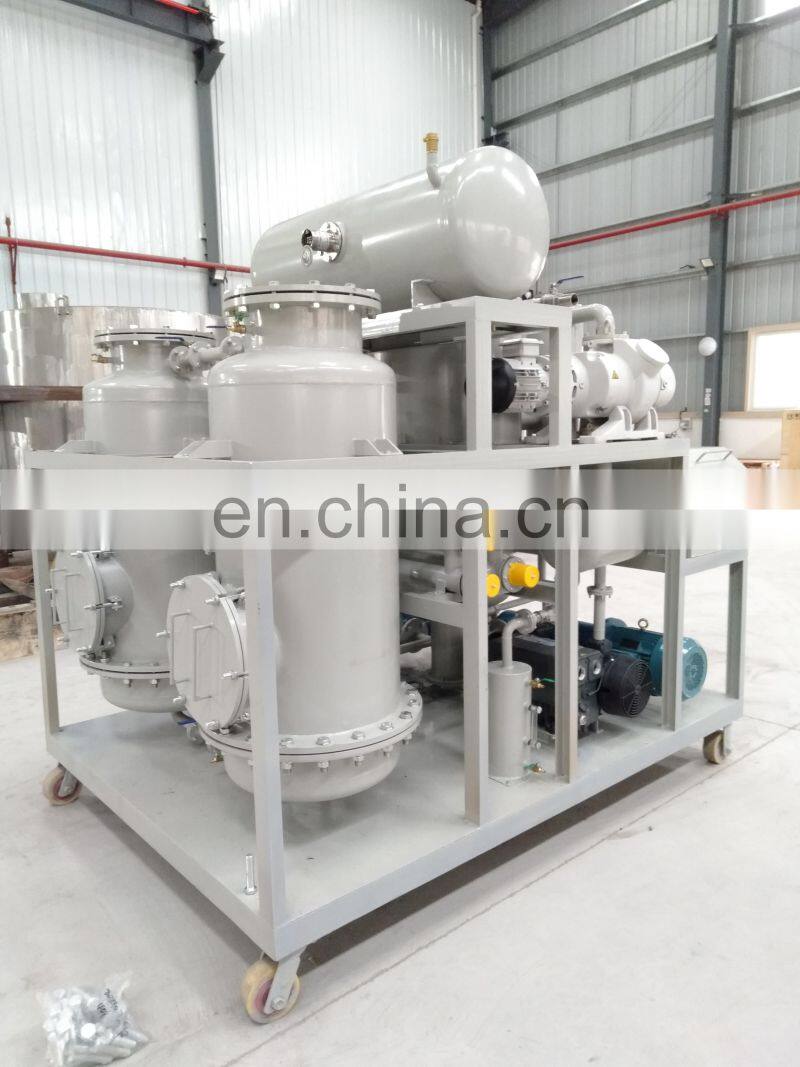

ZYD-I-A-100 Factory Price Outdoor Dirty Transformer Oil Filtration Machine/Oil Purification Plant
- T/T Credit Card
You May Like
-
Vacuum Insulating Oil Transformer Oil Purifier for Distribution Transformers Maintenance ZYD Series
-
ZYD-I-Ex-50 China Supplier Double Stages High Vacuum Transformer Oil Purifier Oil Decoloring Filter Equipment
-
High Voltage Power Stations Mobile Unit of Transformer Oil Oil Purification Plant
-
CE Portable Transformer Oil Purification Plant For Impurity Moisture Gas Filtration
-
High Capacity Mobile Vacuum Transformer Oil Filtration Plant
-
Automatic Used Transformer Oil Filtration Machine
Product Description
ZYD-I-A-100
Factory Price Outdoor Dirty Transformer Oil Filtration Machine/Oil Purification Plant
Parameter | Unit | ZYD-I-A-30 | ZYD-I-A-50 | ZYD-I-A-100 | ZYD-I-A-150 | ZYD-I-A-200 | ZYD-I-A-250 | ZYD-I-A-300 | ||||||||
Flow rate | L/h | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | ||||||||
Working vacuum | MPa | -0.08～-0.099 | ||||||||||||||
Working pressure | MPa | ≤0.3 | ||||||||||||||
Temperature range | ℃ | 20 ～ 80 | ||||||||||||||
Power | 3 ph 380V 50Hz (Or as needed) | |||||||||||||||
Working noise | dB(A) | 75 | 75 | 75 | 75 | 80 | 80 | 80 | ||||||||
Heating power | kW | 30 | 30 | 45 | 60 | 75 | 90 | 120 | ||||||||
Total power | kW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | ||||||||
Oil Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | ||||||||
Weight | Kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 | ||||||||
Size | Length | mm | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 | |||||||
Width | mm | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 | ||||||||
Height | mm | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 | ||||||||
Item | Unit | After treatment |
Breakdown Voltage | kV | ≥75 |
Moisture content | PPM | ≤3 |
Gas content | % | ≤0.1 |
Impurity size | micron | ≤1 (no free carbon) |
IFT | dynes/cm | ≥40 |
Acid value | mg KOH/g | ≤ 0.03 |
Dielectric loss factors | tgδ(90℃) | ≤0.001 |

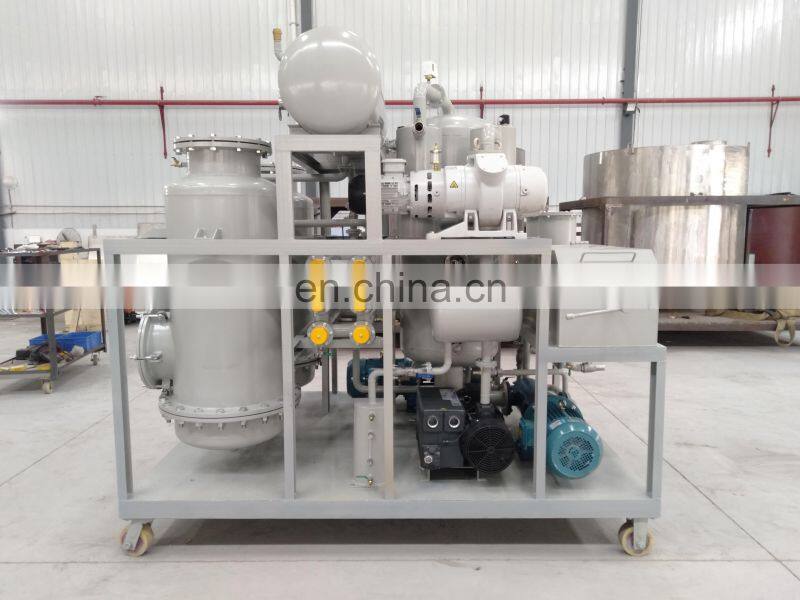

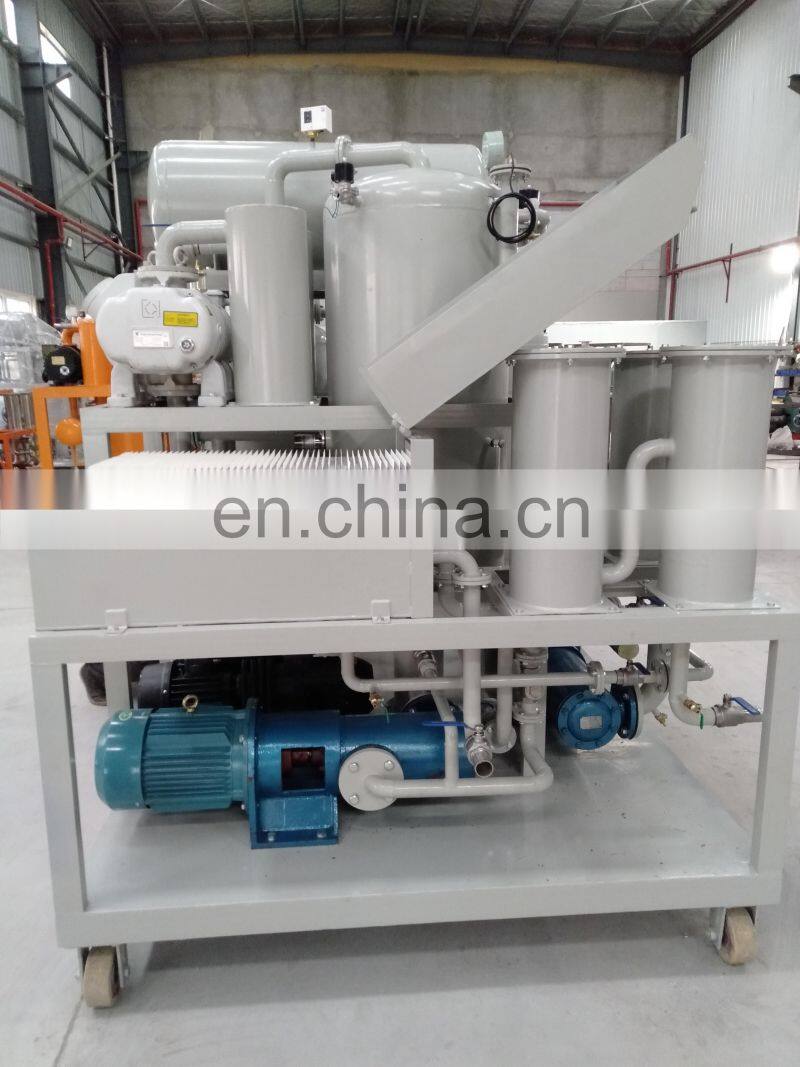

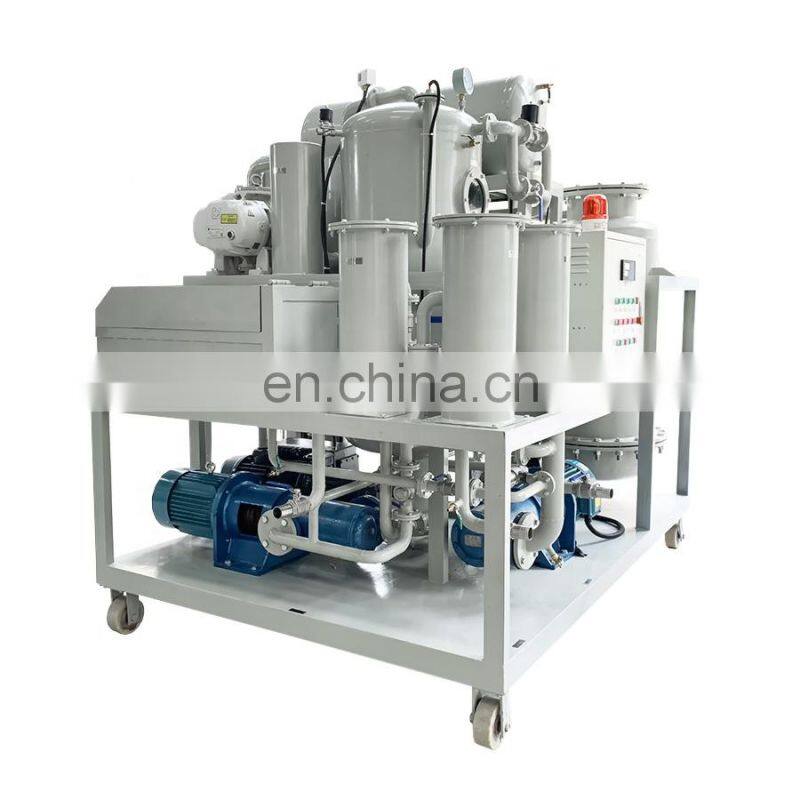

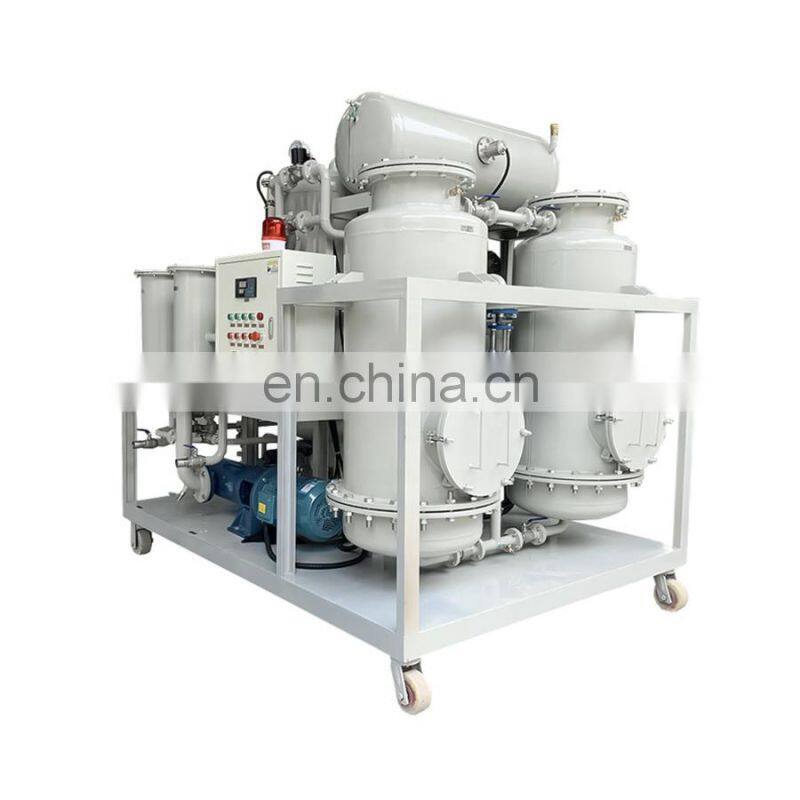

ZYD-I-A transformer oil regeneration system machine adopts Programmable Logic Controller (P.L.C) to achieve the automation of whole treatment process. It is specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. IIt not only provides regular oil purification including degassing, drying and particulate removal but also removes acidity, sludge, other soluble oil decay products, and improves color. For special application, the system also can be mounted on a leak proof base or be installed and operated on a trailer.
- 1. Equipped with PLC fully automatic control system.
2.Unique vacuum dehydration, degassification and regeneration system, adopt stereo-evaporation technology. Duplex 3D stereo-evaporation, eliminating the liquid water quickly
3. UK g technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
4. Advanced infrared liquid-level automatic control system to accomplish fully automatic control.
5. Can be applied for vacuum oiling and drying power transmission equipment.
6. Special additives for depolarization can recover oil color of aged transformer oil to new.
1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier
8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device
MOQ | 1 Set |
Trade Terms | EXW, FOB, CIF, CFR |
Payment Terms | T/T, L/C |
Port of Loading | Any Port of China |
Packing Method | Internaional Standard Wooden Case |
Transportation Method | By Sea, By Land, By Air, By Express |
Supply Capability | 100 Sets/Month |
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
