Product Description

ZY-M Outdoor mobile vacuum transformer oil purifier

Item			Unit	ZY-6	ZY-10	ZY-20	ZY-30	ZY-50	ZY-100	ZY-150
Flow rate			L/min	6	10	20	30	50	10	150
Vacuum degree			MPa	-0.06～-0.095
Working pressure			MPa	≤ 0.4
Temperature range			℃	20 ～ 80
Normal working hour			H	≥ 4000
Continuous working			H	150
Power supply				380V/50HZ/3Ph 5 wire(as customer’s requirement)
Working noise			dB(A)	60	61	63	70	70	75	70
Heating power			kW	9	11	13	15	30	48	58
Total power			kW	9.7	12.5	14.5	16.5	33.5	53	65
Oil outlet/inlet			mm	φ20	25	φ25	φ25	φ32	φ42	φ50
Weight			Kg	150	230	250	270	300	500	700
Size	L	mm	970	1050	1100	1150	1200	1600	1600
		W	mm	630	750	850	900	950	1000	1100
		H	mm	900	1300	1400	1450	1500	1800	1800
Index after purifying	Breakdown voltage	kV	≥70
		Moisture content	PPM	≤5
		Gas content	%	0.1
		Impurity size	μm	≤1 (customizable)
		Value β	%	96

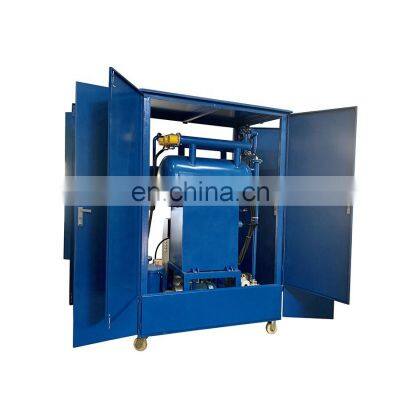

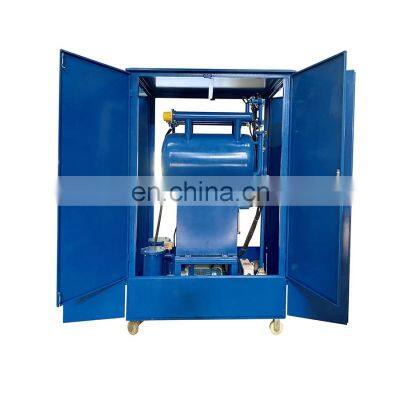

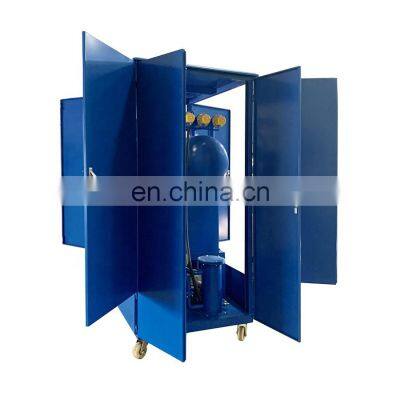

Series ZY-M is outdoor usage mobile type transformer oil purifier equipped with trailer which can move long distance, and equipped with weather proof, dust and water resistance enclosure . It is specially designed for purifying transformer oil, mutual inductor oil, switch oil, capacitor oil in field of power transmission and transformation equipment, electric power department and mining enterprises. The process recovers the oil’s dielectrics strength, removes water, gases and particulate matter etc.

1. ZY-M Series is outdoor usage mobile type machine, small and hi-efficient. Equipped with trailer, it moves easily and is convenient for outdoor use. 2. New type of electric heating system with high efficiency, low heating load, uniform heating, low energy consumption. 3. Multistage precise filtration system; Decontamination technology combining the molecular adsorption filtration and mesh filter. 4. This machine is highly efficient with stereo multistage vacuum system whose efficiency is higher than that of ordinary vacuum oil purifier by 3-5 times. It is able to remove the water, gases and other mechanical impurities out of the insulating oil, and improve the voltage withstanding strength and oil quality, making sure the power equipment works safely. It also has the function of vacuum oiling. 5. Adopting the automatic infrared liquid level control system, automatic constant temperature control system, automatic bubble elimination control system, automatic pressure protection system, automatic interlock protection system and efficient degassing and water removal system to ensure the equipment working safely with high performance. 6. With novel design, compact structure, easy operation and online oil purification. It can work with nobody watching and be used under any environment. 7. Capable of testing the voltage withstanding condition and printing the results. (ZYA series). 8. It can be used together with BZ regeneration device to discolor, remove acid, free carbon and lower the dielectric loss. (ZYB series)

Related Products

1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier

8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
