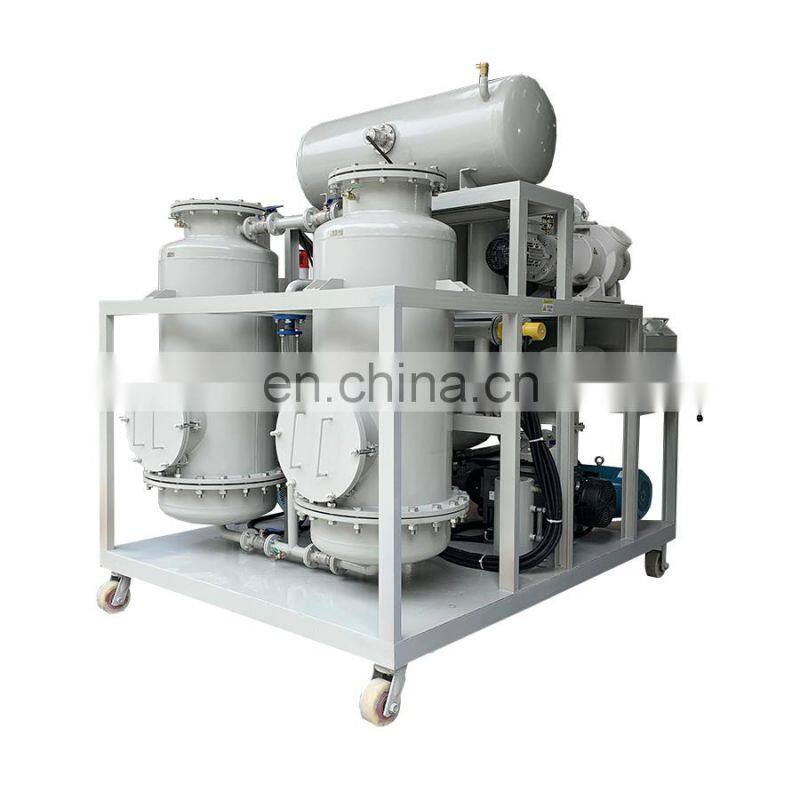

Transformer Oil Regeneration Plant Movable Transformer Oil Filter
- T/T Credit Card
You May Like
-
ZY Series Portable Mobile Transformer Oil Purification Machine Mobile Type Transformer Oil Purifier
-
Factory Sale ZY-20 Transformer Oil Purifier Portable High Vaccum Insulating Oil Purifier
-
ZYD High Efficiency Double Stage Vacuum FR3 Oil Purifier
-
Outdoor Oil Purifier ZYD Transformer Dielectric Oil Filtering Machine to Reach 3PPM Moisture
-
Low Cost Transformer Vacuum Oil Filter Machine For Insulating Oil Recycling
-
Certified Transformer Oil Processing Machine Mobile Vacuum Dehydration Plant
Product Description







Item | Unit | ZYD-I-30 | ZYD-I-50 | ZYD-I-100 | ZYD-I-150 | ZYD-I-200 | ZYD-I-250 | ZYD-I-300 | ||||||||
Flow rate | L/h | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | ||||||||
Working vacuum | MPa | -0.08~-0.099 | ||||||||||||||
Vacuum pressure | MPa | ≤0.3 | ||||||||||||||
Temperature range | ℃ | 20~80 | ||||||||||||||
Power | 3ph 380V 60Hz(or as need) | |||||||||||||||
Working noise | dB(A) | 75 | 75 | 75 | 75 | 80 | 80 | 80 | ||||||||
Heating power | kW | 30 | 30 | 45 | 60 | 75 | 90 | 120 | ||||||||
Total power | kW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | ||||||||
Oil Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | ||||||||
Weight | Kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 | ||||||||
Overall | Length | mm | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 | |||||||
Width | mm | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 | ||||||||
Height | mm | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 | ||||||||
Breakdown Voltage | kV | ≥75 | ||||||||||||||
Moisture content | PPM | ≤3 | ||||||||||||||
Gas content | % | ≤0.1 | ||||||||||||||
Impurity size | micron | ≤1 (no free carbon) | ||||||||||||||
IFT | dynes/cm | ≥40 | ||||||||||||||
Acid value | mg KOH/g | ≤ 0.03 | ||||||||||||||
Dielectric loss factors | tgδ(90℃) | ≤0.001 | ||||||||||||||

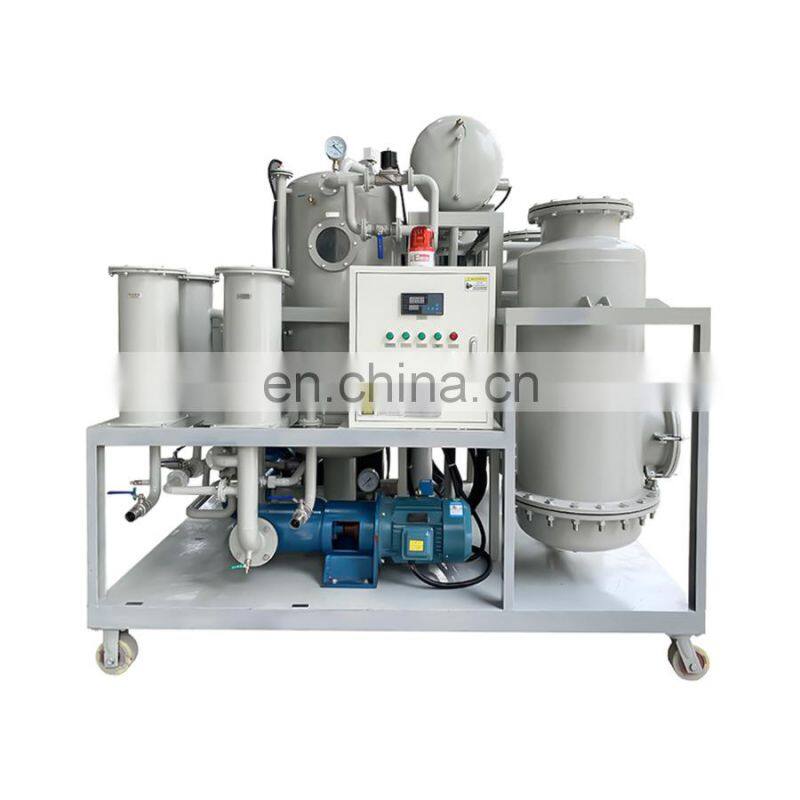

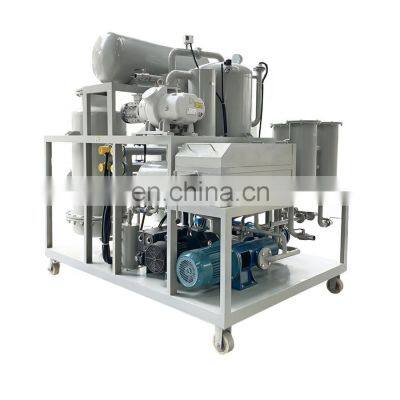

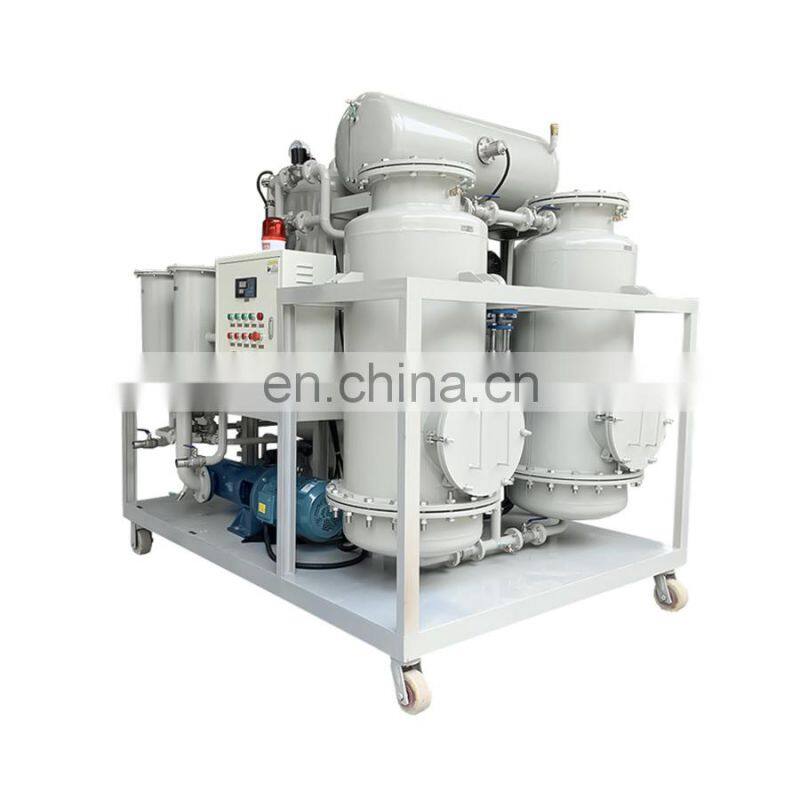

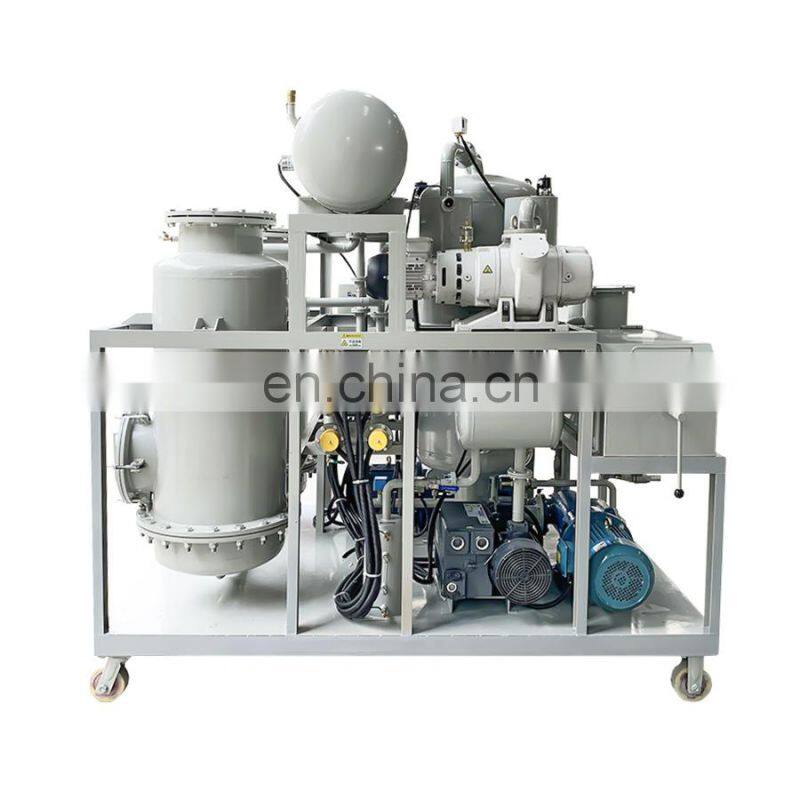

ZYD-I-A transformer oil regeneration system machine adopts Programmable Logic Controller (P.L.C) to achieve the automation of whole treatment process. It is specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. IIt not only provides regular oil purification including degassing, drying and particulate removal but also removes acidity, sludge, other soluble oil decay products, and improves color. For special application, the system also can be mounted on a leak proof base or be installed and operated on a trailer.

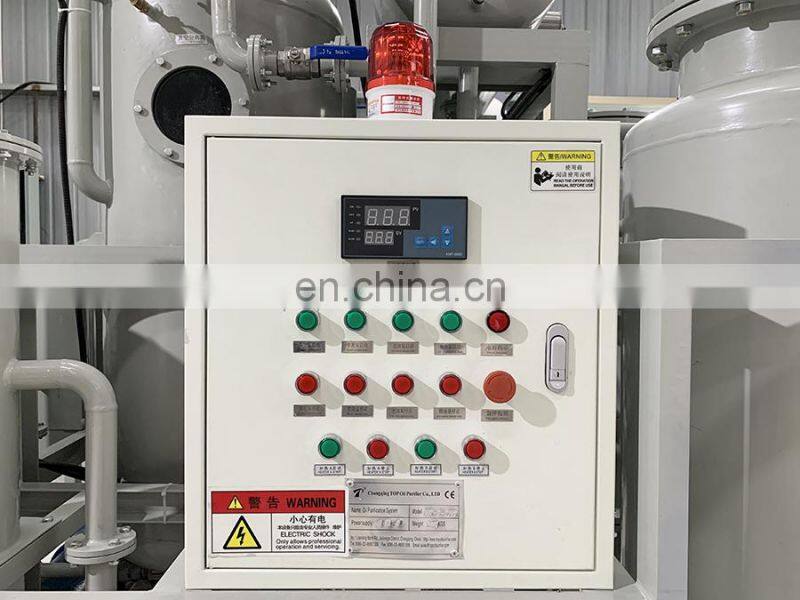

- Equipped with PLC fully automatic control system.

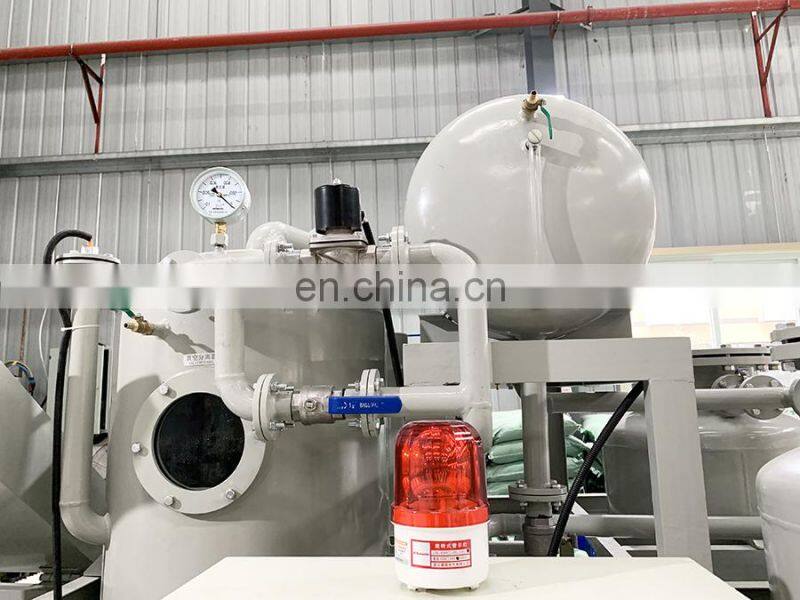

- Unique vacuum dehydration, degassification and regeneration system, adopt stereo-evaporation technology. Duplex 3D stereo-evaporation, eliminating the liquid water quickly.
- UK g technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
- Advanced infrared liquid-level automatic control system to accomplish fully automatic control.
- Can be applied for vacuum oiling and drying power transmission equipment.

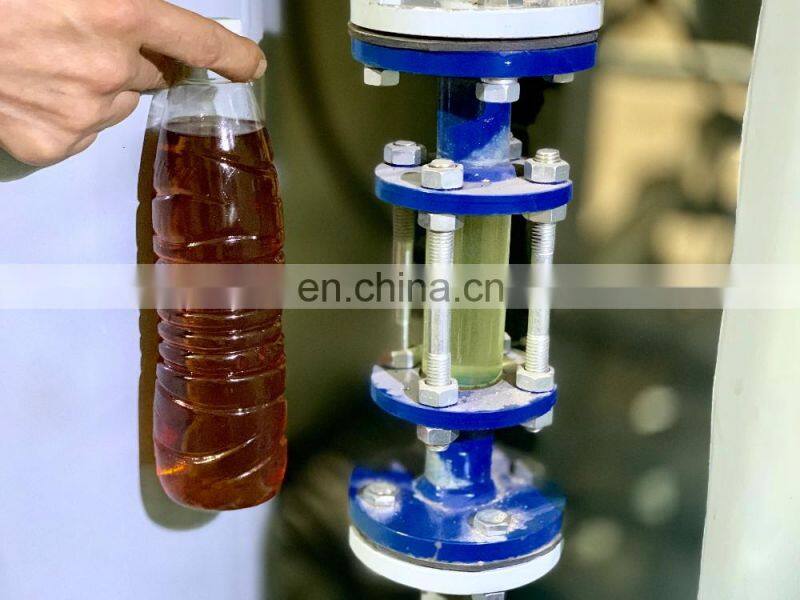

- Special additives for depolarization can recover oil color of aged transformer oil to new.














1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier
8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device





MOQ | 1 Set |
Trade Terms | EXW, FOB, CIF, CFR |
Payment Terms | T/T, L/C |
Port of Loading | Any Port of China |
Packing Method | Internaional Standard Wooden Case |
Transportation Method | By Sea, By Land, By Air, By Express |
Supply Capability | 100 Sets/Month |

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.


Chongqing TOP Oil Purifier Co., Ltd
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.
