Dial Display Izod Pendulum Hammer Charpy Impact Testing Machine for Strength Test

Dial Display Izod Pendulum Hammer Charpy Impact Testing Machine for Strength Test thumbnail-1
Dial Display Izod Pendulum Hammer Charpy Impact Testing Machine for Strength Test thumbnail-2
Dial Display Izod Pendulum Hammer Charpy Impact Testing Machine for Strength Test thumbnail-3
Dial Display Izod Pendulum Hammer Charpy Impact Testing Machine for Strength Test photo-1
Dial Display Izod Pendulum Hammer Charpy Impact Testing Machine for Strength Test photo-2
Dial Display Izod Pendulum Hammer Charpy Impact Testing Machine for Strength Test photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Dongguan Hongjin Test Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

Application

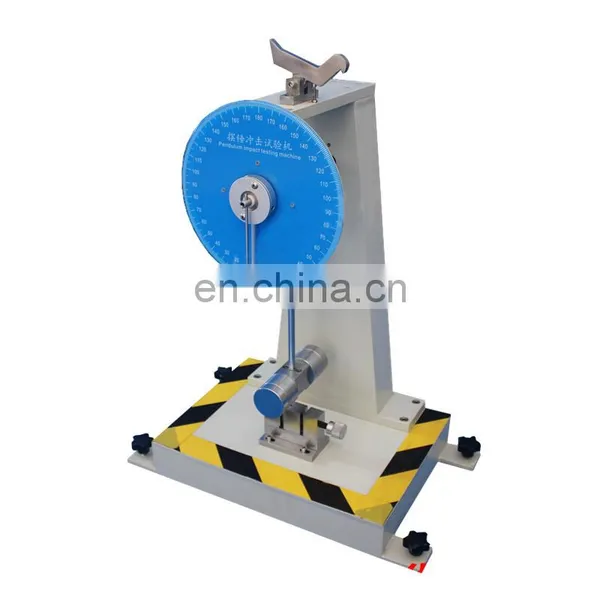

Dial Display Plastic Charpy Impact Testing Machine is pointer dial, electric hammer block release.Application: hard plastic, fiber reinforced composite materials, glass fiber reinforced plastic, ceramic, asbestos etc. nonmetal materials for impact test.

Implementation standards:

1. Products meet ISO179, 180, GB / T1043, 1843, ASTM D256, JB8762, JB8761, ISO9854, GB18743 and other standards. 2.The pendulum impact tester conforms to the international standard ISO180-1992 "Determination of impact strength of plastic-hard material cantilever beams"; 3. National standard GB / T1843-1996 "impact test method for rigid plastic cantilever beams", machinery industry standard JB / T8761— 1998 "Plastic Cantilever Impact Tester".
Impact speed
3.5M/SET(11T/SEC)
Pendulum energy
2.75J, 5.5J, 11J
Pendulum lifting angle
150 °
Impact end to axis distance
32.7cm
Distance from impact blade to upper plane of jaw
22 ± 0.2mm
Blade radius
R = 0.8 ± 0.2mm
