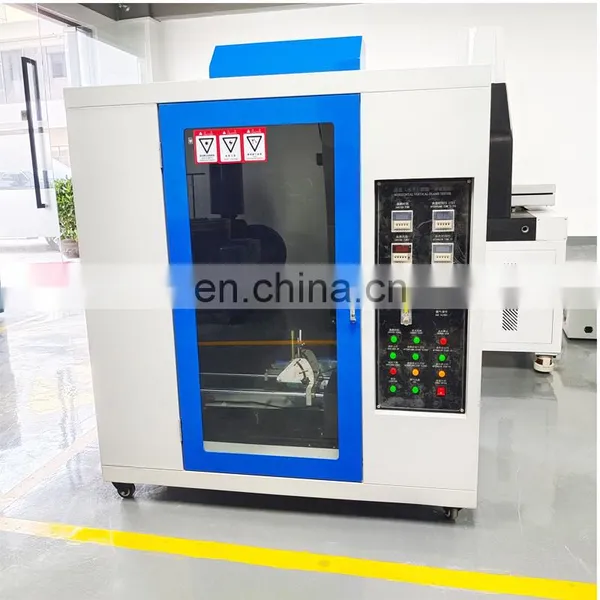

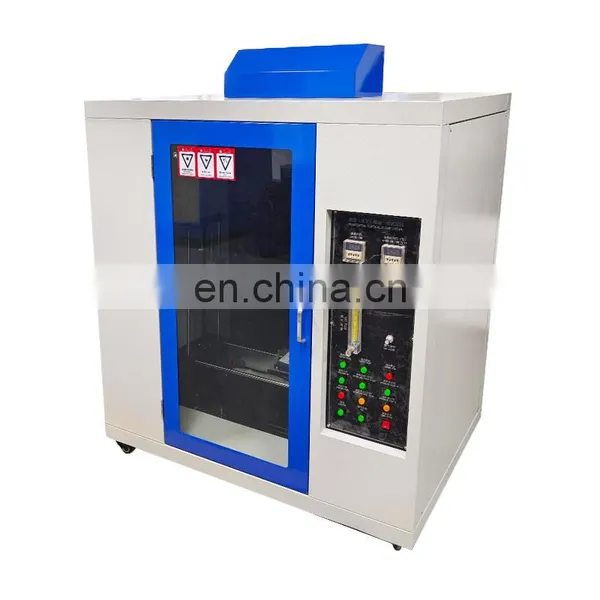

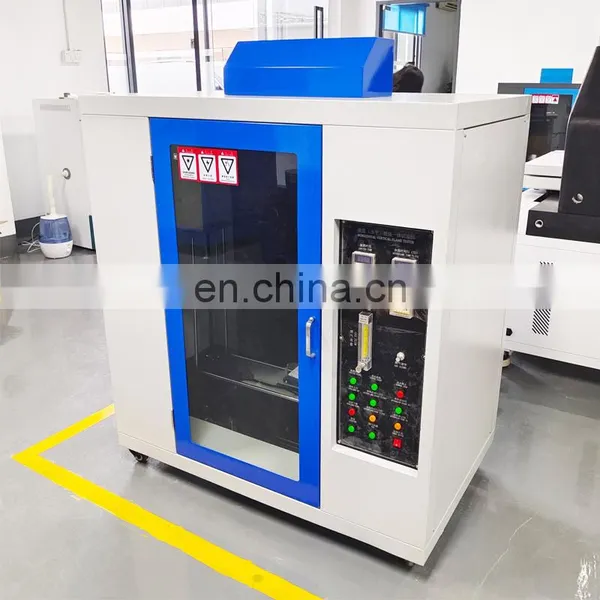

Horizontal Vertical Burning Combustion Flame Test Chamber Flammability Tester For Plastic
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Electric Needle Flame Testing Machine Lab Needle Flame TesterNegotiableMOQ: 1 -
High Accuracy Liquid Density Balance Electronic Hydrometer Digital MeterNegotiableMOQ: 1
-
Hot Electronic Milk Alcohol Digital Water Liquid Solid Gravimeter Densimeter Densitometer Density Tester Meter Analyzer PriceNegotiableMOQ: 1
-
Factory Density Meter Gold Purity AnalyzerNegotiableMOQ: 1
-
HDT Vicat Softening Point Temperature Tester Price For Plastic MaterialNegotiableMOQ: 1
Product Description
Product introduction:

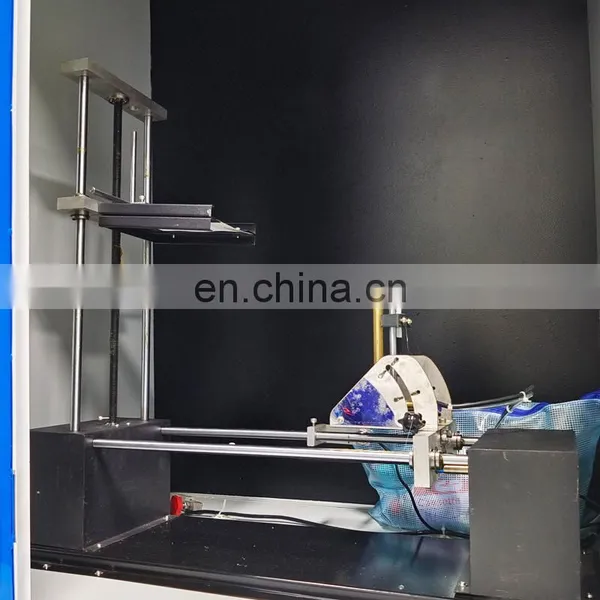

1. The horizontal and vertical burning test mainly refers to UL 94-2006, UL1581UL13UL444UL1655CAS FT-1., IEC 60695-11-4, IEC 60695-11-3, GB/T5169-2008 series and other standards Adopt a Bunsen burner of the specified size and a specific gas source (methane or propane), according to a certain flame height and a certain flame angle, the horizontal or vertical state of the test sample is regularly burned several times. The duration and length of ignition and burning are used to assess the flammability and fire hazard.
2. UL94 horizontal and vertical combustion tester is mainly used for grading assessment of the flammability of V-0, V-1, V-2, HB, and 5V materials. Applicable to the research, production and quality inspection departments of electrical and electronic products and their components such as lighting equipment, electronic wires, low-voltage electrical appliances, household appliances, machine tool appliances, motors, power tools, electronic instruments, electrical meters, electrical connectors and accessories , It is also suitable for insulation materials, engineering plastics or other solid combustible materials industries. Flame resistance test of organic materials such as wire and cable insulation coating materials, printed circuit board materials, IC insulators, etc. During the test, place the test piece on the top of the fire, burn for 15 seconds and extinguish for 15 seconds, and check the burning situation of the test piece after repeating the practice.
Specification
item |
value |
Customized support |
OEM, ODM, OBM |
Power |
Electronic |
Test inclination angle |
0°, 20°, 45° 65.90 manual switch |
Flame height |
adjustable from 20mm ± 2mm to 180mm ± 10mm |
Flame application time |
0-999.9s±0.1s adjustable |
After flame time |
0-999.9s±0.1s, |
Counter |
0-9999 |
Flow pressure |
with flow meter (gas) |
Chassis material |
paint/stainless steel |
Studio volume |
0.5 cubic meters (can be customized) |
Test background |
black background |
Dimensions (Lx Wx H) |
105 cm x 65cm x 135cm (stainless steel); |
Packing & Delivery
Clean the machine first, and then package with film paper and foam paper. It is best to export wooden boxes according to the size
