FD200 200kgs Food Freeze Dryer Machine for Commercial Rapid Drying Suit Food Fruit Vegetables

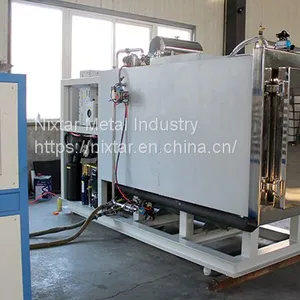

FD200 200kgs Food Freeze Dryer Machine for Commercial Rapid Drying Suit Food Fruit Vegetables photo-1

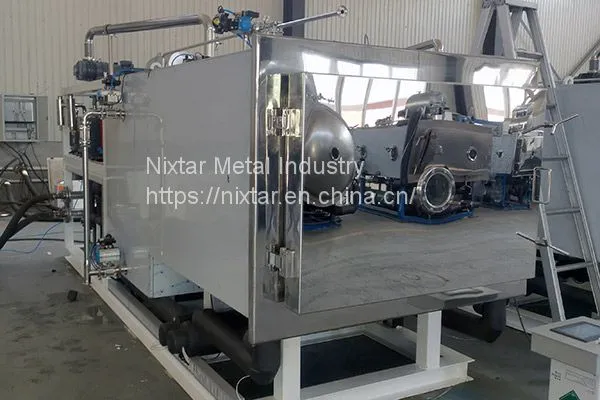

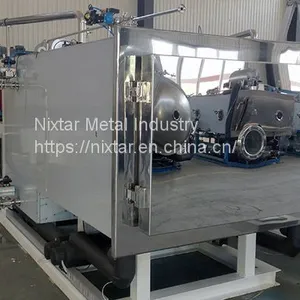

FD200 200kgs Food Freeze Dryer Machine for Commercial Rapid Drying Suit Food Fruit Vegetables photo-2
FD200 200kgs Food Freeze Dryer Machine for Commercial Rapid Drying Suit Food Fruit Vegetables photo-3
US$ 40000 - 90000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Nixtar
Place of Origin:
China
Model Number:
FD200
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Brand Name Nixtar
Place of Origin China
Model Number FD200
Type Dryer
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 Months
Weight 8.5T
Dimension(L*W*H) 6500*1700*2800mm
Condition New
Voltage 380V/50Hz/3P
Power(W) 45Kwh

NiXTAR FD series food freeze dryers are commercial units mainly use for food freeze drying. Rapid drying cycle and industrial high capacity. When we design the machines, we care your long-term benefit, designed to deliver and to last, guarantee your high quality freeze drying at lowest cost.

There are 2 kinds of machine structure: FD50~FD300 are medium capacity freeze dryers mainly for commercial areas, the machine come with integrated structure, plug and play deliver; FD300~FD2000 are large freeze drying plant mainly for industry mass production, deliver by pieces, need Nixtar engineers install and debug.

We deeply know that freeze dry systems cannot be compromised. Your lyophilization plant have to be solid and energy saving to reduce your freeze drying cost. In another hand is increase your competitiveness in market. NiXTAR uses its knowledge in the field and help your business health growth, our cutting-edge technologies guarantee your food freeze drying solution is economic, energy saving, labor saving and time saving.

Models and Technical Parameters:


Model FD50 FD100 FD200 FD300
Trays Area 4.8m2 9.7m2 19m2 30.6m2
No. of Shelves 9+1 9+1 12+1 13+1
Shelf Size 620*910mm 920*1220mm 1230*1320mm 1310*1850mm
Condenser 50kgs/24hrs 100kgs/24hrs 200kgs/24hrs 300kgs/24hrs
Power Install 15kwh 21.5kwh 40kwh 65kwh
Install Size W/1300
L/2800
H/2100mm
W/1500
L/4000
H/2300mm
W/1700
L/5000
H/2500mm
W/2300
L/6500
H/2800mm

1,   FD50 to FD300 Commercial freeze drying machine. Drying chamber can be Rectangular or Cylindrical, Shelves and Trays can be Stainless Steel or Aluminum Alloy.

2,   FD300 to FD2000 Industrial freeze drying machine. Drying chamber is cylindrical, Shelves and Trays are Aluminum Alloy.


Model FD300 FD500 FD1000 FD2000
Trays Area 29.9m2 50.8m2 101m2 206m2
No. of Shelves 8+1 17+1 17+1 17+1
Shelf Modules 2 2 2 4
Shelf Size 570*3550mm 570*2850mm 570*5610mm 630*5100mm
Condenser 300kgs/24hrs 500kgs/24hrs 1000kgs/24hrs 2000kgs/24hrs
Power Install 70kwh 120kwh 220kwh 400kwh
Drying Chamber W/2500
L/4000
H/3500mm
W/3100
L/7000
H/3500mm
W/3100
L/11000
H/3500mm
W/3100
L/18000
H/3500mm


Product Tags: freeze dryer , freeze drying machine , food freeze dryer
