BIF-5T 5000Kgs Flake Ice Machines for Commercial and Industry

BIF-5T 5000Kgs Flake Ice Machines for Commercial and Industry photo-1

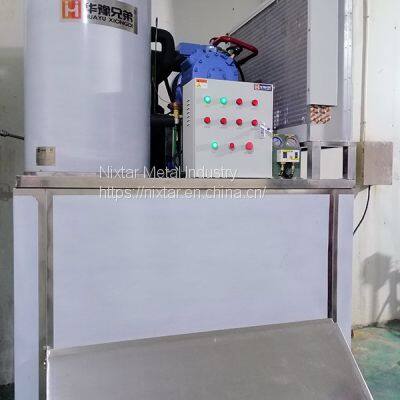

BIF-5T 5000Kgs Flake Ice Machines for Commercial and Industry photo-2

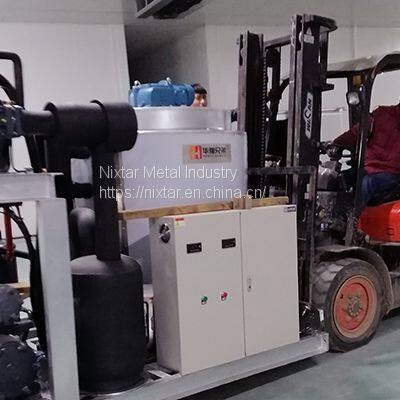

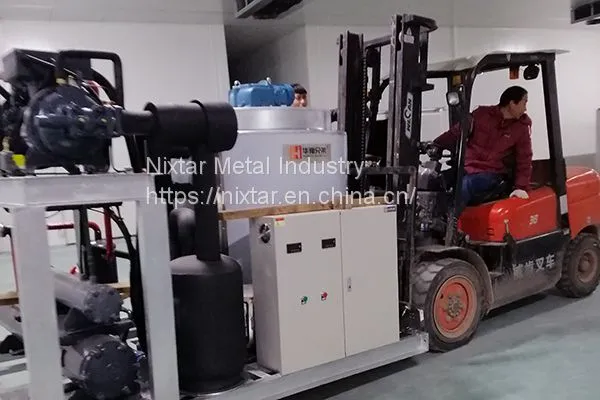

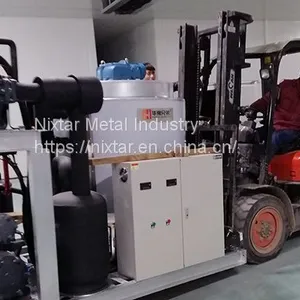

BIF-5T 5000Kgs Flake Ice Machines for Commercial and Industry photo-3
BIF-5T 5000Kgs Flake Ice Machines for Commercial and Industry photo-4
US$ 1000 - 5000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Nixtar
Place of Origin:
China
Model Number:
BIF-5TA
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days
Brand Name Nixtar
Place of Origin China
Model Number BIF-5TA
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 Month
Weight 500kgs
Dimension(L*W*H) 2000*1700*1500mm
Voltage 380V
Condition New
Power(W) 22Kw
Ice Shape Flake Ice
Capacity 5000kgs/24hrs

Ice flakes use a lot in non-food areas, for quick remove heat and reach desired processing temperature. Such as concrete mixing, chemical industry, poultry etc. For these applications, a flake ice machine comes with a carbon steel ice evaporator maybe the most economical solution.

NiXTAR non-food use flake ice making equipment daily capacity from 500kgs to 40tons. Which means, it can satisfy any of your ice demand in commercial and industrial field.

A NiXTAR flake ice machine delivered fully assembled, all necessary components involve the operation of it have well mount on a steel frame. User received and unpacked the machine, only need connect water and electric before ice production.

* a water cooled system also need connect water cooling tower.

The working of ice machine is fully automatic. Electric cabinet is high advanced PLC based, control of the machine you can select either traditional push button type or touch screen module. Both of them have been proved dependable with failure alarm functions.

Technical Parameters:


  BIF-05TA BIF-1TA BIF-2TA BIF-3TA
Capacity 500Kgs/24hrs 1000Kgs/24hrs 2000Kgs/24hrs 3000Kgs/24hrs
Ice Storage 300Kgs 400Kgs 800Kgs 1200Kgs
Power Install 2.4Kwh 4Kwh 8.1Kwh 11Kwh
Ice Machine Size
L*W*H
1280
800
800mm
1300
900
900mm
1500
1100
1100mm
1700
1200
1200mm
Install Size
L*W*H
1280
1080
1850mm
1300
1180
2100mm
1500
1400
2300mm
1700
1600
2800mm
Weight 200kgs 250kgs 430kgs 530kgs
Voltage 220V/380V 220V/380V 220V/380V 220V/380V

  BIF-5TA BIF-10TW BIF-20TW BIF-30TW
Capacity 5T/24hrs 10T/24hrs 20T/24hrs 30T/24hrs
Ice Storage Optional Optional Optional Optional
Power Install 22Kwh 40Kwh 64Kwh 90Kwh
Ice Machine Size
L*W*H
2000
1650
1470mm
2500
1850
1850mm
3800
2100
2300mm
4000
2100
2600mm
Weight 900kgs 1500kgs 2500kgs 3000kgs
Voltage 220V/380V 220V/380V 220V/380V 220V/380V
