SV8 Portable Animals Ultrasound/ Veterinary Ultrasound Machine/vet Handheld Ultrasound Scanner

Name: SV8 Portable Animals Ultrasound/ Veterinary Ultrasound Machine/vet Handheld Ultrasound Scanner
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

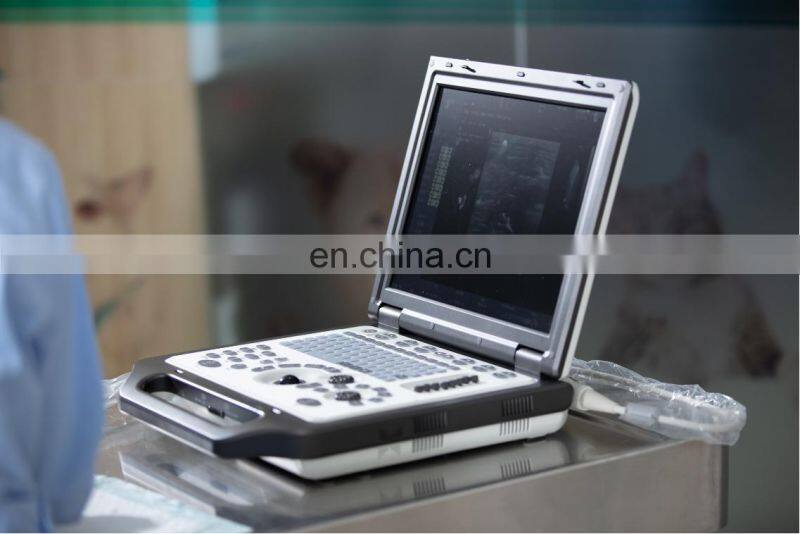

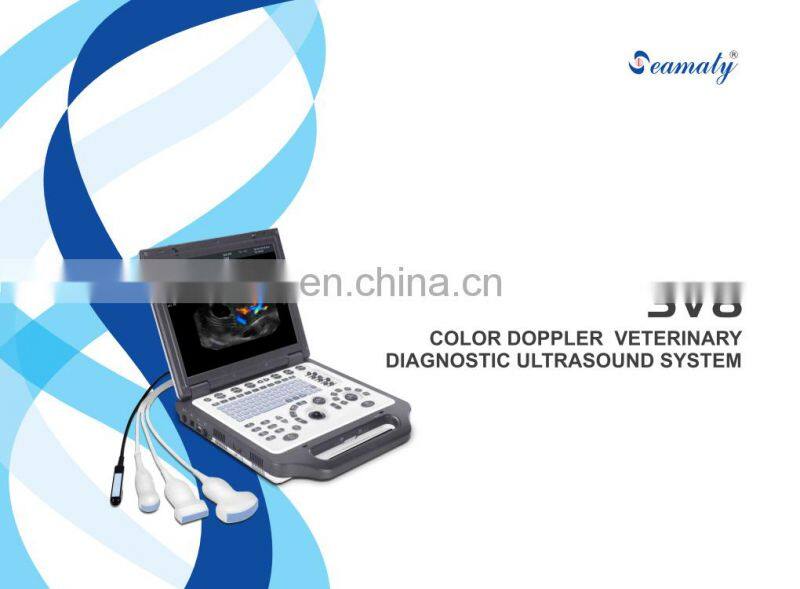

SV8 Veterinary Ultrasound

◆ Full digital beam-former, Digital dynamic focusing, Digital variable aperture and dynamic apodizer, 32 A/D sampling channels are included for receiving and launching channels.

◆ High-density probe and wider frequency band optimize image quality of far and near field.

◆ High resolution LCD monitor, flicker-free, which can reduce the visual fatigue of the operator.

◆ The ergonomic design silicon keyboard with backlit, which is more suitable for the user.

◆ Regulated voltage power is adopted, strong suitability.

Please send inquiry if interested, we will offer more details for you!!!

Function

◆ 1 probe connector, which can be expand to 3 connectors by the probe expansion module.15〞 high-resolution color LCD monitor. ◆ Equipped with more than 4 beam-former function ◆ Equipped with THI (Tissue Harmonic Imaging), and second digital THI function ◆ Equipped with TSI (Tissue Specific Imaging) function ◆ Frequency compound imaging: adjustable under 2D and M modes. ◆ Space compound imaging: adjustable under 2D and M modes with more than 3 levels. ◆ The scanning modes are including 2D (2D ultrasound scanning diagnostic method), M (time motion, M mode diagnostic method), Doppler mode including PW (Pulsed Wave Doppler), CFM(Color Flow Mapping), PDI (Power Doppler Imaging).

Standard Configuration	SV8 Main Unit + Micro Convex / Linear Probe + Battery+DICOM 3.0
Display	15“High Resolution LCD Display
Connector	1 Probe Connector, 3 probes connector extension optional
Weight	6.0kg
Optional Configuration	Mobile Trolley or Carrying Bag
Languages	English, Italian, Portuguese, Russian, Spanish, Deutsch, French
Display Mode	B, 2B, 4B, M, B+M, CFM, PDI, B+PW, B+CFM+PW, B+PDI+PW
Type of Focusing	Dynamic focusing, acoustic lens focusing, launching multipoint focusing
Pre-processing	low noise preamplifier, TGC, filtering, frame average, line average
Character	Date, time, owner name, animal name, device name, user name etc, user-defined annotation table, arrowhead and body marks Measurement Software：Software packages of animal abdomen, Obstetrics, Urology, Cardiology, and small parts; directly form diagnostic report based on measurement results.
Body Mark	37 body marks with probe location
Digital Scan Converter	628 440  24 bits
Size	78 mm（H）×360 mm（W）× 370 mm（L）

Factory

Seamaty has passed ISO 13485:2016 international quality management system certification. We have built cleanrooms for production which meets GMP standard and have built first class laboratories for products testing and inspection. Our factory has introduced a variety of imported equipment with advanced automated production lines, skilled workers and professional quality control team to ensure a high productivity and premium quality in products.

Seamaty has certificates including ISO13485:2021 Qaulity Management System issued by TUV; CE Declaration of Conformity listed by TUV as IVD device; Free Sale Certificate and Patents.

◆Do not use the equipment near devices generating high frequency (such as medical telemeters and cordless telephones). If so, the equipment may malfunction or adversely affect such devices.

◆This ultrasound imaging system, the same as other ultrasound diagnostic devices, is advised to apply within the short period of time under the condition of obtaining enough necessary clinical information. And the power setting is advised to reasonably low enough, as long as the images can be obtained correctly. The heat of probe is no more than 43 C, by enlarging the neighbor interval time, and reducing unit ejecting times.

◆Keep the probe clear. The probe should be clear before checking diferent animals.

◆Finish the diagnosis at the shortest time and at the lowest power.

◆Keep the probe in frozen status when no scanning.

●Do not aim at the animal unless it is necessary. Avoid fixing the probe to the same region of animal for a long period of time.

●Warming: The Ultrasound Imaging System is not suitable for therapy!
