SC LC OTDR Dead Zone Eliminator,Fiber Rings ,Fiber Optic OTDR Launch Cable Box 1km Single Mode 1310/1550nm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiber Cable Cutter Slitter Mid Span Fiber Optical Slitter Cable Cluster/ Cutter Jacket Mid Span Cable StrippingNegotiableMOQ: 1 -
Longitudinal Fiber Optical Coaxial Cable Jacket Stripper SI-01 Outer Optical Fiber Cable Sheath SlitterNegotiableMOQ: 1
-
FTTH Fiber Optic Loose Tube Slitter Wire Stripper Pliers Hand Tool Vertical Fiber Cable Sheath CutterNegotiableMOQ: 1
-
Si-01 Longitudinal Opening Knife Longitudinal Sheath Cable Slitter Fiber Optical Cable Stripper 10-25mmNegotiableMOQ: 1
-
Good Price Fiber Optic Cable Jacket Slitter Longitudnal Cable Sheath Cutter Optical Fiber Stripper SlitterNegotiableMOQ: 1
Product Description

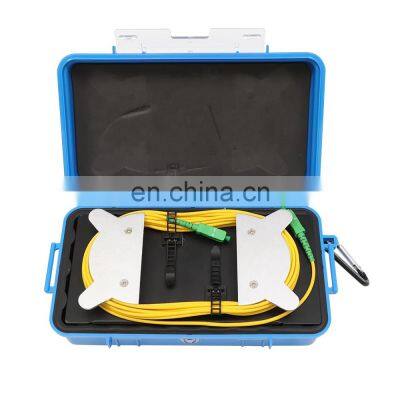

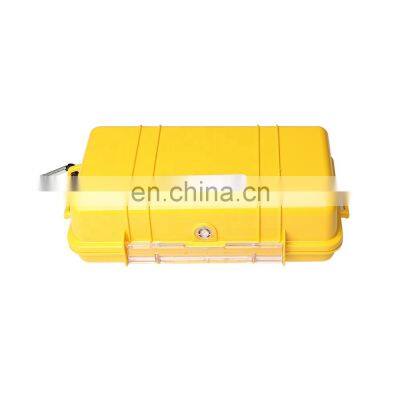

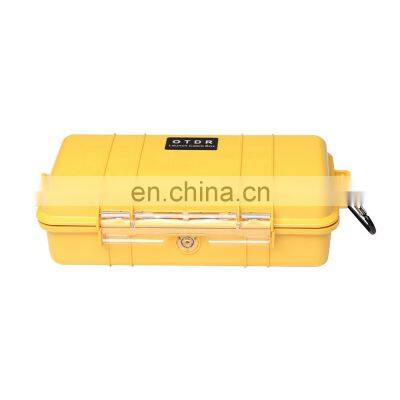

SC LC OTDR Dead Zone Eliminator,Fiber Rings ,Fiber Optic OTDR Launch Cable Box 1km Single Mode 1310/1550nm
Description
Designed to aid in the testing of fiber optic cable when using an OTDR.The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurementuncertainty.Available in many different configurations and fiber lenths.
specifications
1. single-mode or multimode optical fiber
2. length 1-3 km selected at random
3. fiber optic connectors available: FC, LC, SC, ST/PC or APC
2. length 1-3 km selected at random
3. fiber optic connectors available: FC, LC, SC, ST/PC or APC
Parameter
1. The OTDR test extension line, OTDR, OTDR products
2. mainly used to compensate for the OTDR test blind area, central fiber
3. without any fusion joint, small volume, light weight Easy to carry
4. single-mode, multimode ( 62.5/125 )
5. length 500M, 1KM, 2KM... 5KM ( custom )
6. loss less than or equal to 0.5dBm/ km
7. with excellent sealing performance, waterproof and dustproof explosion-proof
2. mainly used to compensate for the OTDR test blind area, central fiber
3. without any fusion joint, small volume, light weight Easy to carry
4. single-mode, multimode ( 62.5/125 )
5. length 500M, 1KM, 2KM... 5KM ( custom )
6. loss less than or equal to 0.5dBm/ km
7. with excellent sealing performance, waterproof and dustproof explosion-proof
Name | SC,LC APC/UPC OTDR Launch Cable |
Fiber Type | Single mode (9/125) |
Cable length | 1 km |
Loss | ≤0.5dBm / km |
Wavelength(nm) | SM 1310/1550 |
Size | 25*15*6.5cm |
Weight | 800g |
